Symmetricom 9611B User Manual

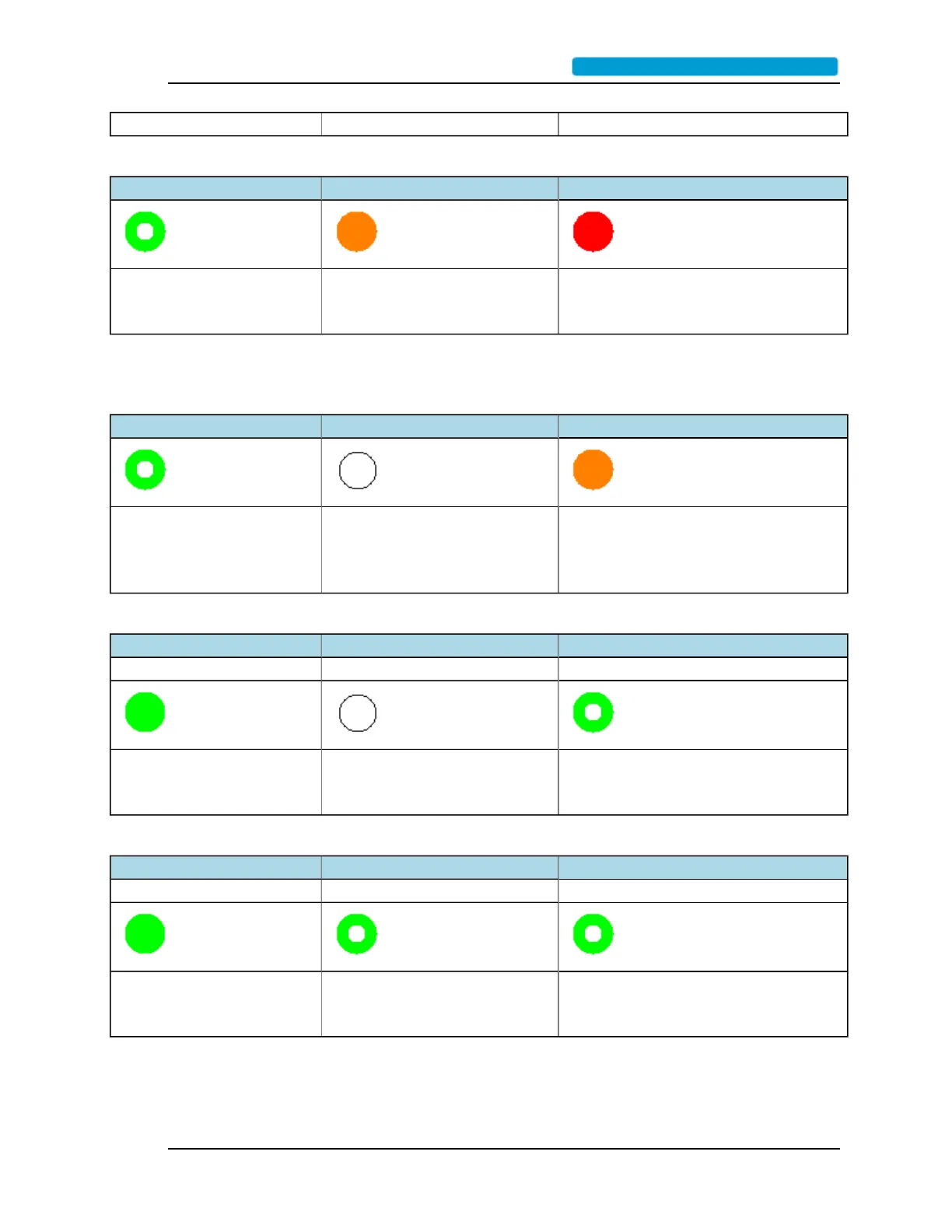

shown as selected.
Press the ALARMbutton
Input A AUTO Input B
Input B has been
switched to the
outputs.
AUTO is still no
longer valid as Input
B is still failed.
Input B is failed
This condition will remain until Input B is restored as a valid signal.
Input B is now restored as a valid signal
Input A AUTO Input B
Input B has been
switched to the
outputs.
AUTO is valid when
the valid signal on
Input B is acknowl-
edged.
Input B is restored, it
was failed but it is now
valid.
Press the Input B button to acknowledge the signal on it is valid
Input A AUTO Input B
Input A has been
switched to the
secondary signal.
AUTO is valid. When
the AUTObutton is
pressed.
Input B is valid and
selected.
Press the AUTO button
Input A AUTO Input B
Input A is valid
and is the sec-
ondary signal.
AUTO is armed on
Input Bthe primary
signal.
Input B is valid and
selected as the primary
signal.
9611B_UserGuide_RevA.pdf.......................................................................... Page 15
