There is no output to the “Mail test” field. That is because mail is tested by sending an e-mail
to the address that you indicated earlier.
Click Finish.
Setup Complete dialog
This screen verifies your configuration of the S100:
• Its time source
• Host name
• System location
• Administrator e-mail
Configuring NTP
To configure NTP, use the NTP Relationships dialog (See “NTP Relationships” on
page 58). Use the dialog to view the NTP status and create the NTP associations.
IRIG-B (v.120,122,123)
Both the D-BNC Signal Breakout Cable and the optional Rubidium oscillator cable provide a
Timecode Input connector. To use IRIG time code as a reference, connect the IRIG signal to
the Timecode Input connector, select IRIG-B (see Figure 3-16
), and click Next.
If you wish to use dial-up as a backup time source to GPS, click the checkbox next to Use
dialup for backup to IRIG-B, then the Next button.
If you do not want to back up your IRIG with dial-up, leave the checkbox unselected, and click
Next.

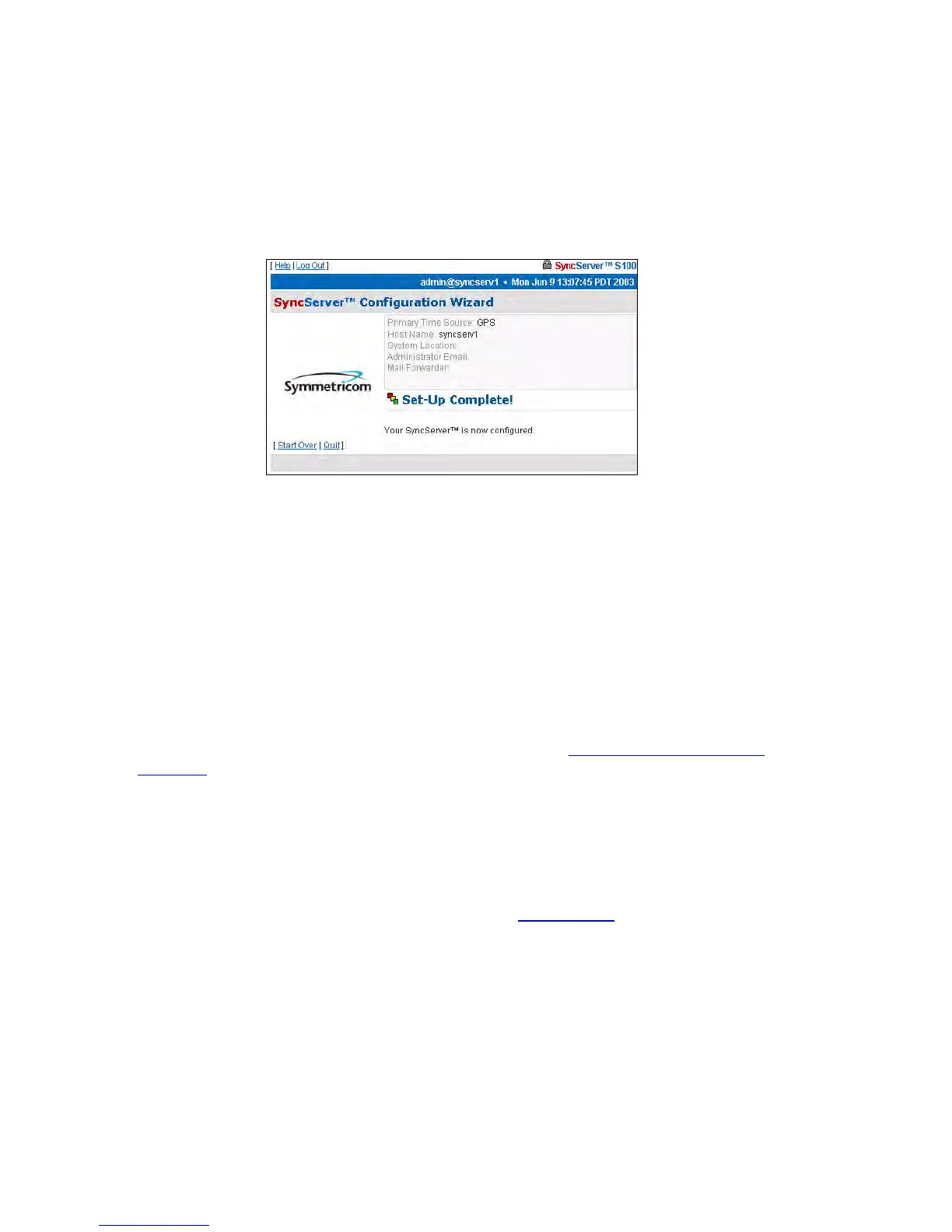

Figure 3-33: Your set-up is complete
