72 S100 User Guide – Rev. D – June 2005
SyncServer S100
Model Information
The following page provides basic data about the bc635/637 PCI board, the timing engine of
the S100.

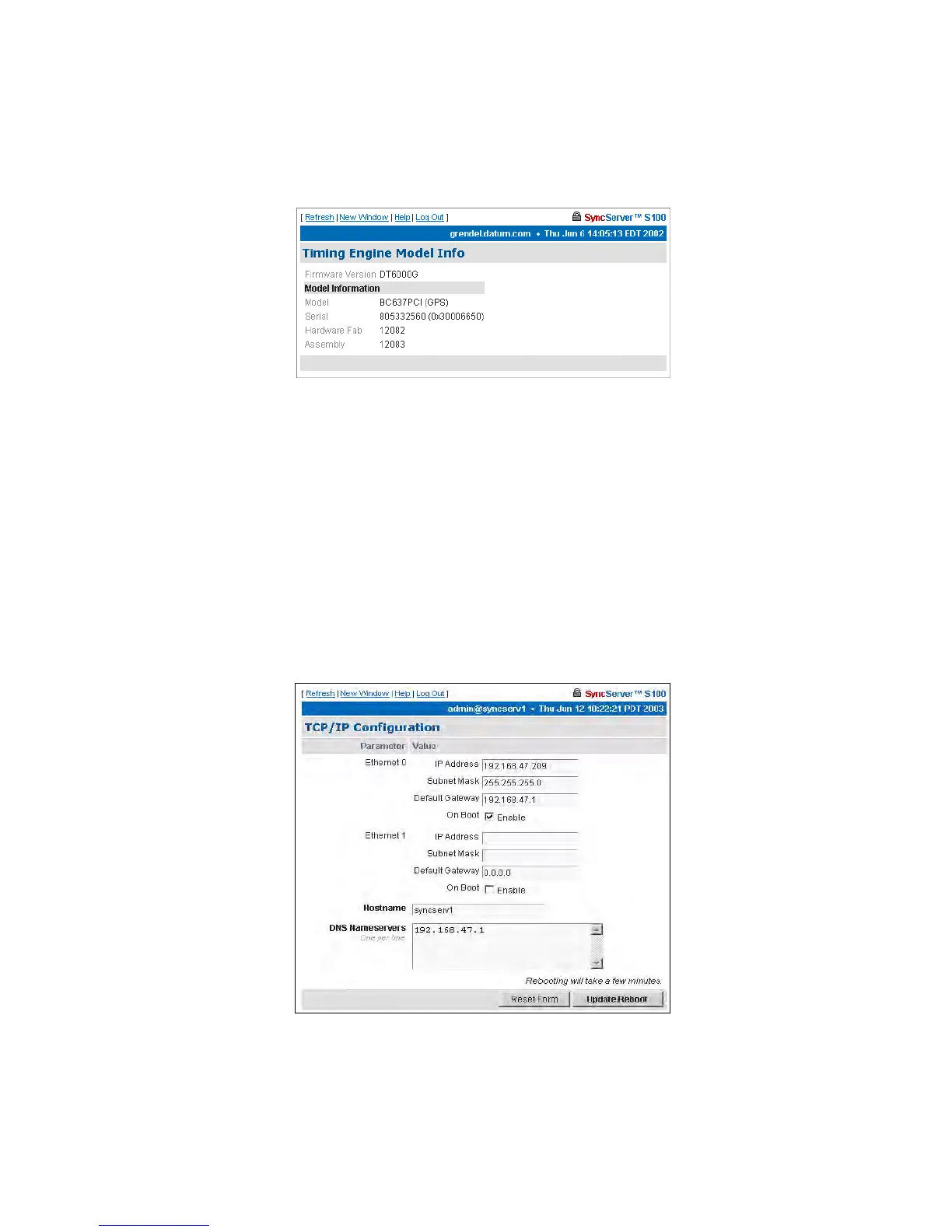

Figure 4-21: Timing Engine Model Information
Networking
Use the following dialogs to configure several parameters of the S100 on your network.
TCP/IP
The following dialog enables you to define the following parameters:
Network Interface - Here, choose the Ethernet port you are using. If there is only one
interface, use eth0, the default. A local loopback refers to a loopback plug inserted in one
Figure 4-22: Configuring TCP/IP
