SECTION 6
WEIGHT AND BALANCE
Feb 25, 2005

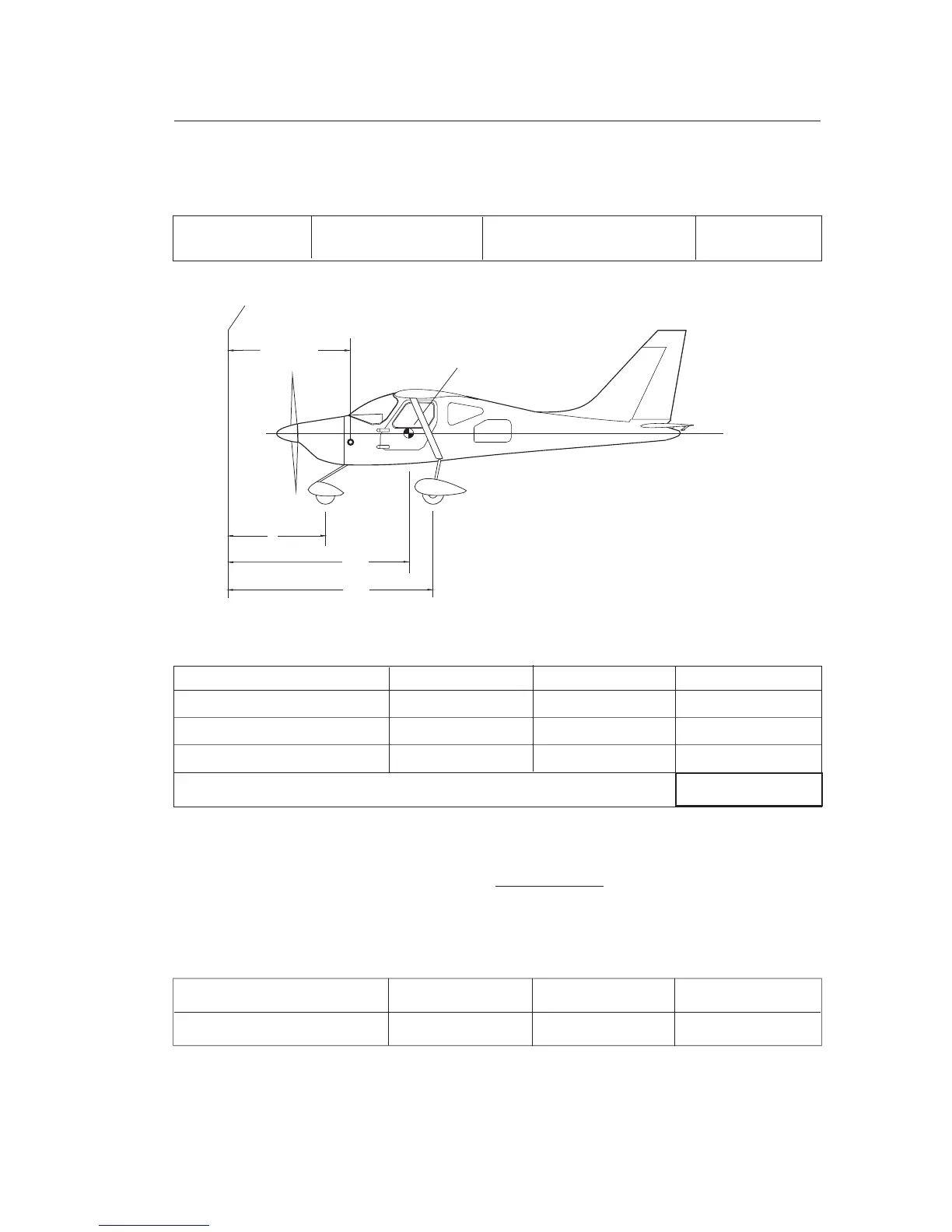

LEVELING DIAGRAM
REFERENCE DATUM
POSITION - SYMBOL
SCALE READING
NET WEIGHT ~lbs
SCALE ERROR
NOSE WHEEL - N
AIRCRAFT TOTAL AS WEIGHED
RIGHT MAIN WHEEL - R
LEFT MAIN WHEEL - L
BASIC EMPTY WEIGHT
ITEM
WEIGHT ~ lbs
C.G. ARM ~ in.
MOMENT ~ in-lbs
AIRCRAFT AS WEIGHED
BASIC EMPTY WEIGHT AND C. G.
Figure 6-1
AIRCRAFT WEIGHING FORM
SERIAL NUMBER:
REGISTRATION
NUMBER:
DATE:
MODEL:
* The standard empty weight includes the required oil level (8quarts) and 2.4 US Gal. unusable fuel.
A
B
X
C.G.
A = 44.2 in.
B = 113.3 in.
60.5 in.
Empry Weight We;
We=N+L+R
Center of Gravity ;CofG
We
CofG =
We
We
N(A) + (R+L)(B)
Empty Weight Me;
Me=WexCofG ;
We
