Abb. 1-1(2)

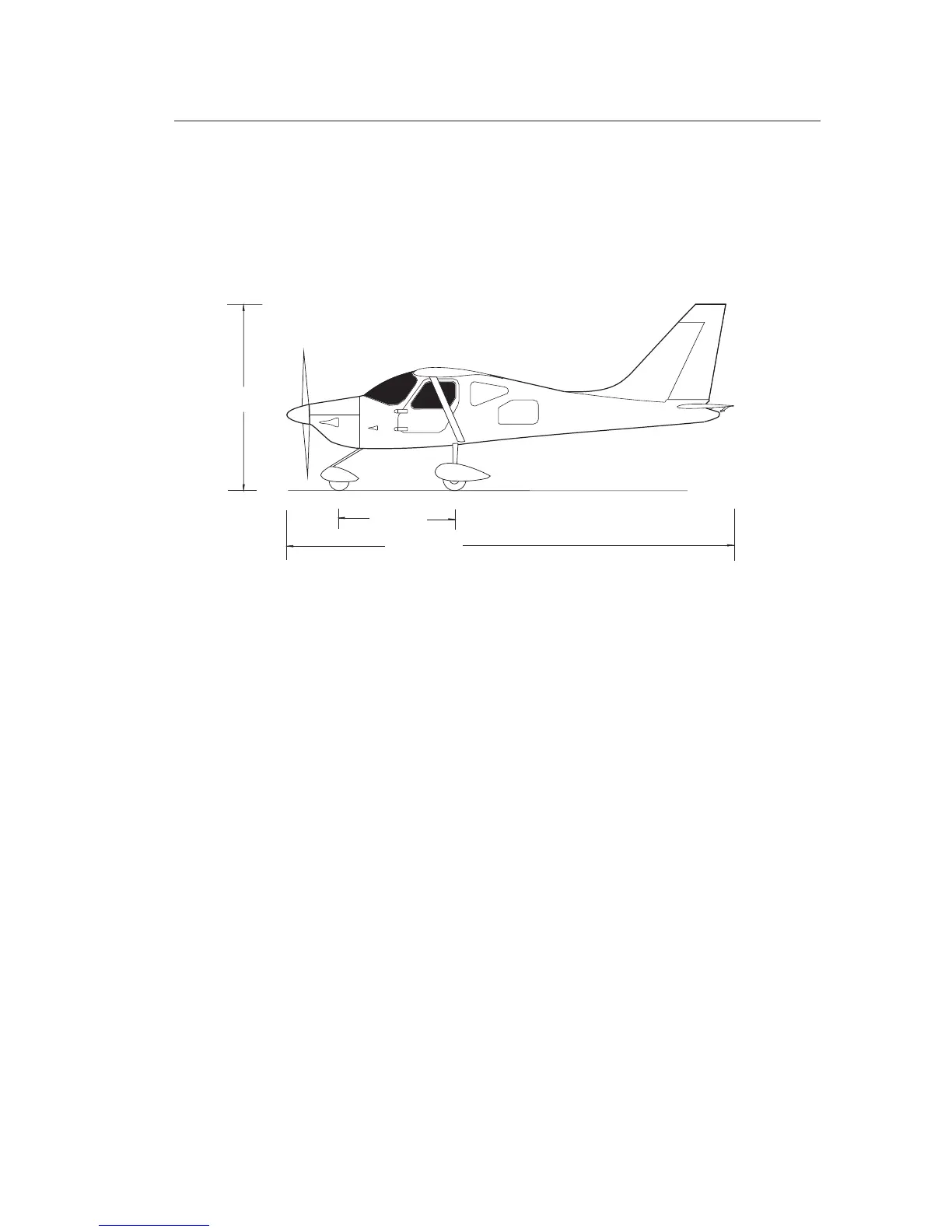

Aircraft Views
1-3
2.82 (9.25)
1.72 (5.67)
6.960 (22.84)
SECTION 1
GENERAL
Notes:
The ground clearance of the propeller at maximum takeoff weight and
in the takeoff attitude is at least 0.180 m (7 in.). Maximum propeller
diameteris1.854m(73in.).
Thewingareais11.93m²(128.4sq.ft.).
A minimum turning radius of 6.6 m (21.7 ft) (Pivot point to the wing
tip) can be achieved.
Control Surface Deflections:
- Aileron Up 23° - Down 17°;
- Elevator Up 21° - Down 20°;
- Rudder Left 21°- Right 21°;
- Trim Tab Up 10° - Down 20°;
- Flaps - Down 0° to 40°.
Feb 25, 2005
