              22/220 Series Controller Application Manual
Hardware List & Descriptions–15
F Output point,
O8~O15
8 output points in 4 sets of 4-pin connector, TB13~TB16. Each point can support 24V/
2A.
G Output point,
O16~O31
16 output points in 4 sets of 8-pin connector, TB17~TB20.Each point can support
24V/0.5A.

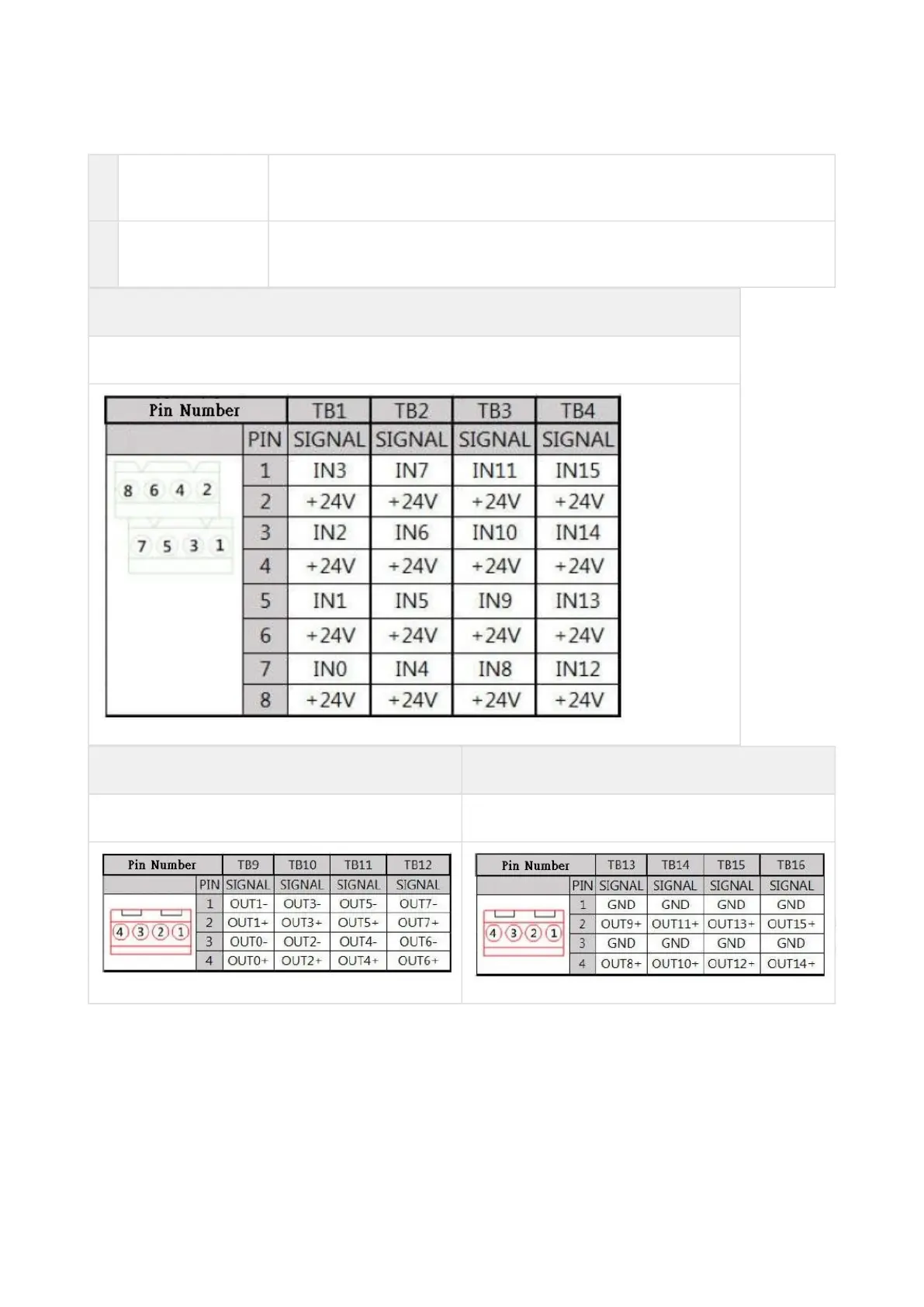

TB1-TB8
8 sets of 8-pin connector for I0~I31, the definition of TB1-TB4 are the same as TB5-TB8.
TB9-TB12 TB13-TB16
O0~O7 output points O8~O15 output points
