2 Controller Descriptions

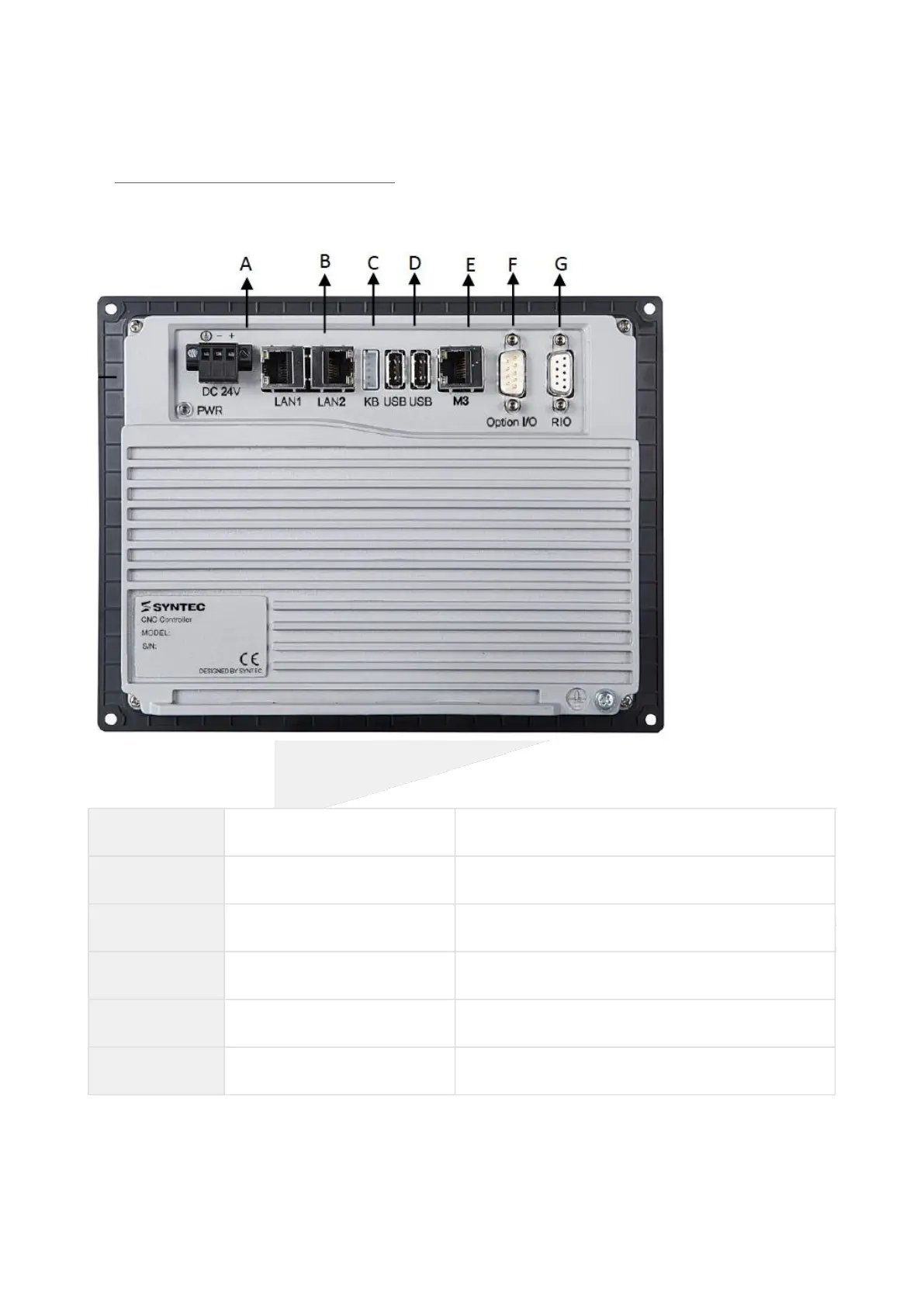

2.1 Controller Back View
2.2 Controller Description
A DC 24V Power input, DC 24V（1A）
B LAN 1 & 2 10/100M Ethernet interface x2
C Keyboard Keyboard
D USB USB 2.0 Host x2
E Mechatrolink 3 M3 serial communication interface
F Option I/O SRI & RS485
