              22/220 Series Controller Application Manual
Hardware List & Descriptions–14
B Key Number & symbol key
C Key Function key
D Keyboard port USB keyboard interface
3.2.4 IO Module

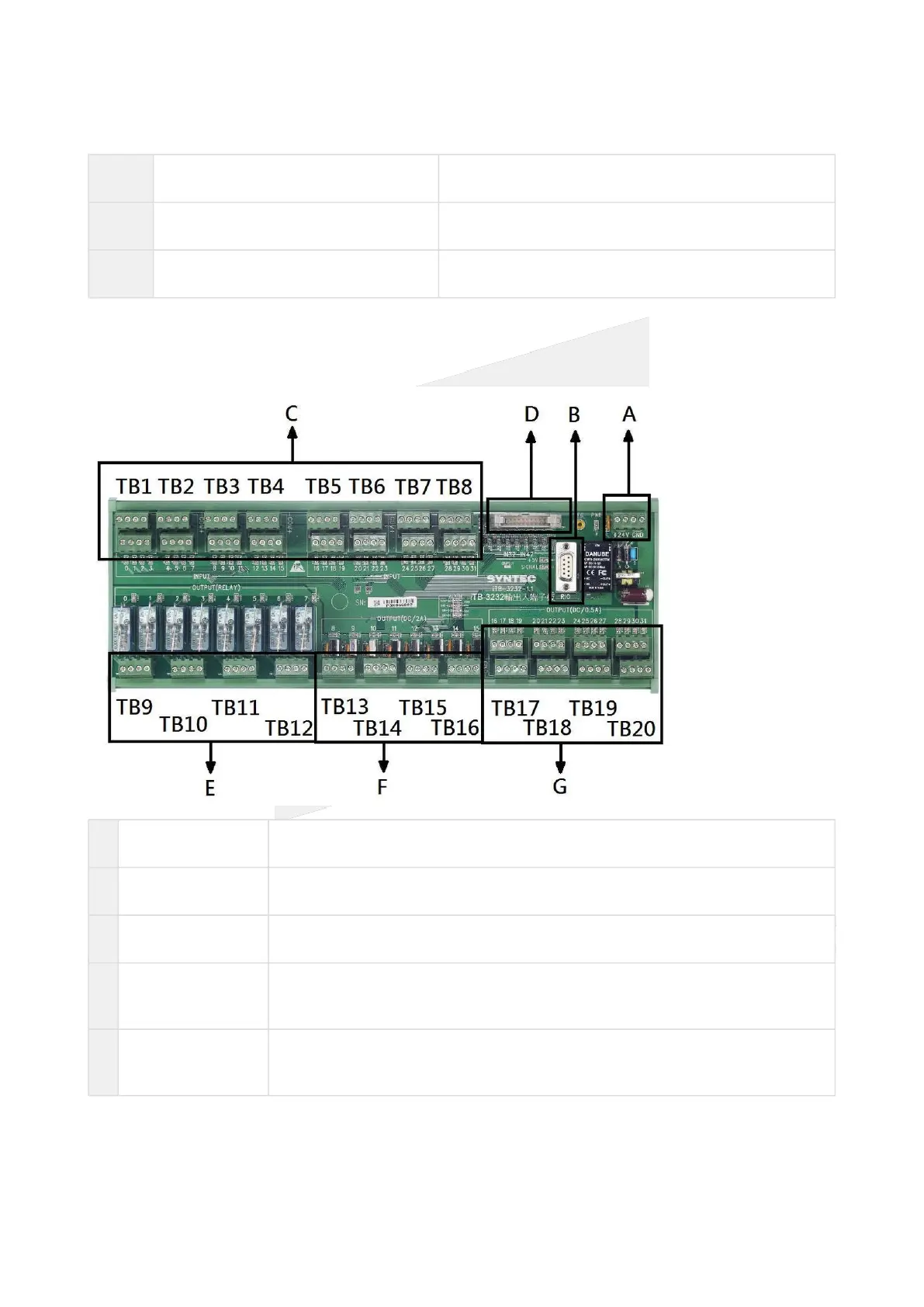

Terminal Board：iTB-3232
A Power supply DC 24V input
B RIO port Connect to RIO port on the controller.
C Input point, I0~I31 32 input points in 8 sets of 8-pin connector, TB1~TB8
D Expanding input
point
Connect to input terminal board for more 16 input points,I32~I47
E Output point,
O0~O7
8 output points in 4 sets of 4-pin connector, TB9~TB12. Each point can bear 24V/16A.
