Syntec 22/220 Series User Manual

机床产品/Machine Tool Products
              –
              22/220 Series Controller Application Manual

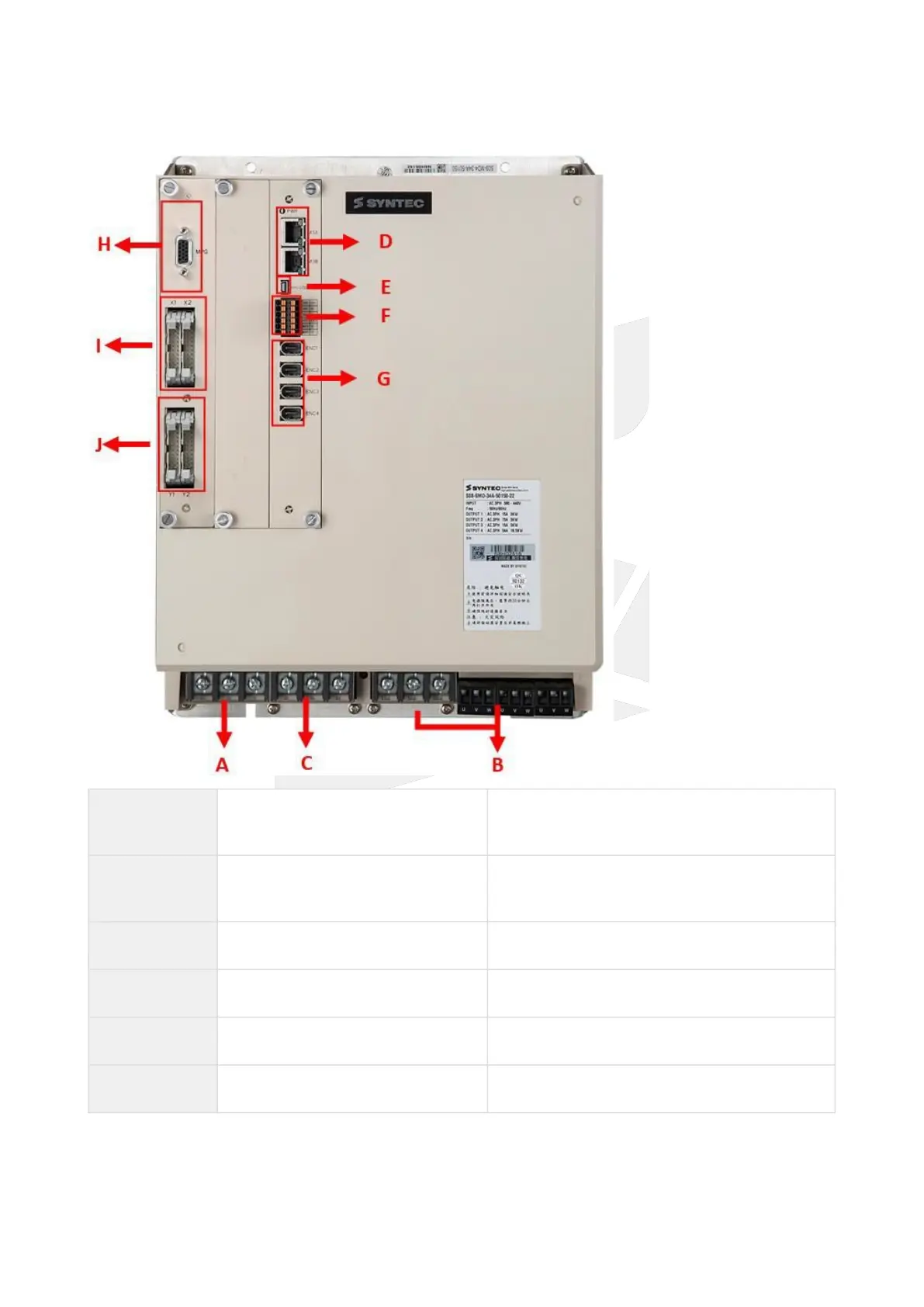

Hardware List & Descriptions–8
A Power supply Connect to 220V or 380V three-phase alternating
current（RST）.
B Power supply for motor Power supply for motor（UVW）, the order is 1st/
2nd/3rd/4th from right to left.
C Brake resistor Brake resistor connector（PB）
D M3 serial communication port Connect to M3 controller and other M3 driver.
E Mini USB port Connect to personal computer.
F I/O signal port Connect to I/O device.

Syntec 22/220 Series Specifications

General

Brand	Syntec
Model	22/220 Series
Category	Controller
Language	English
