I.4 Handling examples

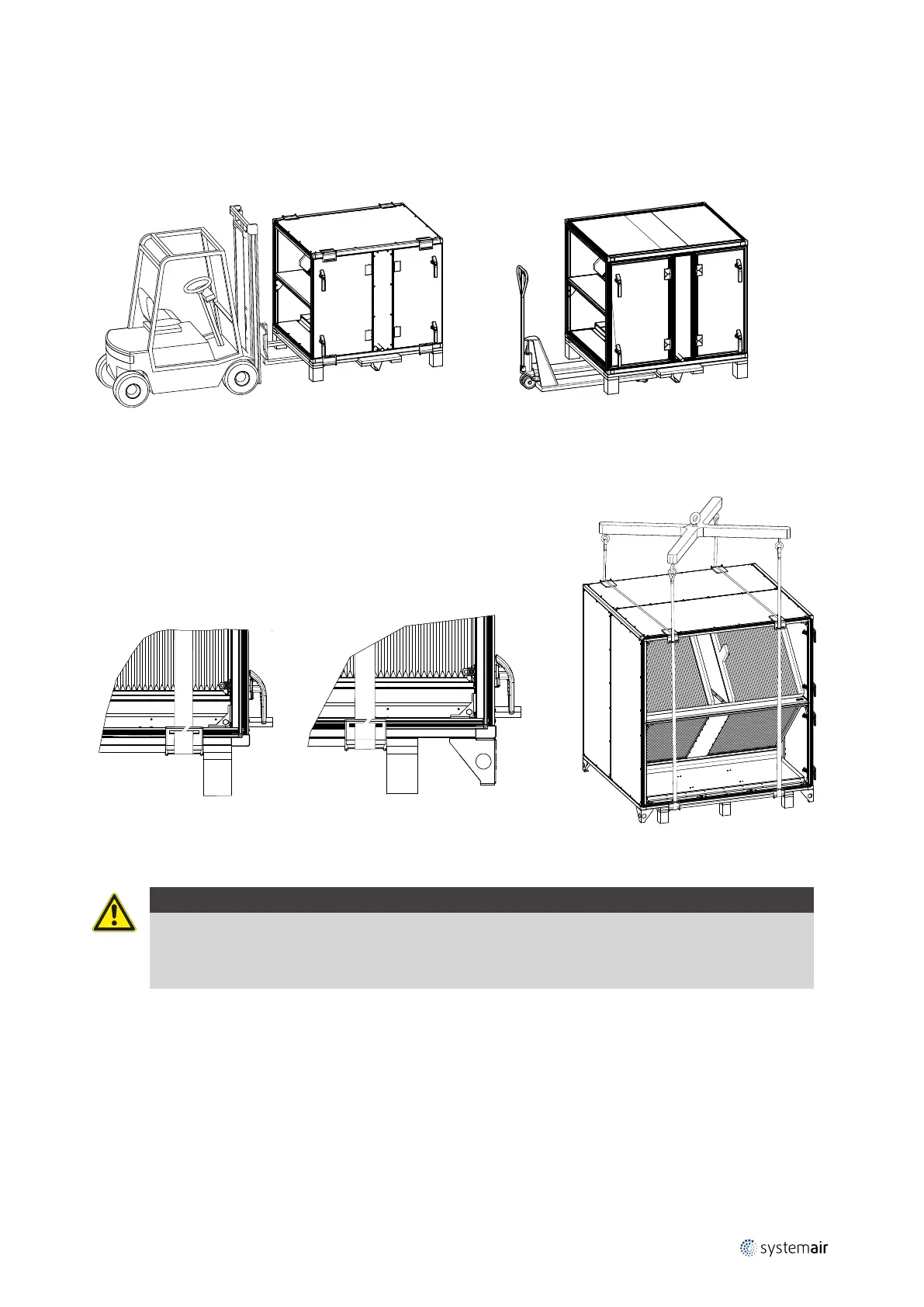

I.4.1 Handling sections which are delivered on pallets
I.4.1.1 Forklift
Sections on a pallets could be lifted and transported on site by a forklift truck or manual forklift.
I.4.1.2 Straps
Lifting straps must be directed through the plastic corners. To avoid slipping, straps must be obtruded in notches of the
plastic corners.
Caution
Use an appropriate lifting beam with a sufficient span to avoid that the straps touch and damage the drip
nose profiles and the inspection side with handles, pipes and accessories – for example manometers,
cabinets, tabs for measuring the pressure. Lifting brackets, beams and straps are not included in the
delivery.
I.4.1.3 Lifting corners
Lifting corners are marked with informative stickers. Mount a shackle in each of the four corners as shown in picture be-
low. Ensure that lifting straps are directed upwards and upper profiles are safeguarded by additional measures during
crane transport (e. g. traverses or wooden spacer beams).
