SystemAir Geniox GO - Base Frame Length 2582 - 4964 [MM] Unit Size 10 - 18

|
57
Length profile type C
Corner A
Adjustable length of
frame — L [mm]
Quantity
Length of profile [mm]
Quantity
1282 – 1364 2 1200 4
1382 – 1464 2 1300 4
1482 – 1564 2 1400 4
1582 – 1664 2 1500 4
1682 — 1764 2 1600 4
1782 — 1864 2 1700 4
1882 — 1964 2 1800 4
1982 — 2064 2 1900 4
2082 — 2164 2 2000 4
2182 — 2264 2 2100 4
2282 — 2364 2 2200 4
2382 — 2464 2 2300 4
2482 — 2564 2 2400 4

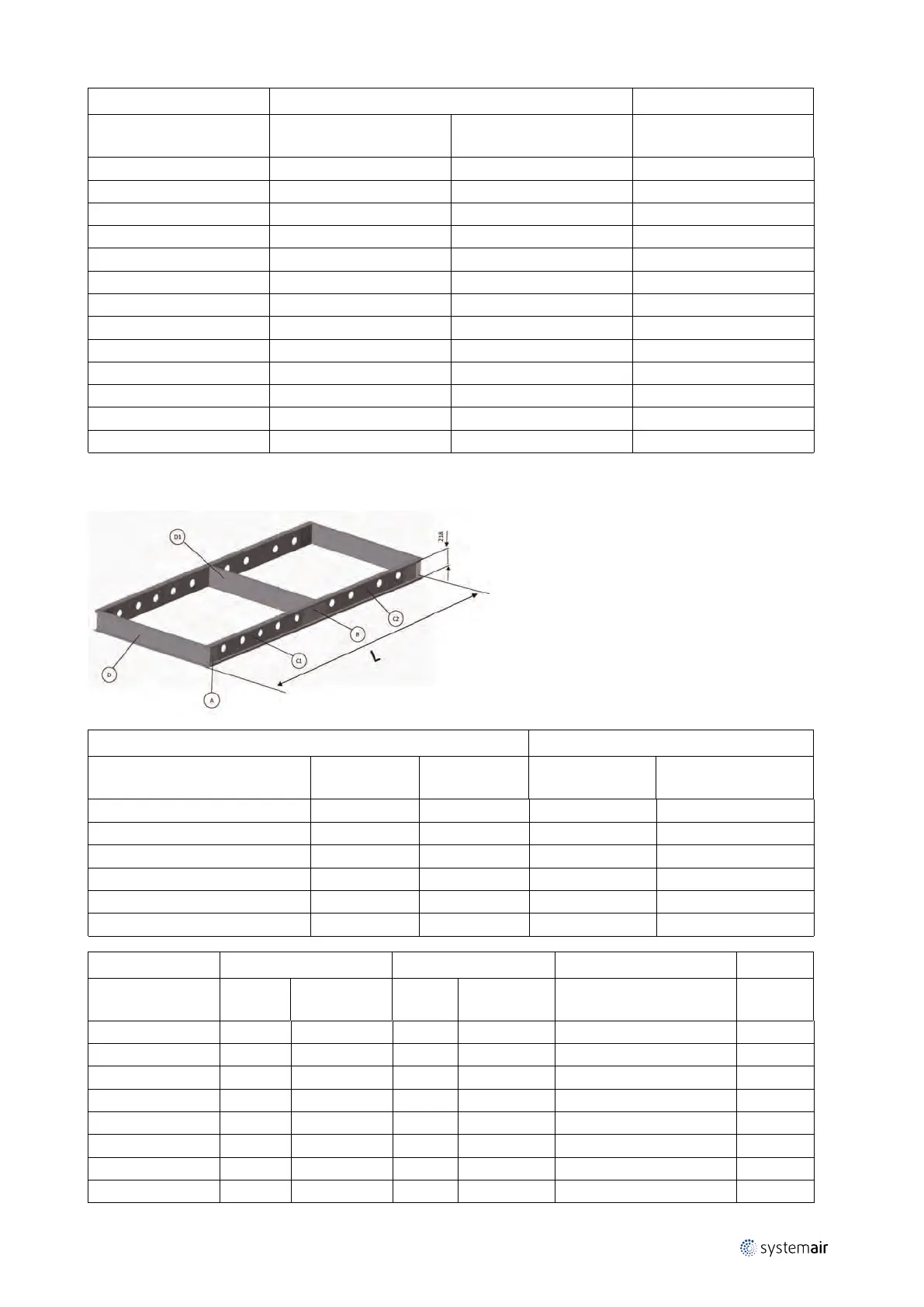

4.2 Base frame length 2582 – 4964 [mm] Unit size 10 – 18
End profile type D (width of base frame)
Middle profile type D1
Unit size Quantity
width of base
frame [mm]
Quantity
Length [mm]
Geniox GO10 2 1070 1 950
Geniox GO11 2 1170 1 1050
Geniox GO12 2 1270 1 1150
Geniox GO14 2 1470 1 1350
Geniox GO16 2 1670 1 1550
Geniox GO18 2 1870 1 1750
Length profile C1 Length profile C2
Corner A
Splice B
Adjustable length
of frame — L [mm]
Quantity
Length [mm]
Quanti-
ty
Length [mm]
Quantity Quantity
2582-2664 2 1200 2 1300 4 2
2682-2764 2 1300 2 1300 4 2
2782-2864 2 1300 2 1400 4 2
2882-2964 2 1400 2 1400 4 2
2982-3064 2 1400 2 1500 4 2
3082-3164 2 1500 2 1500 4 2
3182-3264 2 1500 2 1600 4 2
3282-3364 2 1600 2 1600 4 2
211728 | v7.2
