6.1.3 Mounting roof side profiles and corners

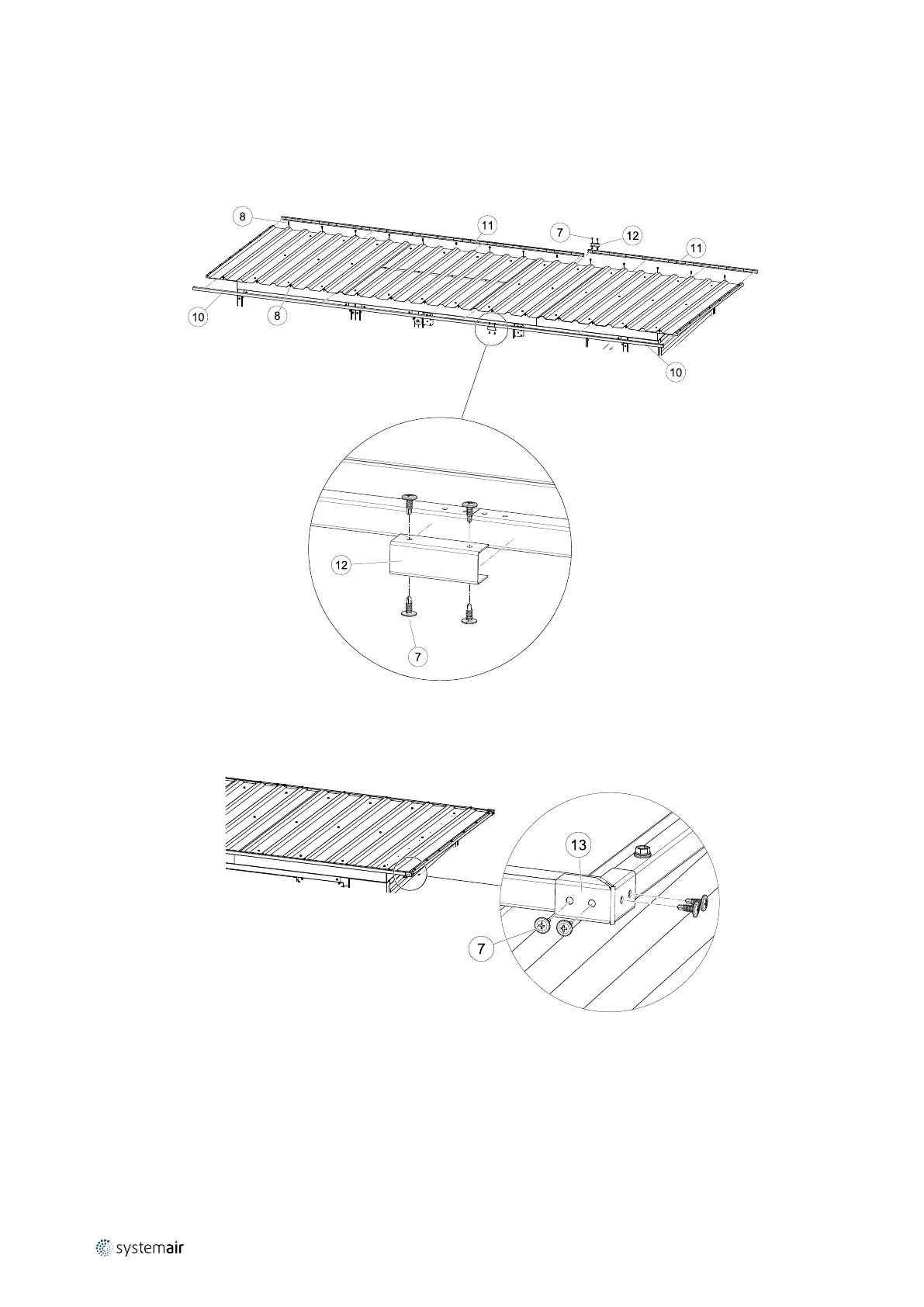

1. Mount front (pos 10) and back (pos 11) roof profiles to cover holes on the trapezoidal roof sheets. Use self drilling
screws with sealing washer (pos 8). Roof profiles can be delivered split into several parts. In that case join these
parts together with roof profile connectors (pos 12). Use self drilling screws (pos 7).
2. Mount 4 pieces of roof profile corners (pos 13) at each corner with self drilling screws (pos 7).
3. Finish installation of steel roof by sealing all sheet and rail joints with sealant to prevent rainwater from passing into
the unit.
Annex 7 Speed control for rotor and assembly of divided rotor
7.1 Speed control type NOVA drive 370 delivered after February 2021
The cabinet with the speed control system for the rotor is installed behind the inspection door in the rotor section.
