SystemAir Geniox GO - Base Frame Length 4982 - 6164 [MM] Unit Size 10 - 18

58
|
Length profile C1 Length profile C2
Corner A
Splice B
Adjustable length
of frame — L [mm]
Quantity
Length [mm]
Quanti-
ty
Length [mm]
Quantity Quantity
3382-3464 2 1600 2 1700 4 2
3482-3564 2 1700 2 1700 4 2
3582-3664 2 1700 2 1800 4 2
3682-3764 2 1800 2 1800 4 2
3782-3864 2 1800 2 1900 4 2
3882-3964 2 1900 2 1900 4 2
3982-4064 2 1900 2 2000 4 2
4082-4164 2 2000 2 2000 4 2
4182-4264 2 2000 2 2100 4 2
4282-4364 2 2100 2 2100 4 2
4382-4464 2 2100 2 2200 4 2
4482-4564 2 2200 2 2200 4 2
4582-4664 2 2200 2 2300 4 2
4682-4764 2 2300 2 2300 4 2
4782-4864 2 2300 2 2400 4 2
4882-4964 2 2400 2 2400 4 2

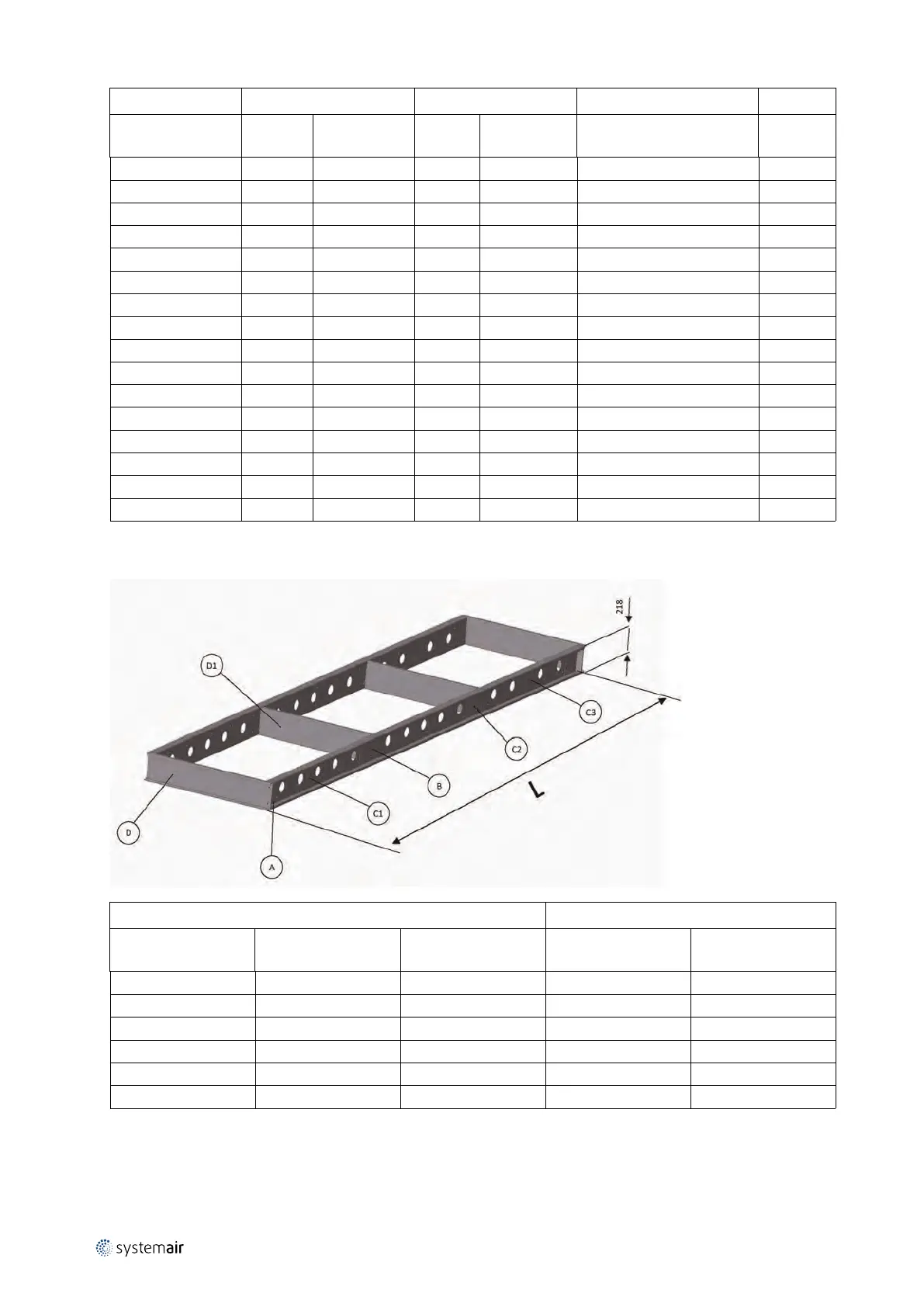

4.3 Base frame length 4982 – 6164 [mm] Unit size 10 – 18
End profile type D (width of base frame)
Middle profile type D1
Unit size Quantity
width of base frame
[mm]
Quantity
Length [mm]
Geniox GO10 2 1070 2 950
Geniox GO11 2 1170 2 1050
Geniox GO12 2 1270 2 1150
Geniox GO14 2 1470 2 1350
Geniox GO16 2 1670 2 1550
Geniox GO18 2 1870 2 1750
211728 | v7.2
