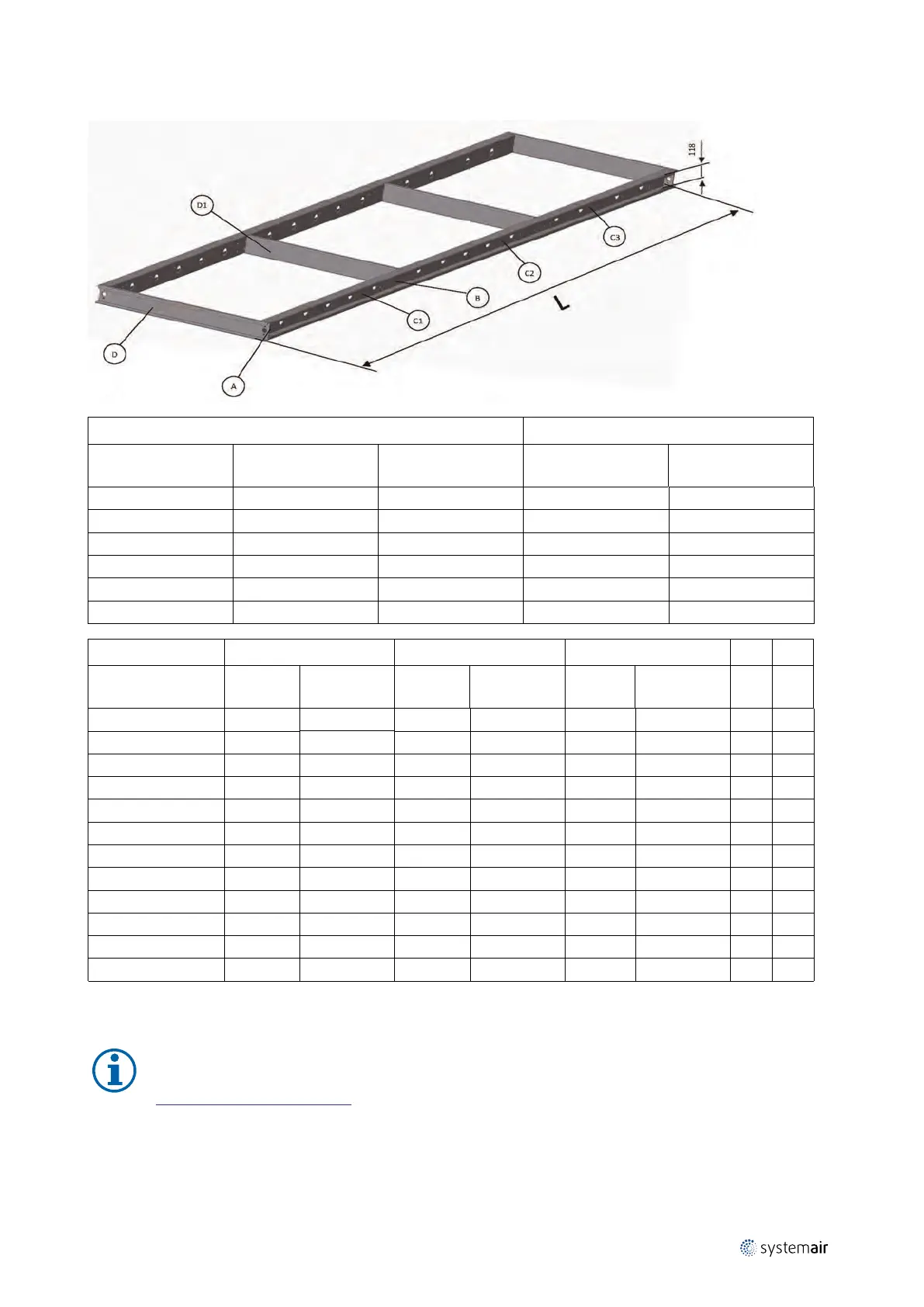

2.3 Base frame length 4982 – 6164 [mm] Unit size 10 – 18
End profile type D (width of base frame)
Middle profile type D1
Unit size Quantity
width of base frame
[mm]
Quantity
Length [mm]
Geniox GO10 2 1070 2 950
Geniox GO11 2 1170 2 1050
Geniox GO12 2 1270 2 1150
Geniox GO14 2 1470 2 1350
Geniox GO16 2 1670 2 1550
Geniox GO18 2 1870 2 1750
Length profile C1 Length profile C2 Length profile C3
A B
Adjustable length
of frame — L [mm]
Quantity
Length
[mm]
Quantity
Length
[mm]
Quantity
Length
[mm]
Qty Qty
4982–5064 2 1600 2 1600 2 1700 4 4
5082-5164 2 1600 2 1700 2 1700 4 4
5182-5264 2 1700 2 1700 2 1700 4 4
5282-5364 2 1700 2 1700 2 1800 4 4
5382-5464 2 1700 2 1800 2 1800 4 4
5482-5564 2 1800 2 1800 2 1800 4 4
5582-5664 2 1800 2 1800 2 1900 4 4
5682-5764 2 1800 2 1900 2 1900 4 4
5782-5864 2 1900 2 1900 2 1900 4 4
5882-5964 2 1900 2 1900 2 2000 4 4
5982-6064 2 1900 2 2000 2 2000 4 4
6082-6164 2 2000 2 2000 2 2000 4 4
Annex 3 Assembly of base frame – height 118 mm for unit sizes 20 – 27
Note:
Information about assembly is available in a 2–minutes video on YouTube.
https://youtu.be/N-oaYpwsAIo
