SystemAir Geniox GO - Annex 5 Assembly of Base Frame - Height 218 MM for Unit Sizes 20 - 27

|
59
Length profile C1 Length profile C2 Length profile C3
A B
Adjustable length
of frame — L [mm]
Quantity
Length
[mm]
Quantity
Length
[mm]
Quantity
Length
[mm]
Qty Qty
4982–5064 2 1600 2 1600 2 1700 4 4
5082-5164 2 1600 2 1700 2 1700 4 4
5182-5264 2 1700 2 1700 2 1700 4 4
5282-5364 2 1700 2 1700 2 1800 4 4
5382-5464 2 1700 2 1800 2 1800 4 4
5482-5564 2 1800 2 1800 2 1800 4 4
5582-5664 2 1800 2 1800 2 1900 4 4
5682-5764 2 1800 2 1900 2 1900 4 4
5782-5864 2 1900 2 1900 2 1900 4 4
5882-5964 2 1900 2 1900 2 2000 4 4
5982-6064 2 1900 2 2000 2 2000 4 4
6082-6164 2 2000 2 2000 2 2000 4 4

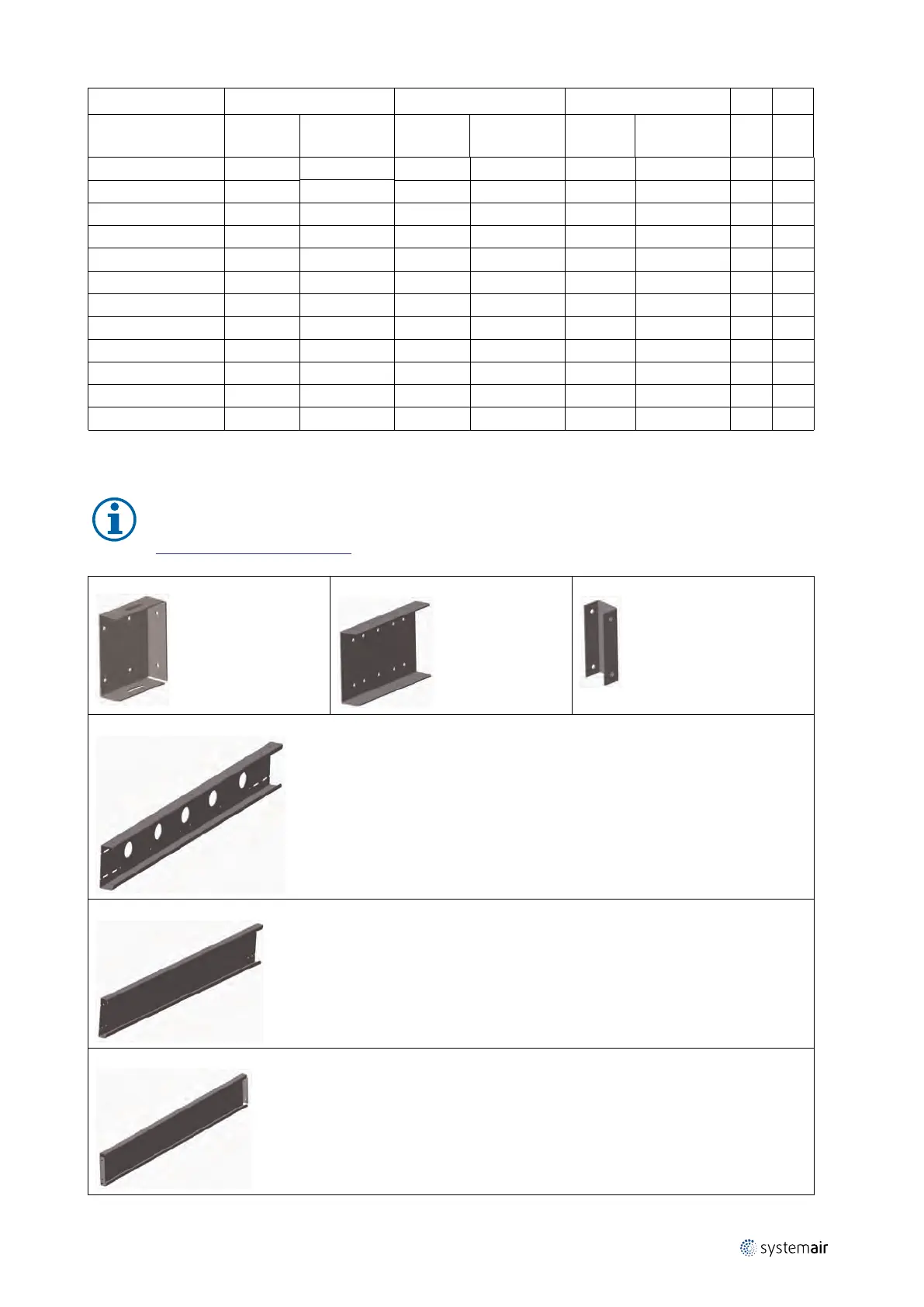

Annex 5 Assembly of base frame – height 218 mm for unit sizes 20 – 27
Note:
Information about assembly is available in a 2–minutes video on YouTube.
https://youtu.be/N-oaYpwsAIo
A = Corner
B = Splice
F = Spacer
C = Length profile
D = End profile (width of base frame)
D1 = Middle profile
