Installation |
19
In this picture you are watching the assembled base frame from
above.
In this picture you are looking upward under the base frame.
The screws will not be visible while looking on the unit.
5. Use self-drilling screws — 4,8 X 25 mm — to be screwed upward through the holes into the bottom profile of the
air handling unit. Note! A screw must be placed in every hole to achieve the necessary strength.
J.1.8 Joining the unit sections
1. Ensure that the internal factory-fitted rubber sealing is undamaged

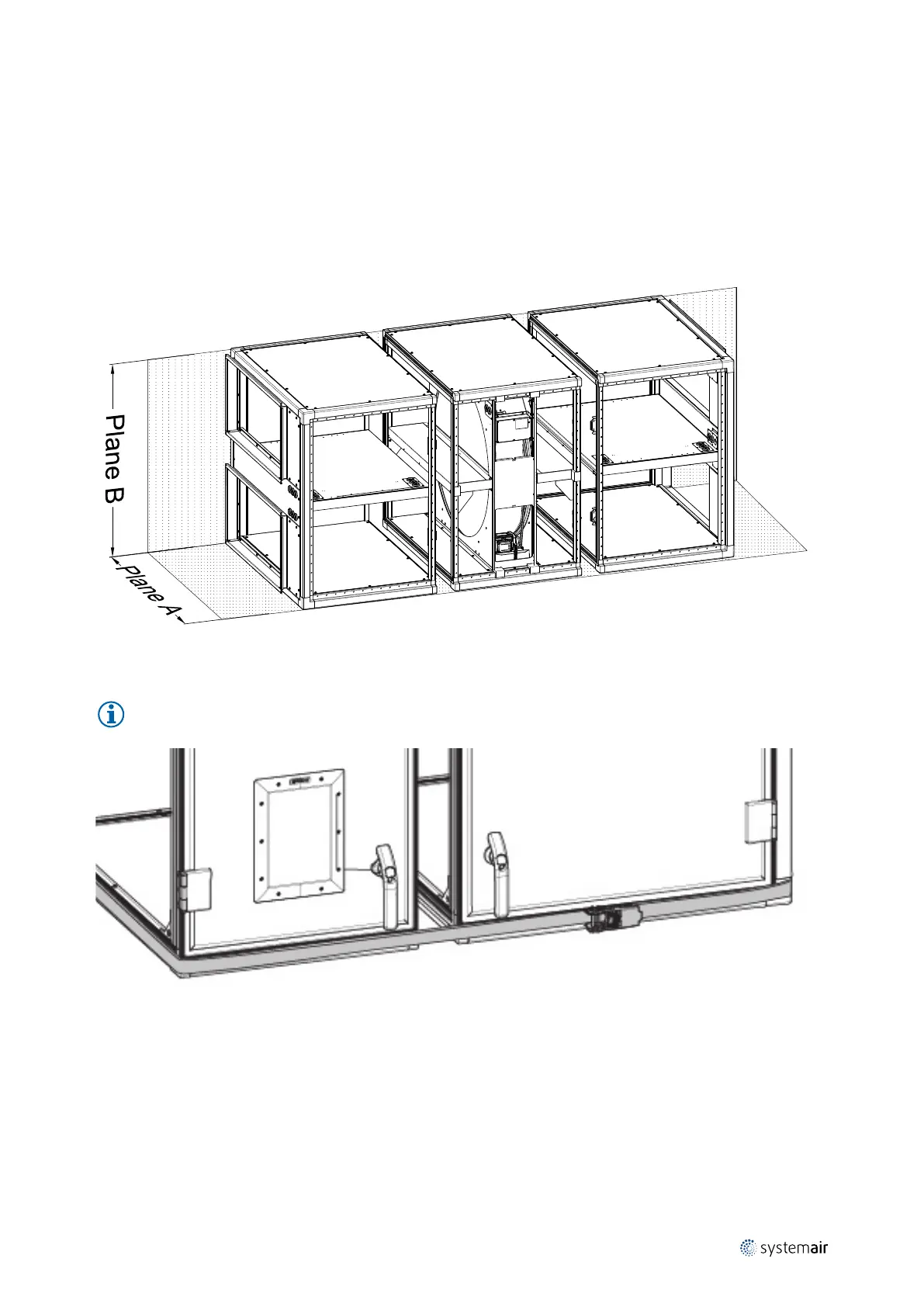

2. Sections must be positioned directly opposite each other and aligned by two planes. The height of each section
can be adjusted by adjustable feet.
Note:
To achieve the best results, pull no more than two sections at a time!
