64
|

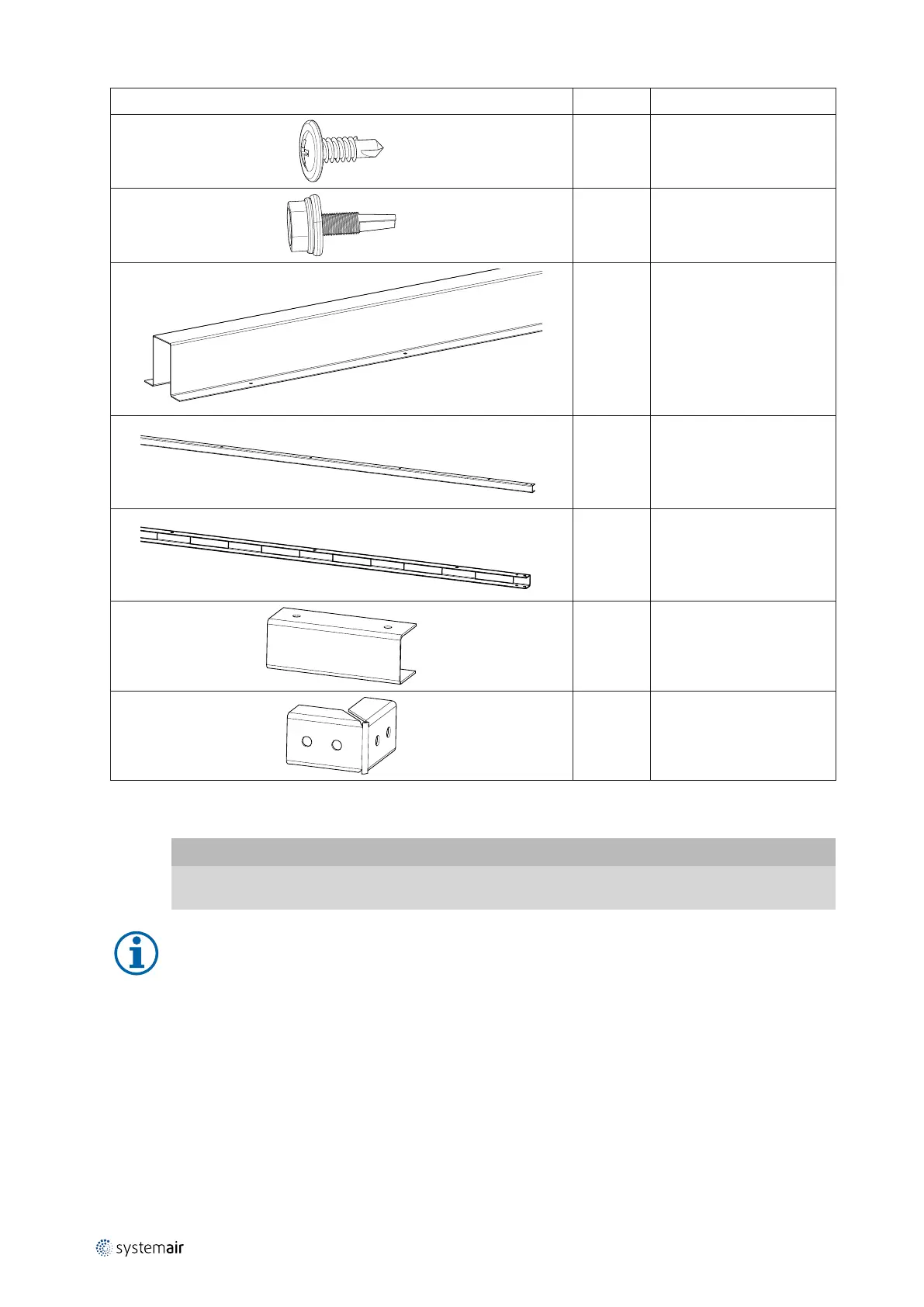

Part Position
Description
7
Self drilling screw
8
Self drilling screw with
sealing washer
9
Middle rail (for units size 20
and higher)
10
Roof profile front
11
Roof profile back
12
Roof profile connector
13
Roof profile corner
6.1.2 Mounting rails and roof sheets
Important
• Place all screws in available screw holes. Stress on the roof during stormy weather is extremely high and
a big amount of screws is needed to hold the roof safely.
Note:
• Roof profile sheets (pos 6) and roof overhang profiles (pos 5) do not have holes for screws. Calculate
right positions before tightening screws.
211728 | v7.2
