65

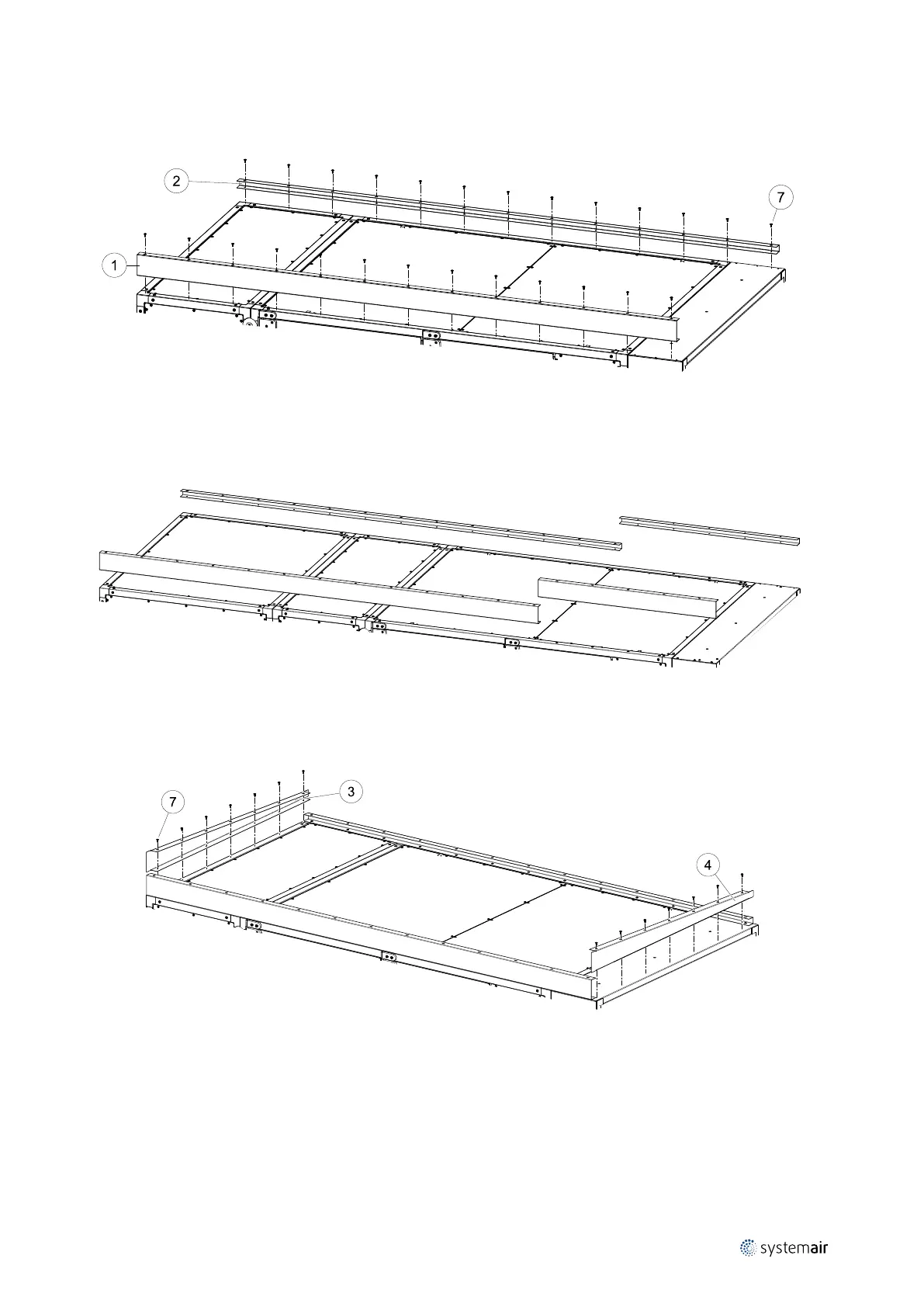

1. Mount front rail (pos 1) on the front side with inspection doors and back rail (pos 2) on the back of the unit. Use
self drilling screws (pos 7). The slope of the roof is 3%.
2. Some units can be delivered with rails split into several parts. In that case join these parts to match the length of
the unit and secure them with screws as shown before.
3. Mount left (pos 3) and right (pos 4) rails with the slope at each side of the unit. Use self drilling screws (pos 7).
211728 | v7.2
