7.3 Assemble of split rotor for Geniox GO 27, Geniox GO 29 and Geniox GO 31
7.3.1 Dimensions of split rotor sections

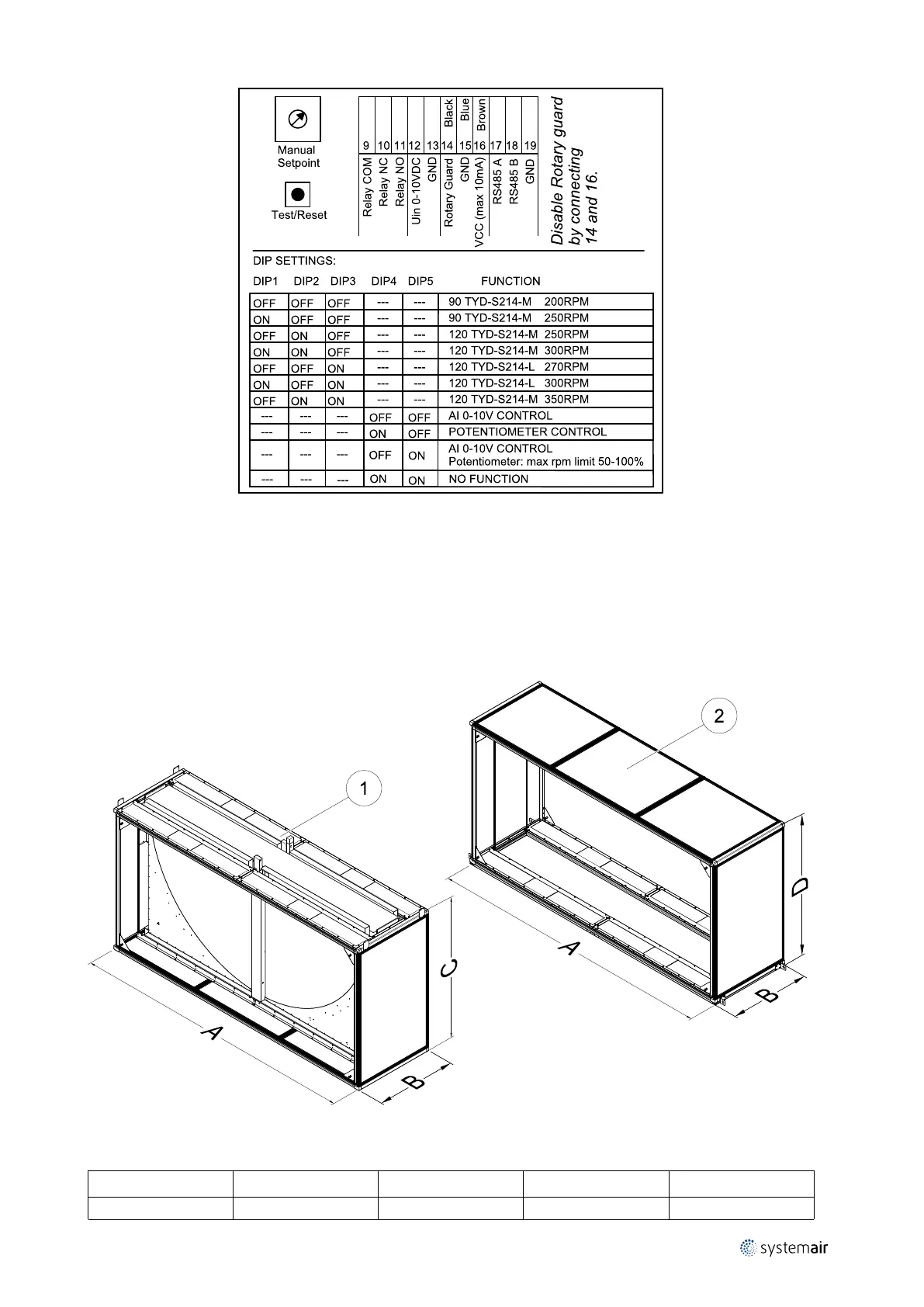

For easier transportation, Systemair offers split rotor option. This type of rotor is divided into two sections — one is
assembled in factory and contains half of the rotor, rotor controller and motor (pos. 1), another section is empty (pos.
2). Second half of the rotor is delivered in parts packed on a separate pallet. Rotor should be assembled following a
manufacturer’s manual (provided in a separate cover).
Size
A [mm] B [mm] C [mm] D [mm]
Geniox GO18 1882 600 982 1000
