SystemAir Geniox GO - Base Frame Length 2582 - 4964 [MM] Unit Size 20 - 27

|
53
Length profile type C
Corner A
Adjustable length of frame — L [mm]
Quantity
Length of profile [mm]
Quantity
482-564 3 400 6
582-664 3 500 6
682-764 3 600 6
782-864 3 700 6
882-964 3 800 6
982-1064 3 900 6
1082-1164 3 1000 6
1182-1264 3 1100 6
1282-1364 3 1200 6
1382-1464 3 1300 6
1482-1564 3 14000 6
1582-1664 3 1500 6
1682-1764 3 1600 6
1782-1864 3 1700 6
1882-1964 3 1800 6
1982-2064 3 1900 6
2082-2164 3 2000 6
2182-2264 3 2100 6
2282-2364 3 2200 6
2382-2464 3 2300 6
2482-2564 3 2400 6

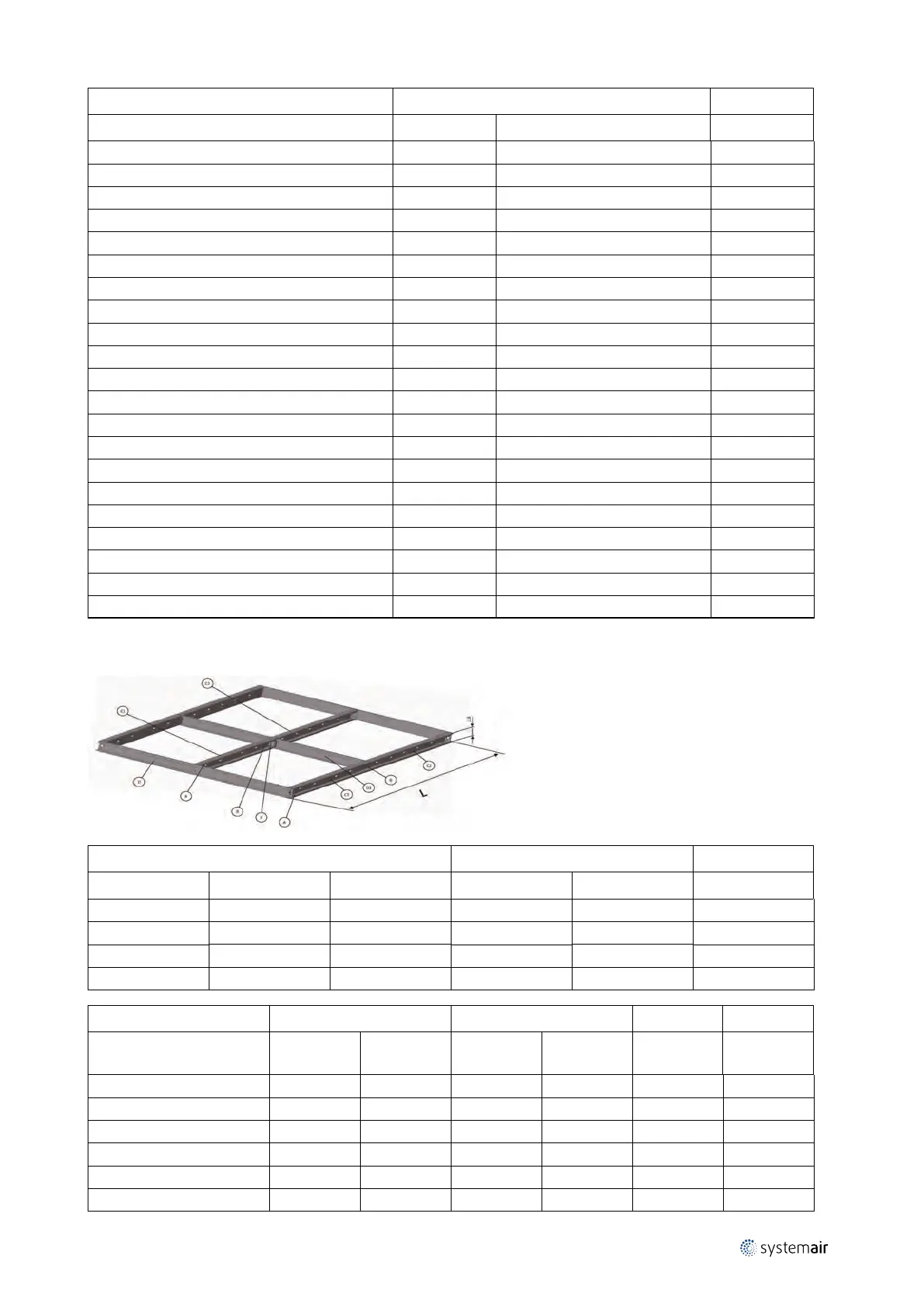

3.2 Base frame length 2582 – 4964 [mm] Unit size 20 – 27
End profile type D (width of base frame)
Middle profile type D1
Spacer F
Unit size Quantity
Length [mm]
Quantity
Length [mm]
Quantity
Geniox GO20 2 2070 2 941 1
Geniox GO22 2 2270 2 1041 1
Geniox GO24 2 2470 2 1141 1
Geniox GO27 2 2770 2 1291 1
Length profile type C1 Length profile type C2
Corner A
Splice B
Adjustable length of
frame — L [mm]
Quantity
Length
[mm]
Quantity
Length
[mm]
Quantity Quantity
2582-2664 3 1200 3 1300 6 3
2682-2764 3 1300 3 1300 6 3
2782-2864 3 1300 3 1400 6 3
2882-2964 3 1400 3 1400 6 3
2982-3064 3 1400 3 1500 6 3
3082-3164 3 1500 3 1500 6 3
