Instructions for unloading and handling on site |
15
I.4.3 Additional information

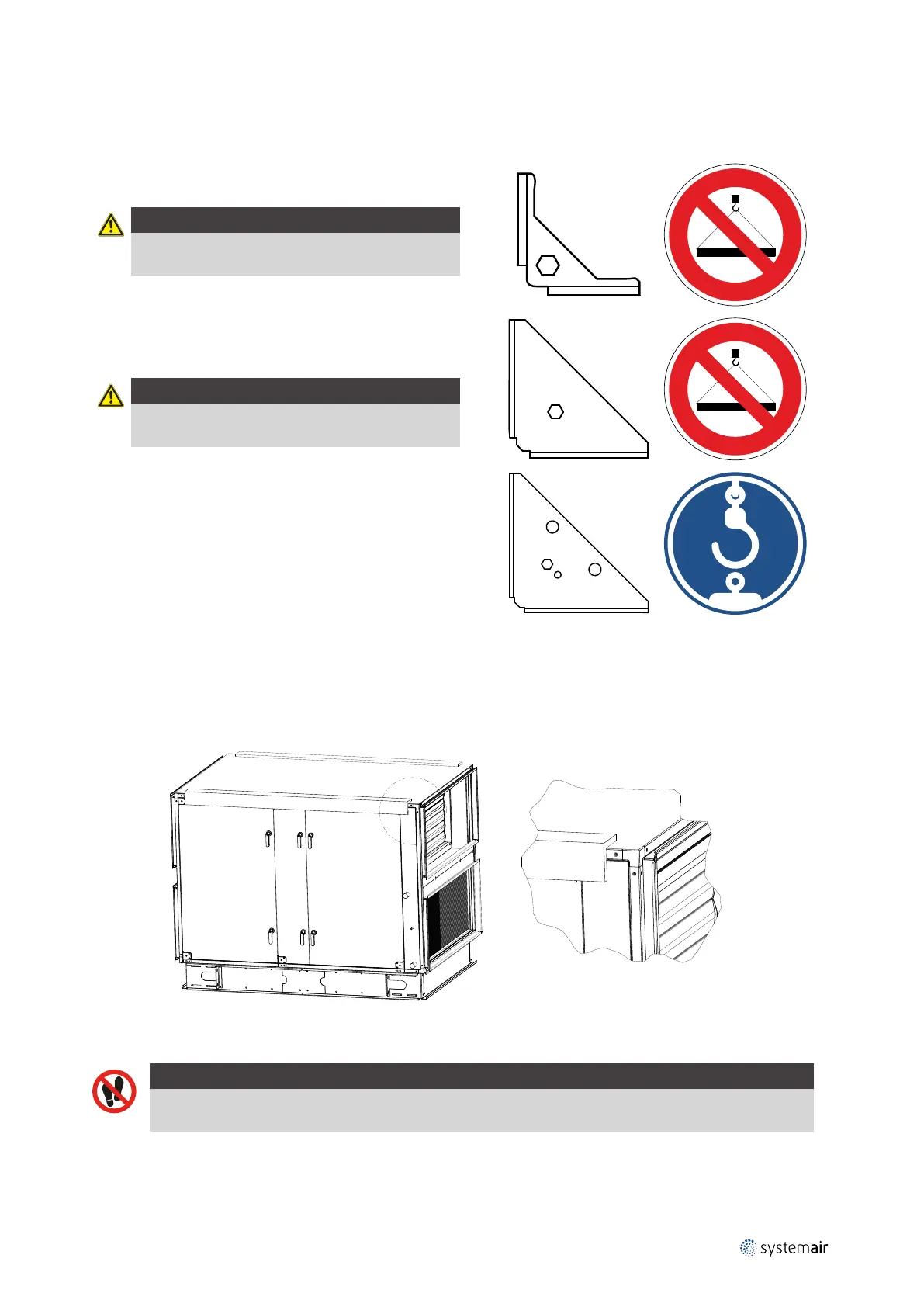

I.4.3.1 Available corners
Corner inside the unit for assembly of Geniox GO units in
the sizes 16 — 20.
Caution
This type of corner is not reinforced and cannot be
used for lifting the section.
Corner inside the unit for assembly of Geniox GO units in
the sizes 22 – 24. Top Corner inside the unit for assembly of
Geniox GO units in sizes 27 — 31.
Caution
This type of corner is not reinforced and cannot be
used for lifting the section.
Bottom corner inside the unit for assembly of Geniox GO
units in the sizes 27 — 31. This type of corner is reinforced
and can be used for lifting the section.
I.4.3.2 Roof unit with PVC roof
Avoid damaging the drip nose profiles along the PVC roof. Keep the protection profiles of Styrofoam on the unit until
the installation has been completed. If the unit is lifted by straps, the straps must be kept away from the drip nose pro-
files by traverses or wooden spacer beams to avoid damage to roof profiles.
I.4.3.3 Roof unit with steel roof
Caution
For units with steel plate roof, the steel plates are delivered uninstalled on a separate pallet. Do not step or
walk on the plates.
211728 | v7.2
