SystemAir Geniox GO - Annex 4 Assembly of Base Frame - Height 218 MM for Unit Sizes 10 - 18

|
55
Length profile type C1 Length profile type C2 Length profile type C3
A B
Adjustable
length of
frame — L
[mm]
Qty
Length [mm]
Qty
Length [mm]
Qty
Length [mm]
Qty Qty
4982-5064 3 1600 3 1600 3 1700 6 6
5082-5164 3 1600 3 1700 3 1700 6 6
5182-5264 3 1700 3 1700 3 1700 6 6
5282-5364 3 1700 3 1700 3 1800 6 6
5382-5464 3 1700 3 1800 3 1800 6 6
5482-5564 3 1800 3 1800 3 1800 6 6
5582-5664 3 1800 3 1800 3 1900 6 6
5682-5764 3 1800 3 1900 3 1900 6 6
5782–5864 3 1900 3 1900 3 1900 6 6
5882-5964 3 1900 3 1900 3 2000 6 6
5982-6064 3 1900 3 2000 3 2000 6 6
6082-6164 3 2000 3 2000 3 2000 6 6

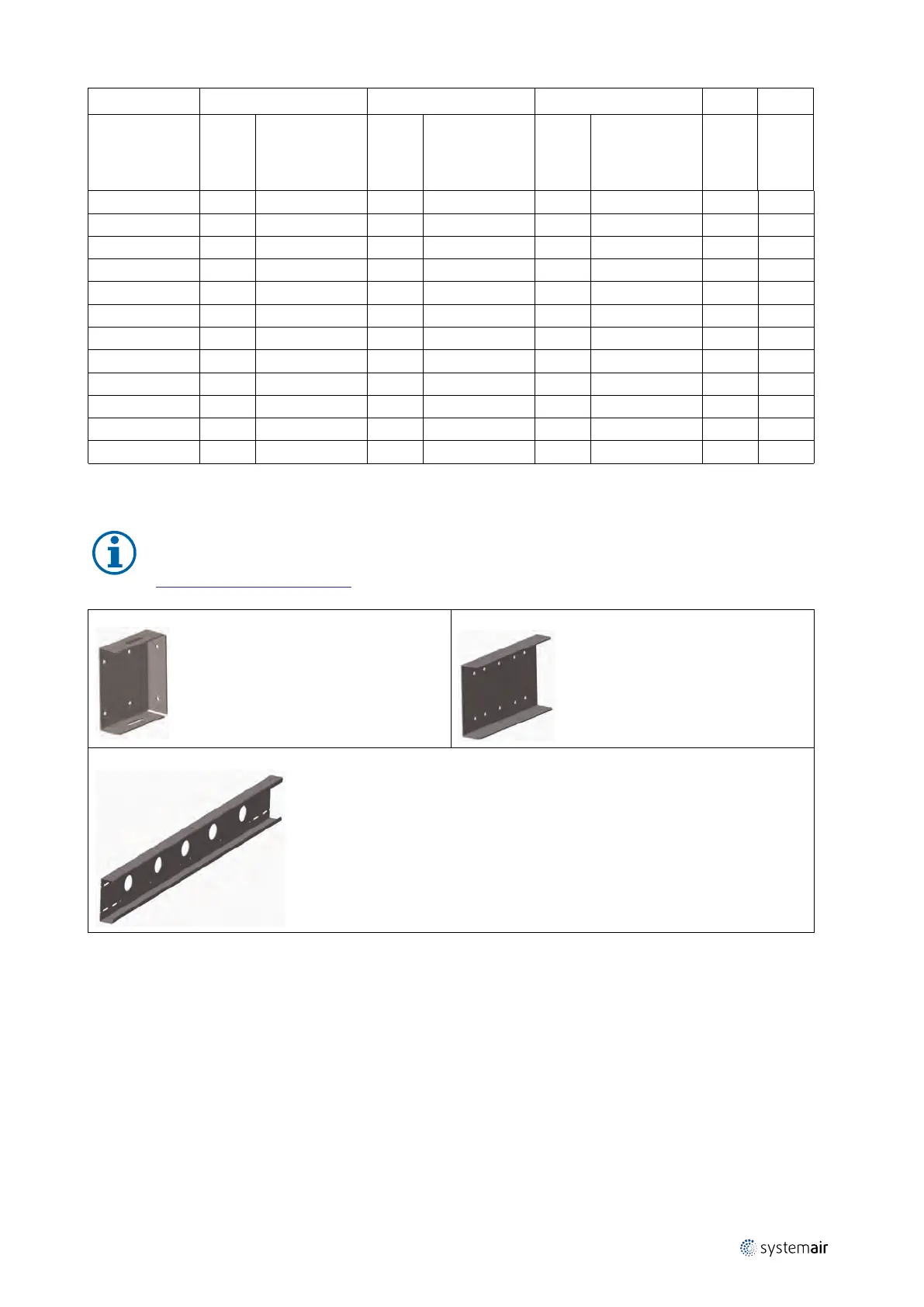

Annex 4 Assembly of base frame – height 218 mm for unit sizes 10 – 18
Note:
Information about assembly is available in a 2–minutes video on YouTube.
https://youtu.be/B3nX-x7KnrQ
A = Corner
B = Splice
C = Length profile
211728 | v7.2
