SystemAir Geniox GO - Base Frame Length 482- 2564 [MM] Unit Size 10 - 18

56
|
D = End profile (width of base frame)
D1 = Middle profile

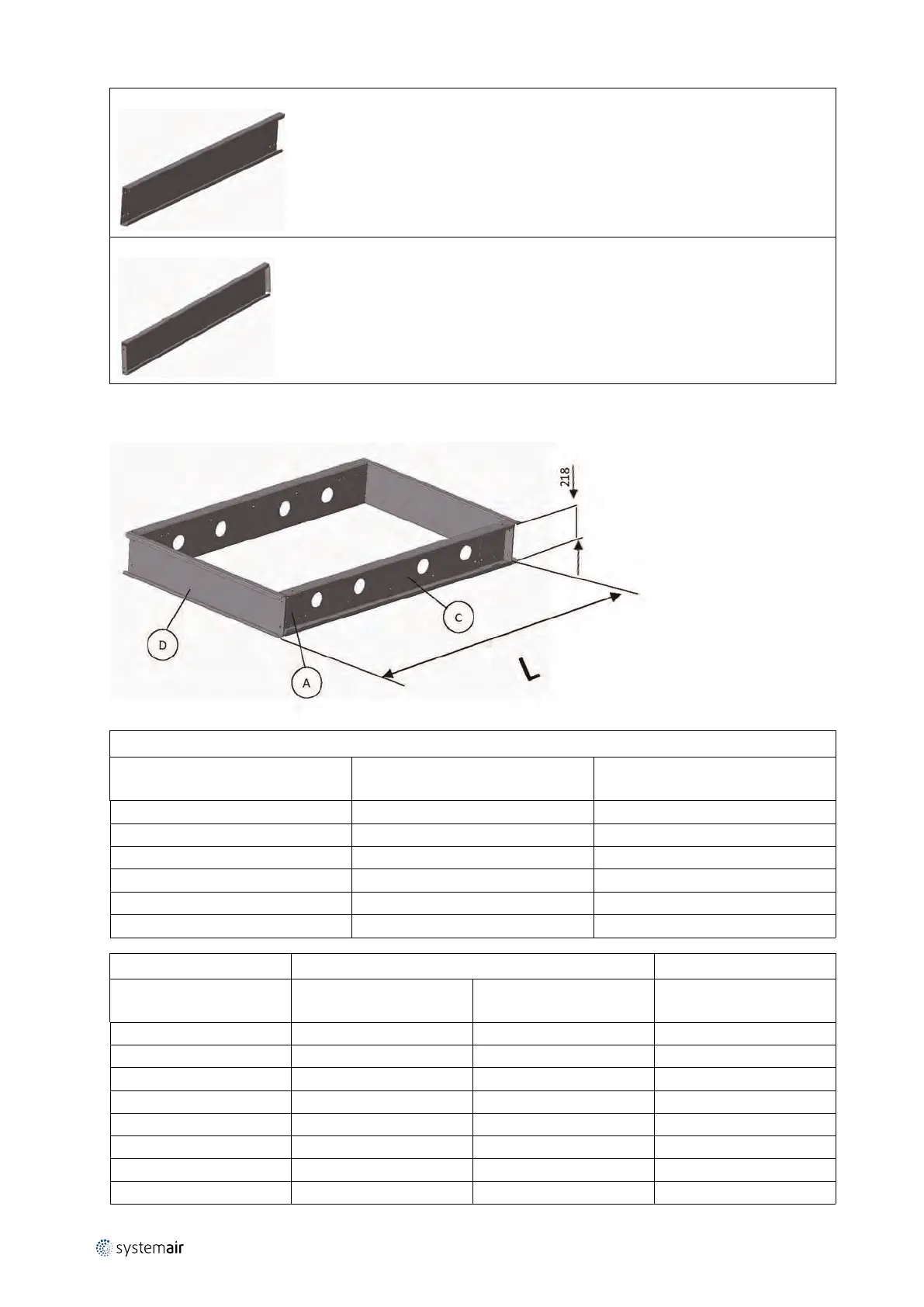

4.1 Base frame length 482– 2564 [mm] Unit size 10 – 18
End profile type D (width of base frame)
Unit size Quantity
Length of endprofile (width of base
frame) [mm]
Geniox GO10 2 1070
Geniox GO11 2 1170
Geniox GO12 2 1270
Geniox GO14 2 1470
Geniox GO16 2 1670
Geniox GO18 2 1870
Length profile type C
Corner A
Adjustable length of
frame — L [mm]
Quantity
Length of profile [mm]
Quantity
482 – 564 2 400 4
582 – 664 2 500 4
682 – 764 2 600 4
782 – 864 2 700 4
882 — 964 2 800 4
982 – 1064 2 900 4
1082 — 1164 2 1000 4
1182 – 1264 2 1100 4
211728 | v7.2
