36
| Adjustment and maintenance operations

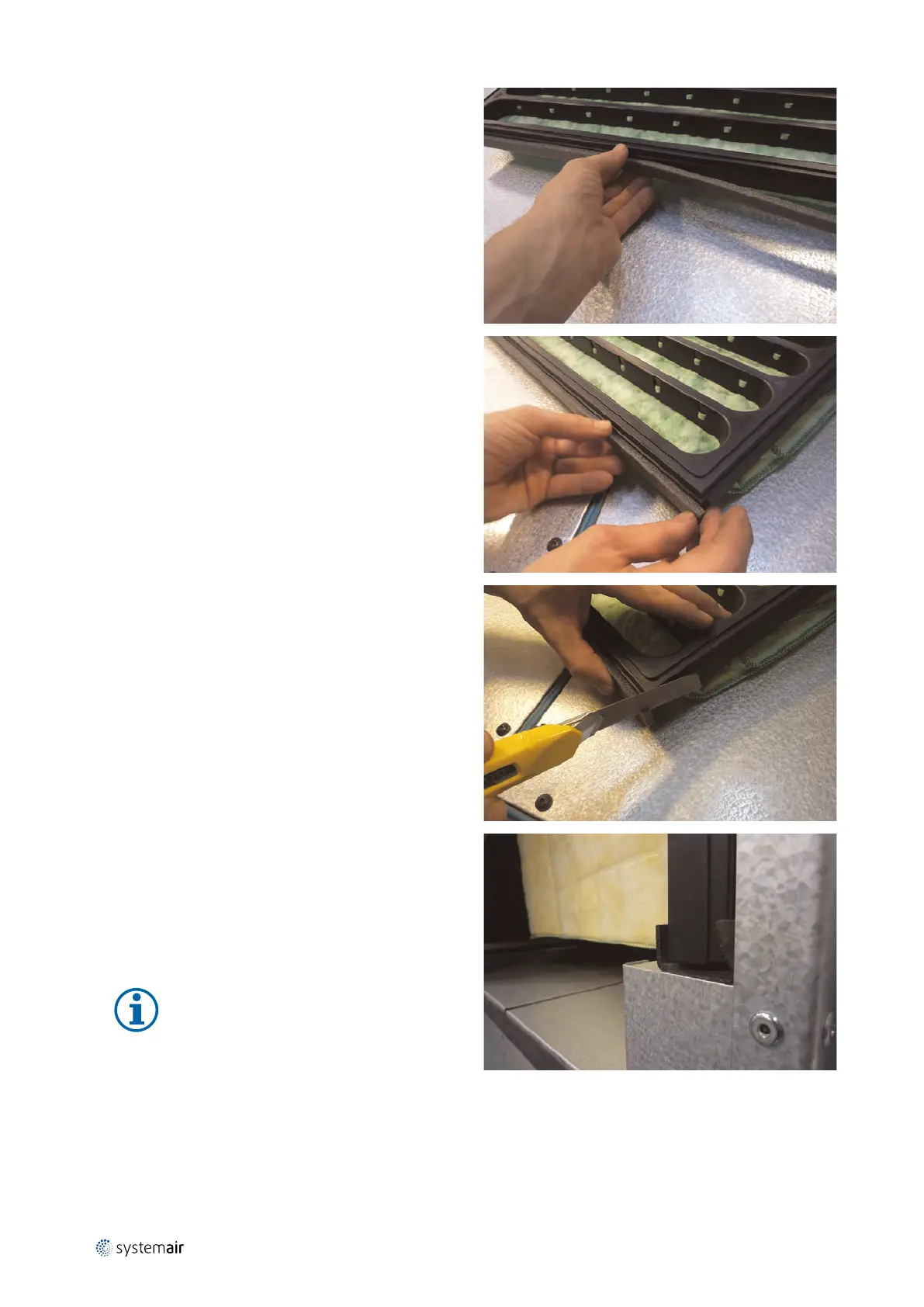

Place the self-adhesive strip on one vertical side of the
filter fame
Check that the end of the strip is fully even with the hori-
zontal side of the filter frame.
Remove excess of the strip. The end of the strip must be
fully even with the horizontal side of the filter frame.
Push the filters carefully in the U-profile to be sure that
there are no leakages between the filters Check that the
vertical side of the last filter in the U-profile is fully even
with the end of the U-profile. If the end of the last filter is
not fully even with the end of the U-proflle an additional
self-adhesive profile must be added to avoid any gap be-
tween the rubber profile on the inspection door and the
last filter.
Note:
Use lubricant if filters are too difficult to push
in.
211728 | v7.2
