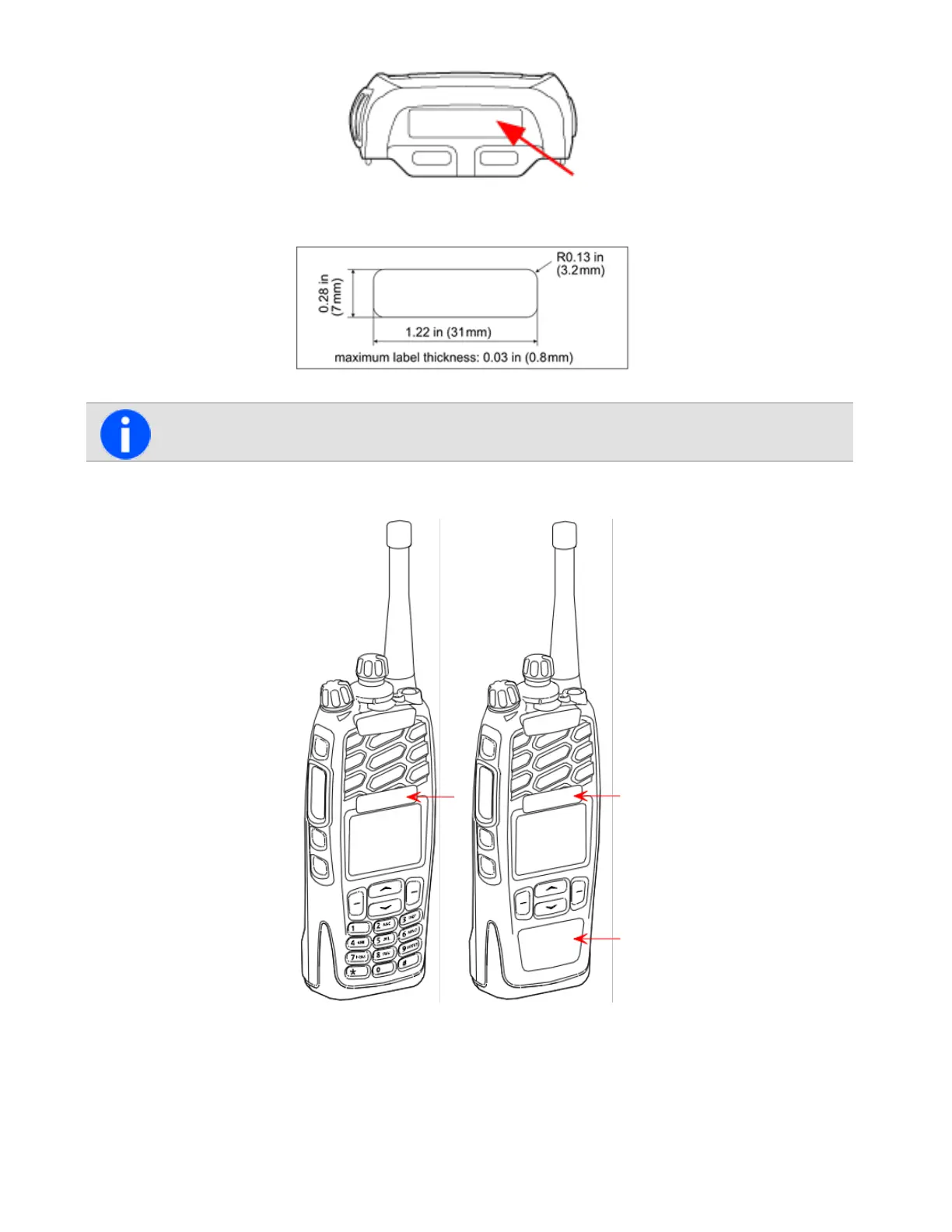

Figure 2.2 Spare label recess
The diagram below shows the specified dimensions of the label.
Figure 2.3 Spare label dimensions
4-key models have a specially designed recess for custom labels.
Users can also stick labels over the top of the model label. This recess will accommodate 1/4" label maker labels.
Please ensure the labels have a suitable adhesive surface before application.
Figure 2.4 Location of model and custom labels
19
Tait International Ltd July 2021
