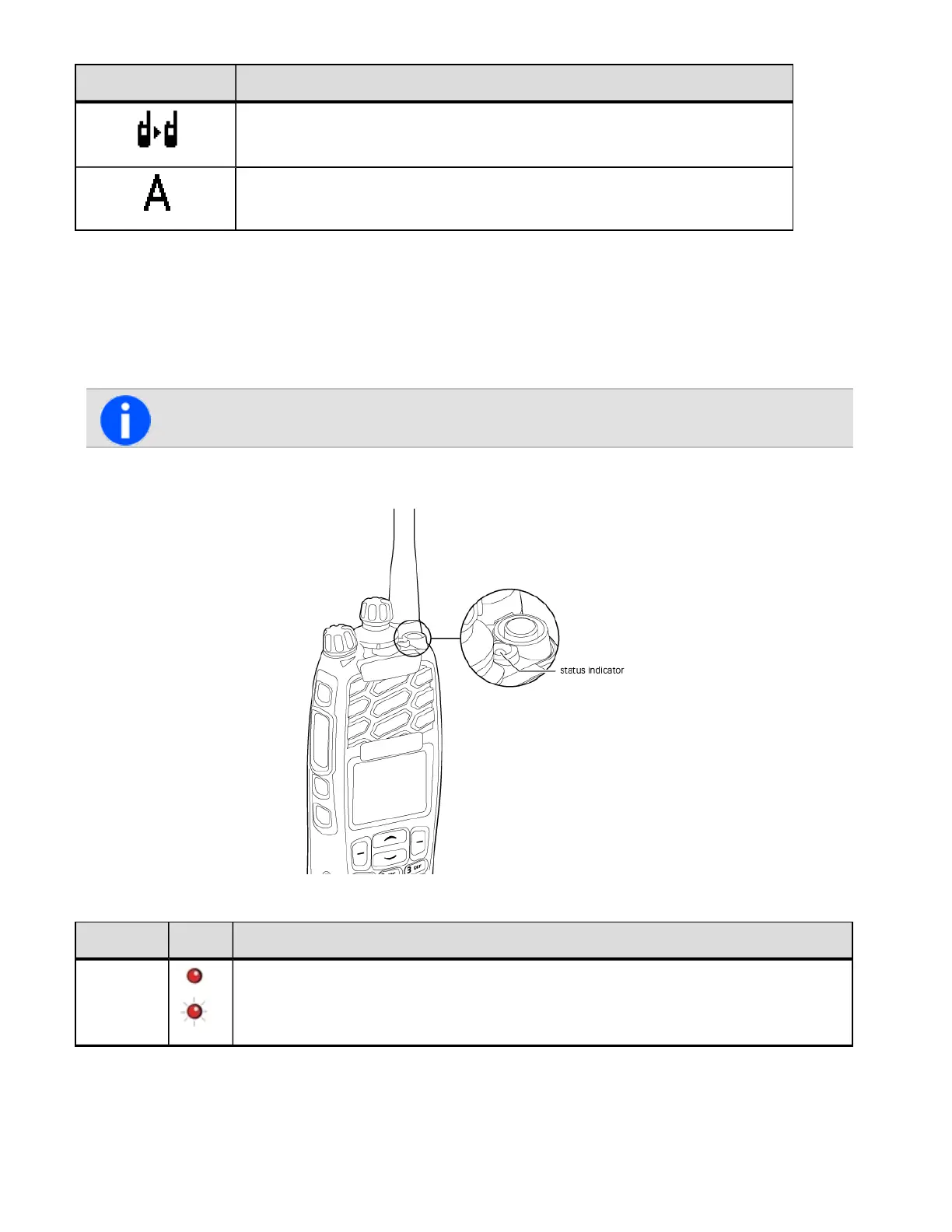

Icon Meaning
Repeater talkaround: your radio is operating in repeater talkaround mode, or you
are on a simplex channel
Zone: this letter represents the zone in which your radio is operating, where A is
zone 1, Z is zone 26 (for example, K represents zone11)
Understanding the Radio Indicators
The status LED indicator and the radio’s audible tones—together with the radio display—all combine to provide inform-
ation about the state of the radio.
The most common way the indicators work is described in the following sections.
The way these indicators behave may be affected by the way the radio is programmed.
Status Indicators
Figure 3.1 Location of LED status indicator
Color Meaning
Red
(transmit)
Glowing: the radio is transmitting
Flashing: the transmit timer is about to expire
