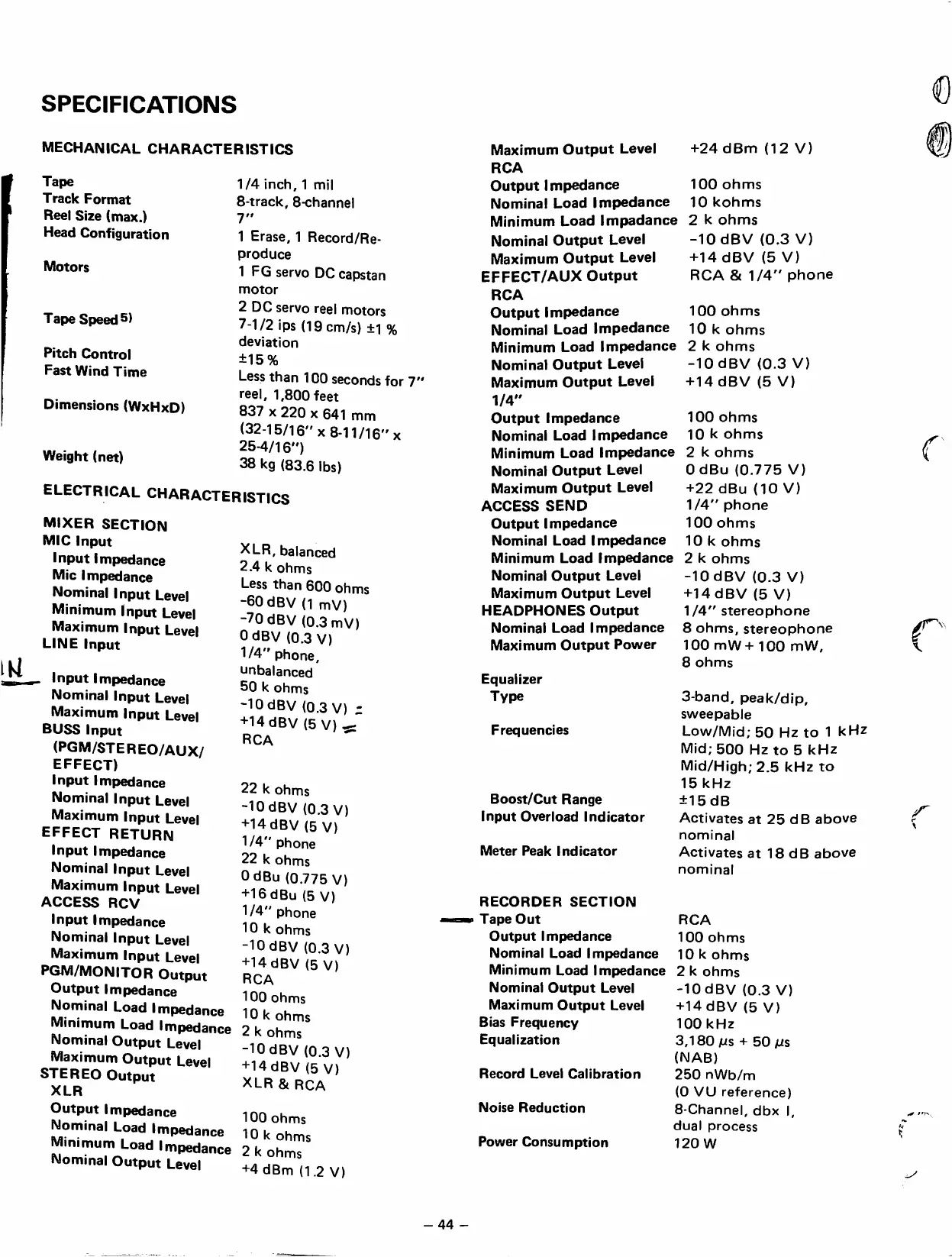

SPECIFICATIONS
MECHANICAL CHARACTERISTICS
Tape
Track Format
Reel Size (max.)
Head Configuration
Motors
Tape SpeedS)
Pitch Control
Fast WInd Time
Dimensions (WxHxD)
Weight (net)
1/4 inch, 1 mil
8-track, 8-channel
7"
1 Erase, 1 Record/Re
produce
1 FG servo DC capstan
motor
2 DC servo reel motors
7-1/2 ips (19 cm/s) ±1 %
deviation
±15%
Less than 100 seconds for 7'
reel, 1,800 feet
837 X 220 X 641 mm
(32-15/16" X 8-11/16" X
25-4/16")
38 kg (83.6 Ibs)
ELECTRICAL CHARACTERISTICS
MIXER SECTION
MiC input
Input impedance
Mic impedance
Nominal Input Level
Mínimum Input Level
Máximum Input Level
LINE Input
_ Input Impedance
Nominal Input Level
Máximum Input Level
BUSS Input
(PGM/STEREO/AUX/
EFFECT)
Input Impedance
Nominal Input Level
Máximum Input Level
EFFECT RETURN
Input Impedance
Nominal Input Level
Máximum Input Level
ACCESS RCV
Input Impedance
Nominal Input Level
Máximum Input Level
PGM/MONITOR Output
Output Impedance
Nominal Load Impedance
Minimum Load Impedance
Nominal Output Level
Máximum Output Level
STEREO Output
XLR
Output Impedance
Nominal Load Impedance
Minimum Load Impedance
Nominal Output Level
XLR, ba
22 k ohm
ianced
2.4 k ohms
Less than 600 ohms
-60dBV (1 mV)
-70dBV (0.3 mV)
O dBV (0.3 V)
1/4" phone,
unbalanced
50 k ohms
-10 dBV (0.3 V) I
+14 dBV (5 V) ^
ROA
s
-10 dBV (0.3 V)
+14 dBV (5 V)
1/4" phone
22 k ohms
OdBu (0.775 V)
+16 dBu (5 V)
1/4" phone
10 k ohms
-10 dBV (0.3 V)
+14 dBV (5 V)
RCA
100 ohms
10 k ohms
2 k ohms
-10 dBV (0.3 V)
+14 dBV (5 V)
XLR & RCA
100 ohms
10 k ohms
2 k ohms
+4 dBm (1.2 V)
Máximum Output Level
RCA
Output Impedance
Nominal Load Impedance
Minimum Load Impadance
Nominal Output Level
Máximum Output Level
EFFECT/AUX Output
RCA
Output Impedance
Nominal Load Impedance
Minimum Load Impedance
Nominal Output Level
Máximum Output Level
1/4"
Output Impedance
Nominal Load Impedance
Minimum Load Impedance
Nominal Output Level
Máximum Output Level
ACCESS SENO
Output Impedance
Nominal Load Impedance
Minimum Load Impedance
Nominal Output Level
Máximum Output Level
HEADPHONES Output
Nominal Load Impedance
Máximum Output Power
Equalizer
Type
Frequencies
Boost/Cut Range
Input Overload Indicator
Meter Peak Indicator
+24 dBm (12 V)
100 ohms
10 kohms
2 k ohms
-10 dBV (0.3 V)
+14 dBV (5 V)
RCA & 1/4" phone
100 ohms
10 k ohms
2 k ohms
-10 dBV (0.3 V)
+14 dBV (5 V)
100 ohms
10 k ohms
2 k ohms
OdBu (0.775 V)
+22 dBu (10 V)
1/4" phone
100 ohms
10 k ohms
2 k ohms
-10 dBV (0.3 V)
+14 dBV (5 V)
1/4" stereophone
8 ohms, stereophone
100 mW-i-100 mW,
8 ohms
3-band, peak/dip,
sweepable
Low/Mid; 50 Hz to 1 kHz
Mid;500 Hz to 5 kHz
Mid/High; 2.5 kHz to
15 kHz
±15dB
Activates at 25 dB above
nominal
Activates at 18 dB above
nominal
f
r
RECORDER SECTION
Tape Oüt
Output Impedance
Nominal Load Impedance
Minimum Load Impedance
Nominal Output Level
Máximum Output Level
Bias Frequency
Equalization
Record Level Calibration
Noise Reduction
Power Consumption
RCA
100 ohms
10 k ohms
2 k ohms
-lOdBV (0.3 V)
+14 dBV (5 V)
100 kHz
3,180 AS + 50 AS
(NAB)
250 nWb/m
(O VU reference)
8-Channel, dbx I,
dual process
120 W
