1-2. REMOVAL OF THE MAIN PARTS
1-2-1. Top Panel of the Deck Section
1. See the illustration and remove the dust cover.
2. Remove the control panel.
3. Remove the left and right escutcheons.
4. Remove the pinch rollercap and pinch rollen
5. Remove the houslng base.
6. Remove the left and right tensión rol le rs.
7. Now the top panel can be removed.
Dust Cover
Escutcheon L
V
Pinch Rollar Cap
Pinch Rollar
Tensión Rollar
Housing Basa
Tensión
Control Panal
Escutcheon R
Bottom Plaí®

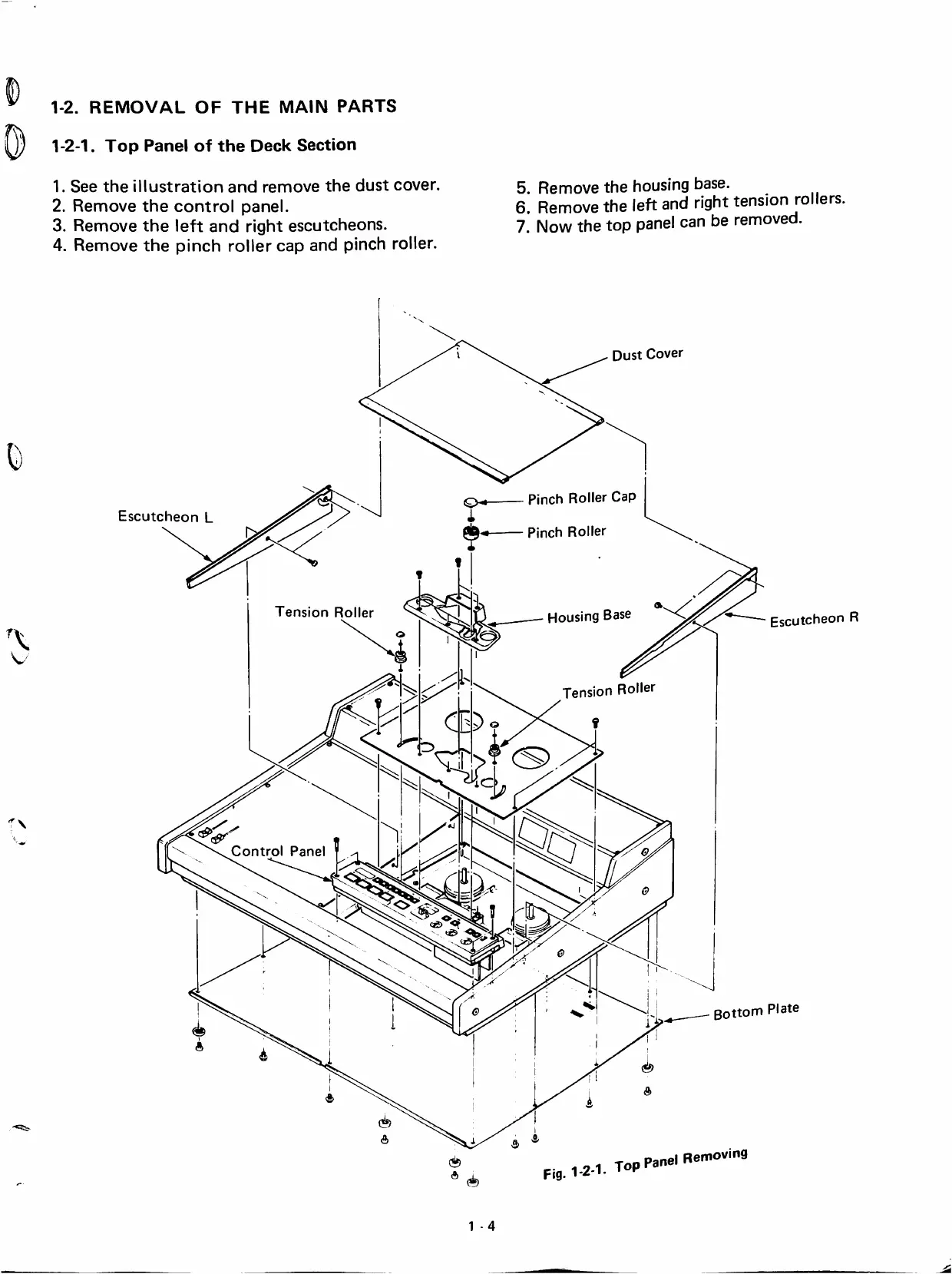

1-2-1. Top
Panel Renrioving
1 -4
