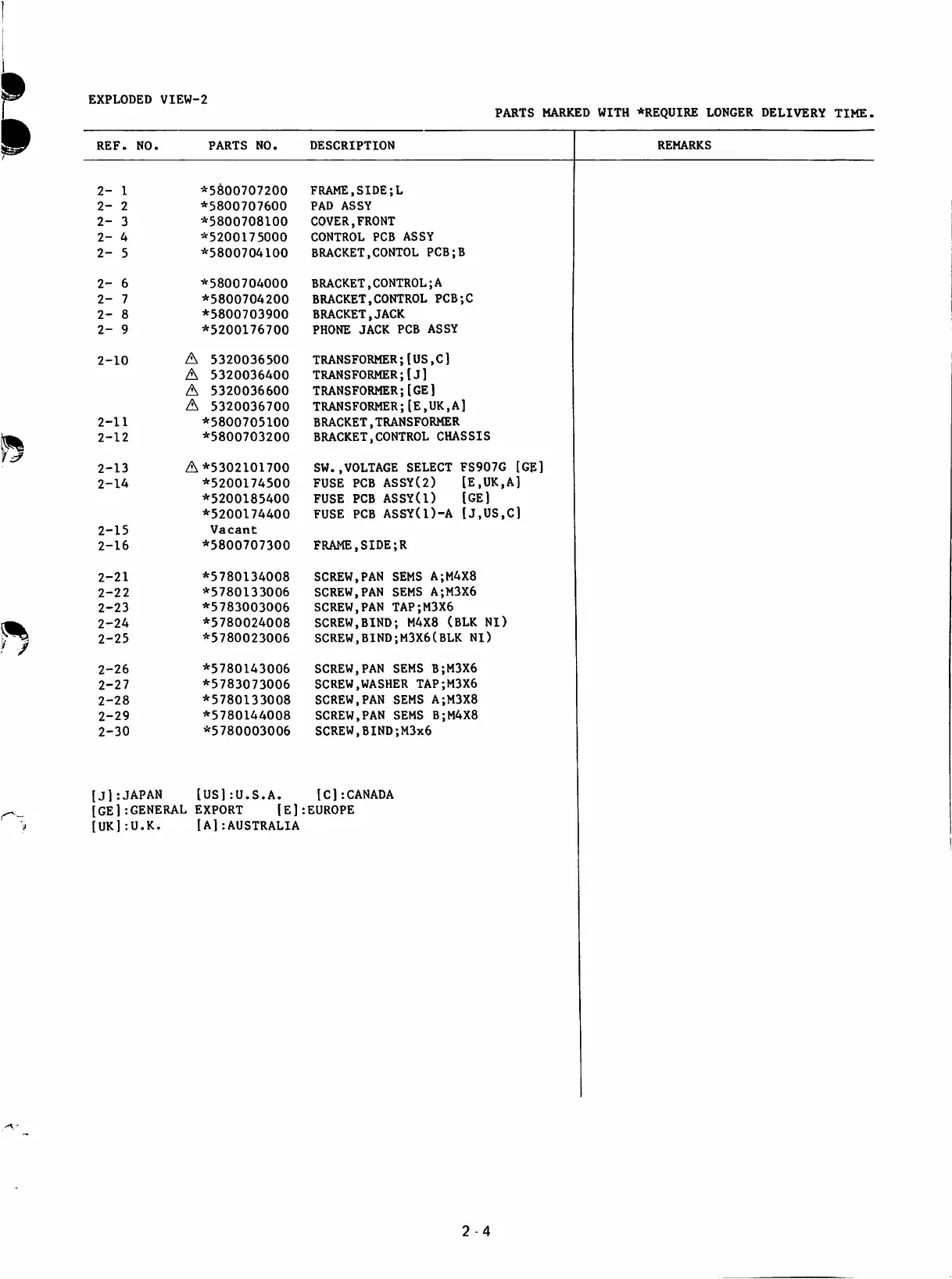

EXPLODED VIEW-2
PARTS MARKED WITH *REQUIRE LONGER DELIVERY TIME.
REF. NO. PARTS NO.
DESCRIPTION REMARES
2- 1
*5800707200
FRAME,SIDE;L
2- 2 *5800707600
PAD ASSY
2- 3 *5800708100
COVER,FRONT
2- 4 *5200175000
CONTROL PCB ASSY
2- 5
*5800704100
BRACKET.CONTOL PCB;B
2- 6
*5800704000
BRACKET,CONTROL;A
2- 7
*5800704200
BRACKET,CONTROL PCB;C
2- 8
*5800703900
BRACKET,JACK
2- 9
*5200176700
PHONE JACK PCB ASSY
2-10
A
5320036500
TRANSFORMER;[US,C]
A
5320036400
TRANSFORMER;iJ]
A
5320036600
TRANSFORMER;[GE]
A
5320036700
TRANSFORMER;¡E,UK,A]
2-11 *5800705100
BRACKET,TRANSFORMER
2-12 *5800703200
BRACKET,CONTROL CHASSIS
2-13
A*5302101700
SW..VOLTAGE SELECT FS907G [GE]
2-14 *5200174500
FUSE PCB ASSY(2) [E,UK,A]
*5200185400
FUSE PCB ASSY(l) [GE]
*5200174400
FUSE PCB ASSY(1)-A [J,US,C]
2-15
Vacant
2-16
*5800707300
FRAME,SIDE;R
2-21
*5780134008
SCREW,PAN SEMS A;M4X8
2-22
*5780133006 SCREW,PAN SEMS A;M3X6
2-23 *5783003006
SCREW.PAN TAP;M3X6
2-24 *5780024008
SCREW,BIND; M4X8 (BLK Ni)
2-23
*5780023006
SCREW,BIND;M3X6(BLK NI)
2-26
*5780143006
SCREW.PAN SEMS B;M3X6
2-27
*5783073006
SCREW.WASHER TAP;M3X6
2-28
*5780133008
SCREW.PAN SEMS A;M3X8
2-29
*5780144008
SCREW.PAN SEMS B;M4X8
2-30
*5780003006 SCREW.BIND;M3x6
(J]:JAPAN [USl:U.S.A. [C]iCANADA
i ge]:GENERAL EXPORT [E]:EUROPE
[UK] :U.K. [AlrAUSTRALIA
2-4
