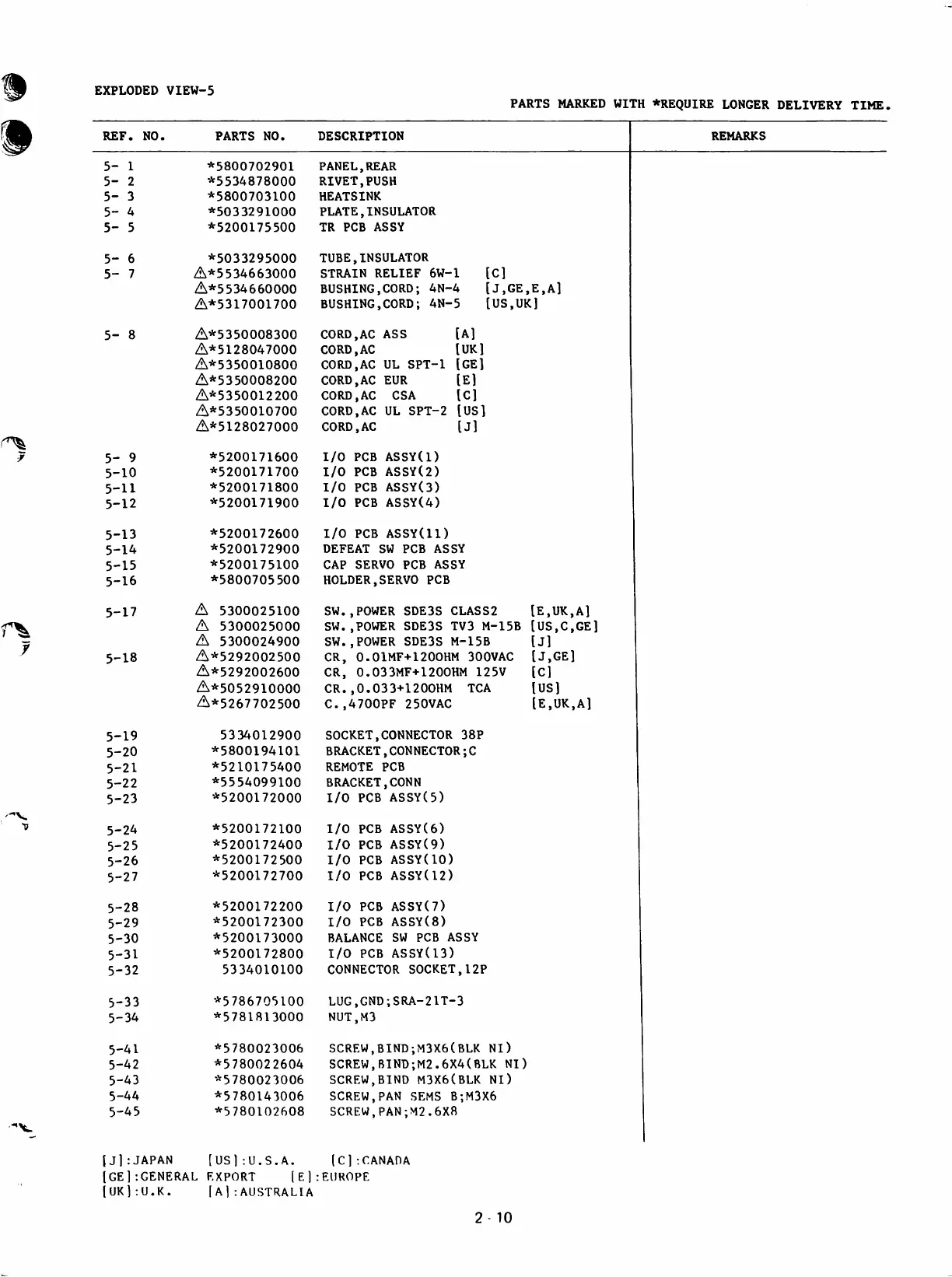

Tascam 388 Studio 8 - Page 86

EXPLODED VIEW-5
PARTS MARKED WITH *REQUIRE LONGER DELIVERY TIME.
REF. NO.
PARTS NO.
DESCRIPTION REMARKS
5- 1 *5800702901
PANEL,REAR
5- 2
*5534878000
RIVET.PUSH
5- 3
*5800703100
HEATSINK
5- 4
*5033291000
PLATE,INSULATOR
5- 5
*5200175500
TR PCB ASSY
5- 6
*5033295000
TUBE,INSULATOR
5- 7
A*5534663000
STRAIN RELIEF 6W-1 [Cl
A*5534660000
BUSHING.CORD; 4N-4 [J,GE,E,A]
A*5317001700
BUSHING,CORD; 4N-5 [US.UK]
5- 8
A*5350008300
CORD,AC ASS [A]
A*5128047000 CORD.AC ÍUK]
A*5350010800
CORD.AC UL SPT-1 [GE]
A*5350008200
CORD,AC EUR [E]
A*5350012200 CORD.AC CSA id
A*5350010700
CORD.AC UL SPT-2 ¡US]
A*5128027000
CORD.AC Íj]
5- 9
*5200171600
I/O PCB ASSY(l)
5-10
*5200171700
I/O PCB ASSY(2)
5-11
*5200171800
I/O PCB ASSY(3)
5-12
*5200171900
I/O PCB ASSY(4)
5-13
*5200172600
I/O PCB ASSY(ll)
5-14
*5200172900
DEFEAT SW PCB ASSY
5-15
*5200175100 CAP SERVO PCB ASSY
5-16
*5800705500 HOLDER,SERVO PCB
5-17
A 5300025100 SW.,POWER SDE3S CLASS2 [E.UK.A]
A 5300025000
SW..POWER SDE3S TV3 M-15B ÍUS,C,GE]
A 5300024900 SW.,POWER SDE3S M-15B [jl
5-18
A*5292002500 CR, 0.01MF+1200HM 300VAC ÍJ.GE]
A*5292002600 CR, 0.033MF+1200HM 125V [C]
A*5052910000
CR.,0.033+1200HM TCA ¡US]
A*5267702500 C.,4700PF 250VAC ¡E.UK.A]
5-19
5334012900
SOCKET.CONNECTOR 38P
5-20
*5800194101
BRACKET,CONNECTOR;C
5-21
*5210175400
REMOTE PCB
5-22
*5554099100
BRACKET,CONN
5-23
*5200172000
I/O PCB ASSY(5)
5-24
*5200172100
I/O PCB ASSY(6)
5-25
*5200172400 I/O PCB ASSY(9)
5-26
*5200172500 I/O PCB ASSY(IO)
5-27
*5200172700
I/O PCB ASSY(12)
5-28
*5200172200 I/O PCB ASSY(7)
5-29
*5200172300 I/O PCB ASSY(8)
5-30
*5200173000
BALANCE SW PCB ASSY
5-31
*5200172800
I/O PCB ASSY(13)
5-32
5334010100
CONNECTOR S0CKET,12P
5-33
*5786705100
LUG,GND;SRA-21T-3
5-34
*5781813000 NUT,M3
5-41
*5780023006 SCREW,BIND;M3X6(BLK Ni)
5-42
*5780022604 SCREW,BIND;M2.6X4(BLK NI)
5-43
*5780023006
SCREW.BIND M3X6(BLK Ni)
5-44
*5780143006
SCREW.PAN SEMS B;M3X6
5-45 *5780102608
SCREW,PAN;M2.6X8
'V.
lJ] :JAPAN [USl ;U.S.A. (Cl tCANADA
¡GE] ; GENERAL F.XPORT [El rElJROPE
ÍUK):U.K. [A) :AUSTRALIA
2 10
