TC Electronic SYSTEM 6000 MKII Algorithm Manual

44
MD-3

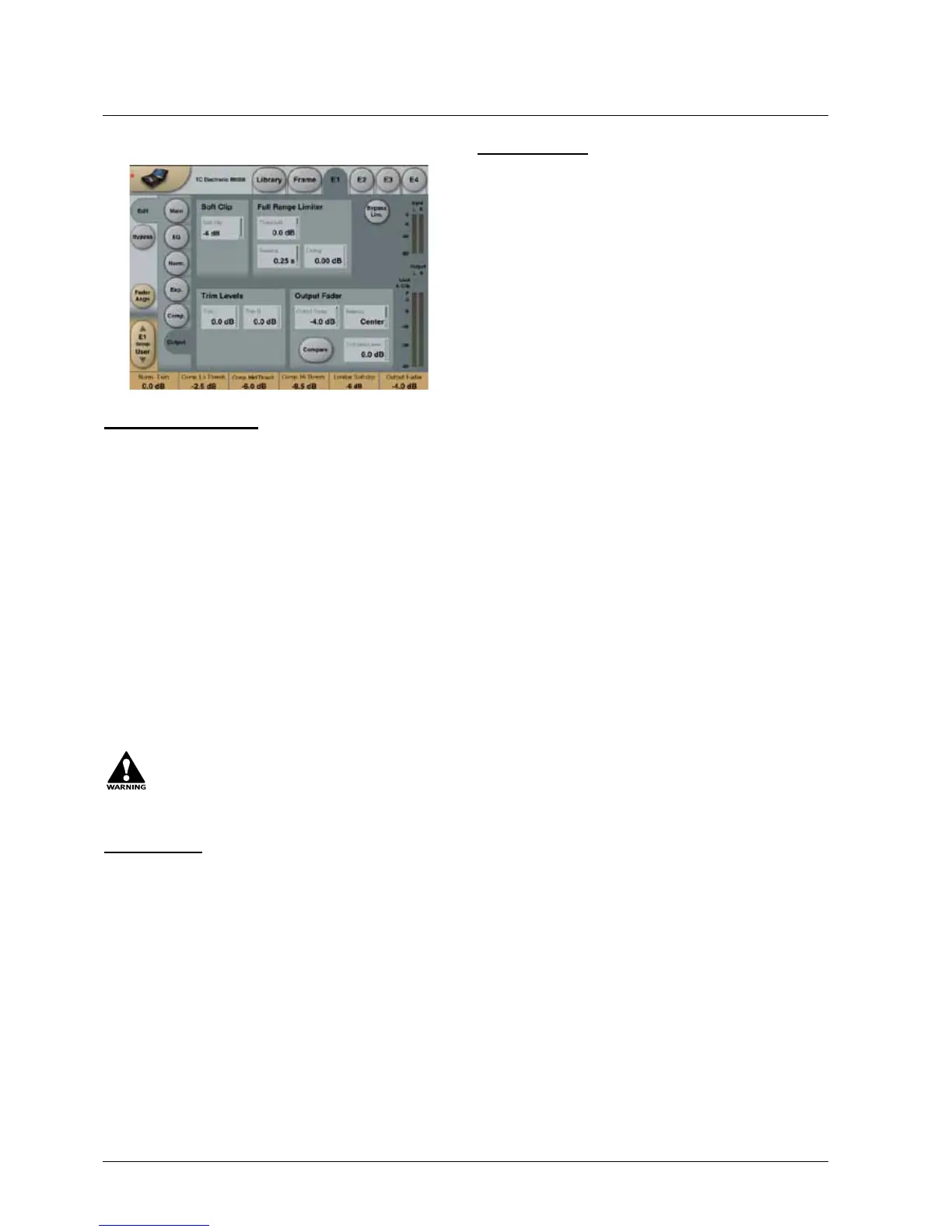

Output page
Full Range Limiter
Softclip
Range: -6dB to Off in 1dB steps.
Softclipper after the Compressor.
Thresholdisrelativeto0dBFS-nottotheRefLevel.
Threshold
Thresholdisrelativeto0dBFS-nottotheRefLevel.
Range: -12to+3dB
  -6to+3in0.1dBincrements
  -12to-6in0.5dBincrements
Release
Range: 20ms to 7sec
Release time for the Limiter.
Ceiling
Range: 0 to -0,10dB in 0.01dB steps.
Fine-tuningparametersettingtheCeilingfortheLimiter.
This parameter prevents the Output signal from
everexceedingtheadjustedThreshold.Itcan
beusedto“hide”overloadstodownstream
equipment, but it does not remove the distortion
associated with an over.
Trim Levels
Trim L
Range: 0 to -12dB in 0.1dB steps
Left channel Output level trim after the Compressor and
Output mode parameter (M/S) and before the Limiter
section.
Trim R
Range: 0 to -12dB in 0.1dB steps
Right channel Output level trim after the Compressor and
Output mode parameter (M/S) and before the Limiter
section.
Output Fader
Output Fader
Range:Offto0dB(<-40dB:in3dBsteps,>-40in0.5dBsteps)
Output fader for both Outputs.
Balance
Range: -6dBL to -6dBR
Changes the Output balance between the Left and Right
channel.
COMPARE key
Press to activate compare function.
Compare Level
Range: -20 to 0dB
Duetothedifferenceinlevel,“in-circuit”and“out-of-circuit”
comparisonsareoftendifficulttomakeusingtheBYPASS
key.UsetheCompareLevelparametertocompensate.
Bypass Lim.
Press to bypass the Limiter section.
