DElAy - 1
Delay
Left Delay
Range:0to2500ms
Sets the Delay time for the left side.
Right Delay
Range:0to2500ms
Sets the Delay time for the right side.
Hi Cut
Range:500Hztoflat
Hi Cut filter, shelving type. Provides an overall high
frequency roll-off (6dB per octave) that is well suited to
maketheDelayeffectsoundwarmer.
Hi Cut Att
Range: -40 to 0.0dB
The attenuation control sets the high frequency roll
determinedbyHiCutin0.5dBsteps.
Feedback
Feedback
Range:0to99%
SetscommonfeedbacklevelforleftandrightDelayOutput
in percent. It feeds the Delay Output for left and right
separatelytoitsownInputinordertomakerepeatable
stereo echo effects. The control is common for left and
right - but the signals are processed individually.
FB Lo Cut
Range: Off to 800Hz
CommonLoCutfiltercontrolforleftandrightfeedback.
FB Hi Cut
Range:1kHztooff
CommonHiCutfiltercontrolforleftandrightfeedback.
Levels
In Level
Range: -100 to 0dB
Controls the Input level of the algorithm.
Out Level
Range: -100 to 0dB
Controls the Output level of the algorithm.
This algorithm deriving from the M5000 is straight, 24
bit true Stereo Delay of up to 2.5 sec in each channel
with basic feedback control. The System 6000 imple-
mentation of Delay 1 can be used with sample rates of
up to 96kHz.

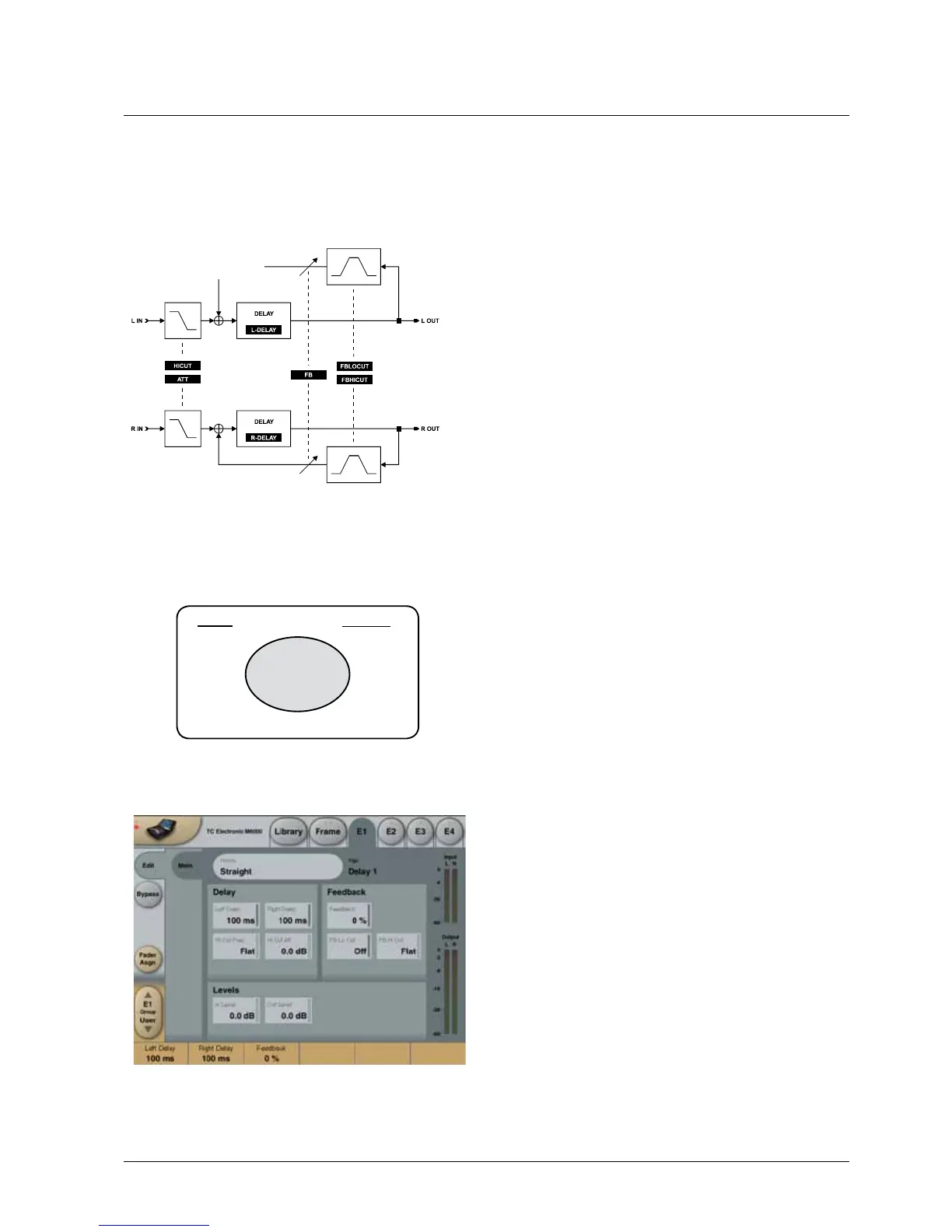

Block Diagram
The Delay - 1 algorithm occupies:
@ Normal Sample Rate : 1/4 DSP Resource
@ Double Sample Rate : 1/4 DSP Resource
Algorithm Inputs/Outputs are distributed as follows:
E1 - E4
L
R
L
R
INPUT
OUTPUT
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
