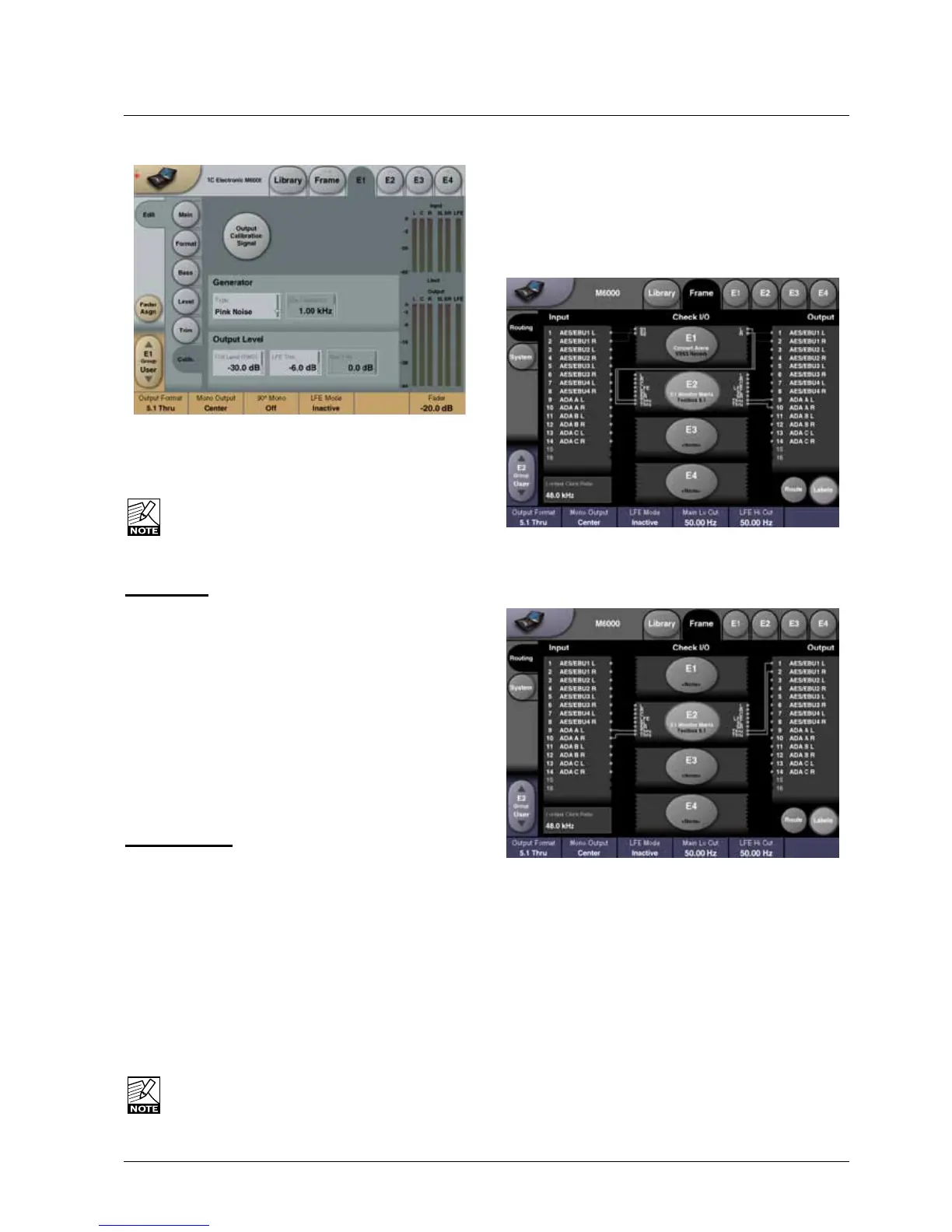

TOOlbOX - 5.1
Calibration Page
Test signal generator (Oscillator)
Toolbox-5.1integratesacomprehensivetest-signal
generator meant for aligning the monitor system.
When a Test signal is selected, the Input source will
not be present on the Outputs.
The Calibration tone is delivered on the very Input
of the Toolbox.
Generator
Type
Range: Sine,PinkNoise
WhiteNoise
  LPFPinkNoise(LowPassFilteredPinknoise),
  HPFPinkNoise(HiPassfilteredpinknoise)
This parameter selects the Signal generator type.
Default: Sine
Sine Frequency
Range:20Hzto20kHz
Selects the frequency when Osc. Type is set to Sine.
Default:1kHz
Output Level
Output Level (RMS)
Range: -60-0dBFS
-60 -> -6dB in 1dB steps
-6 -> 0dB in 0.1dB steps
Sets the level of the selected generator to all six Output
channels.
Default:-20dBFS
LFE Trim
Range: -12 - 0dB, in 0.1dB steps
AttenuatestheLFEOutputchannelrelativetothemain
test-generator level.
Thru-Thruchannelsare“hardwired”withoutany
adjustmentoptions.
Utilizing Thru Channels 7 and 8
Example 1
In this example we have the VSS™3 algorithm loaded in
Engine1andwewanttomonitortheOutputonbothdigital
and analog Outputs. The Outputs of the VSS™3 is routed
bothtotheAES/EBU1L/RandviatheToolboxThru
channels to the ADA A cards Left and Right Output.
Example 2
This is a very simple way of using the Thru channels of the
Toolbox for analog to digital conversion.
