2. General Description
16 IFU for Infinite 200 PRO No. 30052730 Rev. No. 1.6 2016-04
2.3.2 Injector Module Diagram

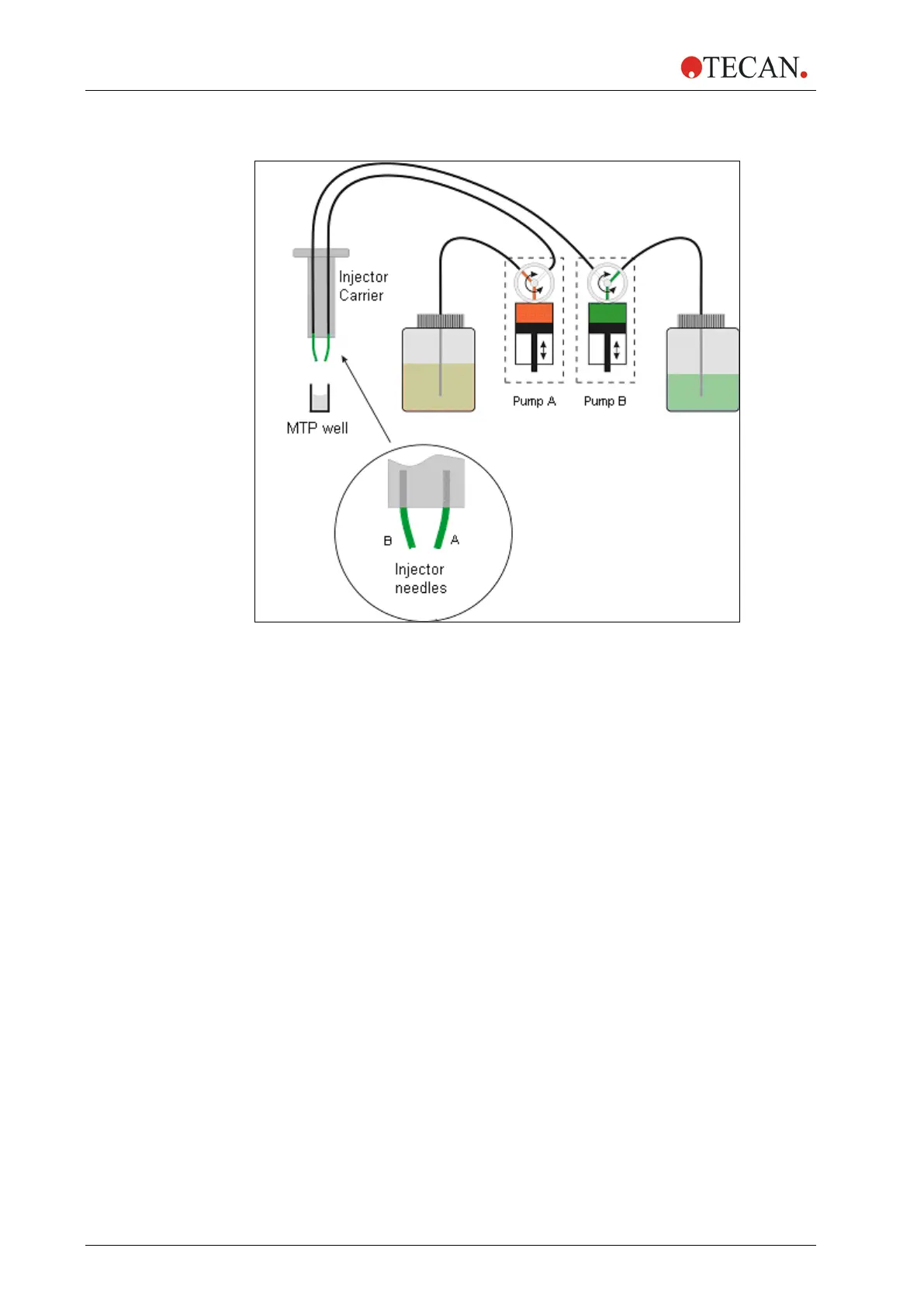

Figure 4: Schematic view of the injector module
2.3.3 Injector Pump Options
There are up to two pumps available for the Infinite 200 PRO (see Figure 4
above):
• Pump A feeds injector needle A
• Pump B feeds injector needle B
The Infinite 200 PRO can be equipped with one pump (pump A) or two pumps
(pumps A and B):
• One Injector Option (one pump): An Infinite 200 PRO equipped with one
pump allows injections in any SBS-conform microplate well types, in which
the well-size is equal to or larger than an SBS standard 384-well plate.
• Two Injector Option (two pumps): Some applications, such as flash
luminescence reactions or dual reporter gene assays require the injection of
two independent liquids into the same well; therefore, Tecan Austria offers a
two-injector option.
