Technicolor TD5130 Setup & User Guide

16
SETUP & USER GUIDE
Copyright © 2012 Technicolor. All rights reserved.
DMS-CTC-20120508-0000 v1.0.

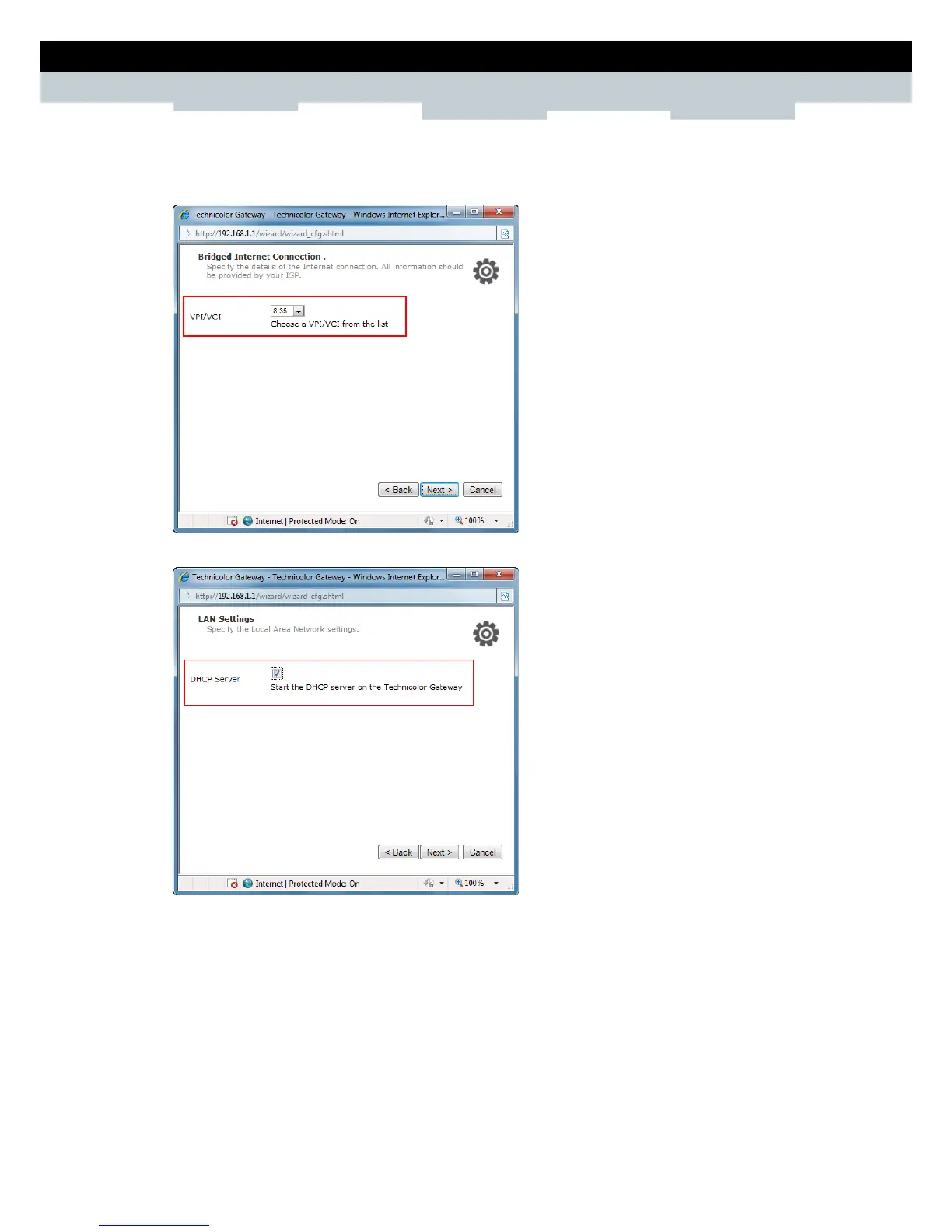

5 If you select, Bridge, do the following:
a Select the VPI/VCI, and then click Next.
b If your network is using a DHCP server, keep the DHCP Server box checked, if not, remove it.
c Click Next to continue. Then, skip to step 8.

Technicolor TD5130 Specifications

General

Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
ADSL Standards	ANSI T1.413 Issue 2
ADSL2 Standards	ITU G.992.3 (G.dmt.bis) Annex A
ADSL2+ Standards	ITU G.992.5 Annex A
Wireless	802.11b/g
Ethernet Ports	4 x 10/100
USB Ports	1 x USB 2.0
VoIP	No
Security	WEP, WPA, WPA2
