7.2. DISASSEMBLING THE CIRCUIT BOARDS OF THE
DISPLAY
7.2.1. LED VERSION

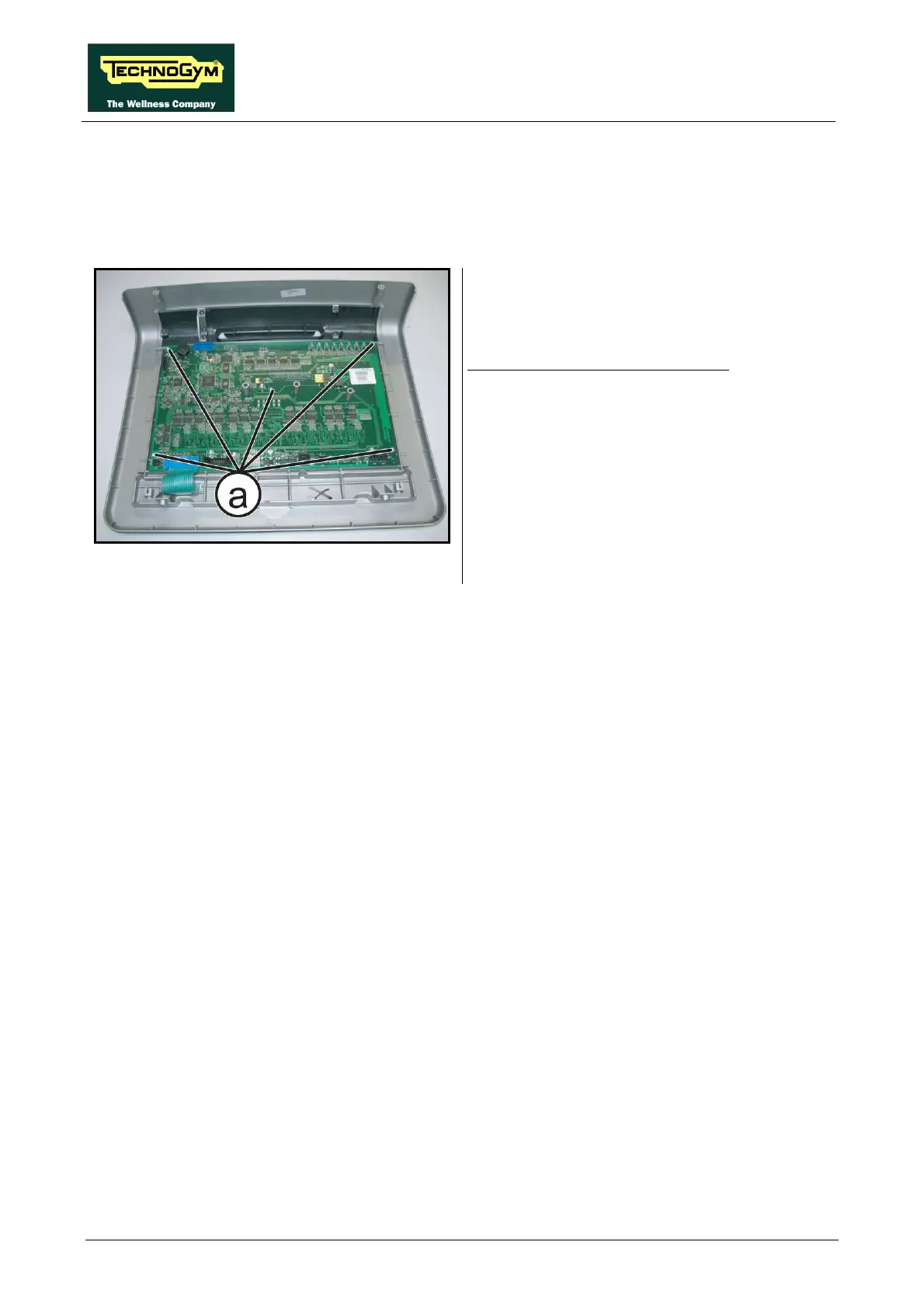

Figure7.2-1
Carry out the operations described in
paragraphs: 7.1. “Display disassembly”.
Place the display on a work bench.
1. Back off the 5 screws (a) with a medium
Phillips screwdriver and remove the Display
Board.
To reassemble the Display Board, carry out the
above steps in reverse order.
