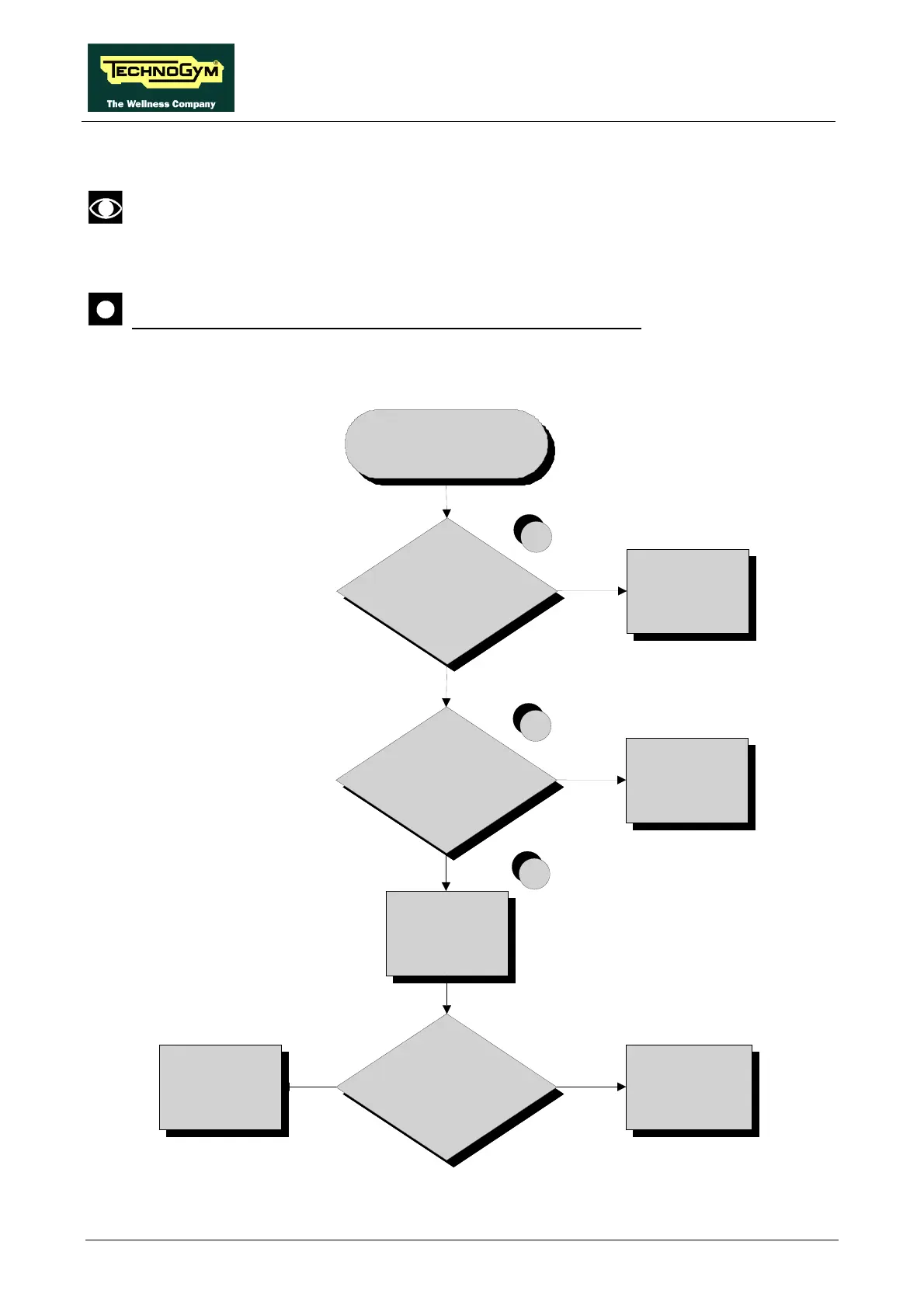

6.6. NO TV PICTURE
Check that the machine is connected to an antenna signal.
This error can be due to incorrect machine configuration, or to problems with the antenna signal.
NOTE ONLY FOR MODEL WITH STD TV ISDB-T (JAPAN): Before to carry out the
following troubleshooting, check that the B-CAS card is correctly inserted on the TV
Digital Board.
Is the TV standard correctly
conf igured?
Replace the CU160 cable.
Does it work?
Correctly conf igure the
"TV Standard"
parameter
Replace Digital TV
board
NO
NO TV PICTURE
NO
CU160 cable def ective
YES
Check the Antenna
signal
YES
2
Is the antenna cable properly
connected to the connector
board?
Connect the cable
NO
1
YES
3
To Next Page
