RUN EXCITE-2008: Service & Maintenance Manual - rev. 1.3
Page 8.6
8.5. THE MACHINE IS NOT FLAT
This problem may be due to the positioning of the machines on a not flat surface.
To level the machine, you may adjust the height of the levelling foot as illustrated below:

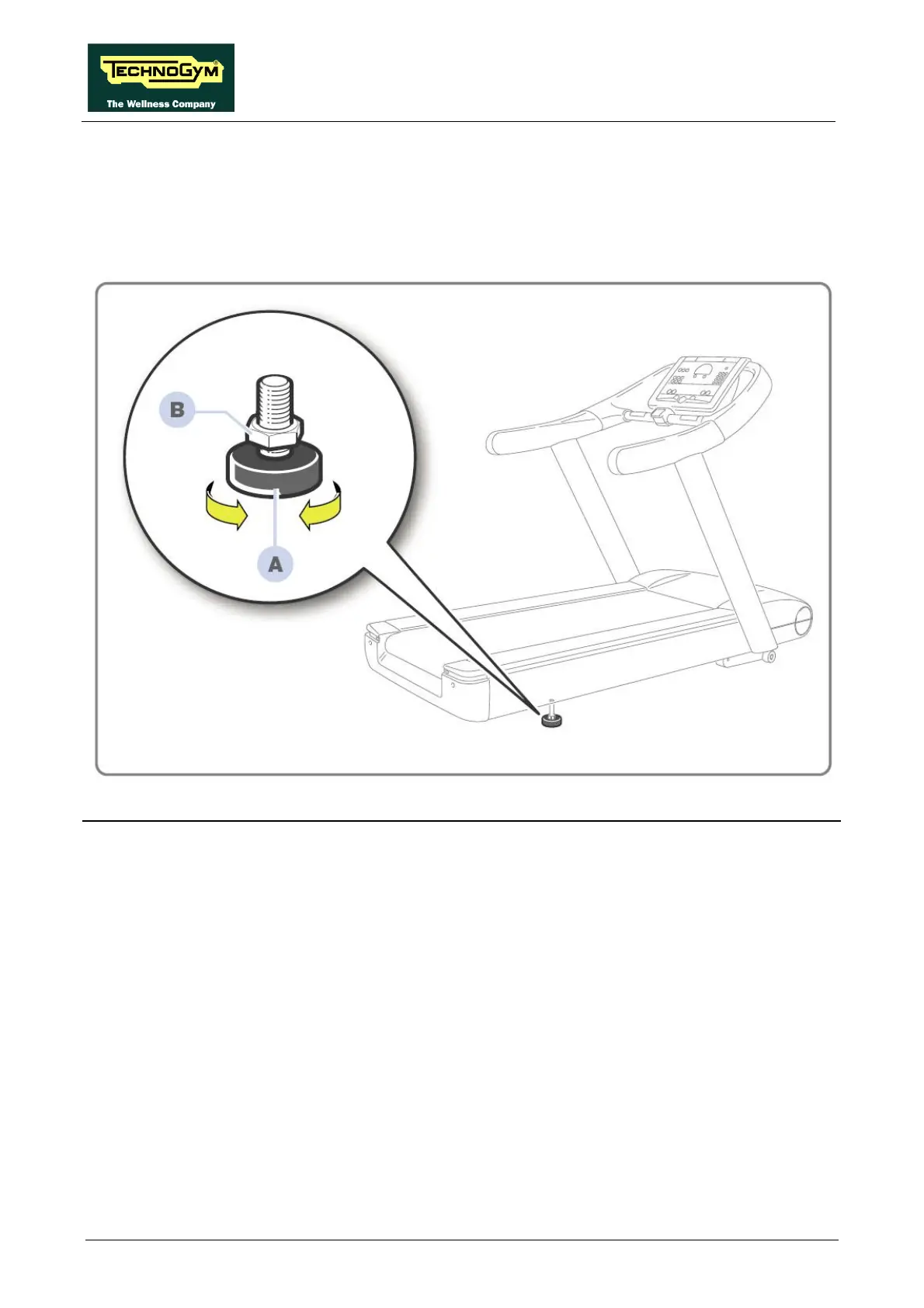

Figura 8.5-1
The equipment is levelled by adjusting the rear foot on the side shown in the illustration:
1. Screw the foot (a) in or out until the frame is in a stable position;
2. Thinten up the lock nut (b) after adjusting.
