RUN EXCITE-2008: Service & Maintenance Manual - rev. 1.3
Page 7.16
7.11. JOYSTICK DISASSEMBLY
Only fir 700 / 700E and 900 / 900E models.

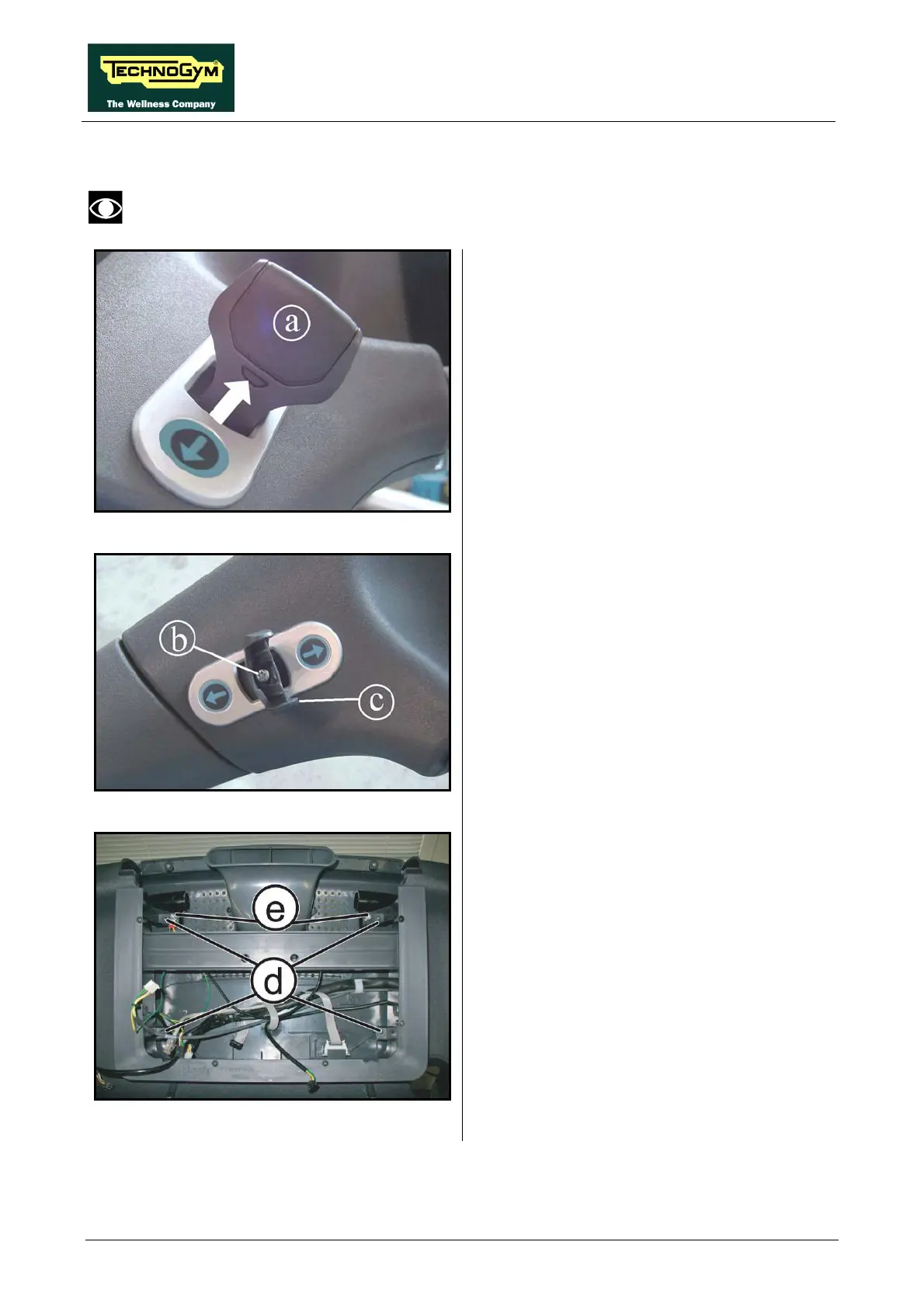

Figure7.11-1
1. Press on both sides of the joystick lever, at
the point indicated by the arrow, and pull
component (a) upward.
Figure7.11-2
2. Back off the screw (b) using a small Phillips
screwdriver.
3. Remove the joystick lever (c) by pulling
upward.
Figure7.11-3
Carry out the procedure described in
paragraph: 7.1. Display disassembly”.
4. Back off the 4 screws (d) using a m
edium
Phillips screwdriver.
5. Back off the 2 screws (e) using a 5mm
hexagonal wrench.
Continued on following page
→
