Technogym EXCITE Run 700 - Tread Belt Group and Motor Belt Disassembly

RUN EXCITE-2008: Service & Maintenance Manual - rev. 1.3
Page 7.34
7.21. TREAD BELT GROUP AND MOTOR BELT DISESSEMBLY
With these operations it is possible to disassemble:
• footrest;
• driving roller;
• tread belt motor drive-belt;
• running deck;
• driven roller;
• tread belt;
• shock absorbers.
In order to carry out these operations, it is necessary to slacken the tread-belt tension. If
the belt has to be used again, follow the instructions given in paragraph: 8.1. “Trade belt
tensioning” to correctly re-tension the tread belt.

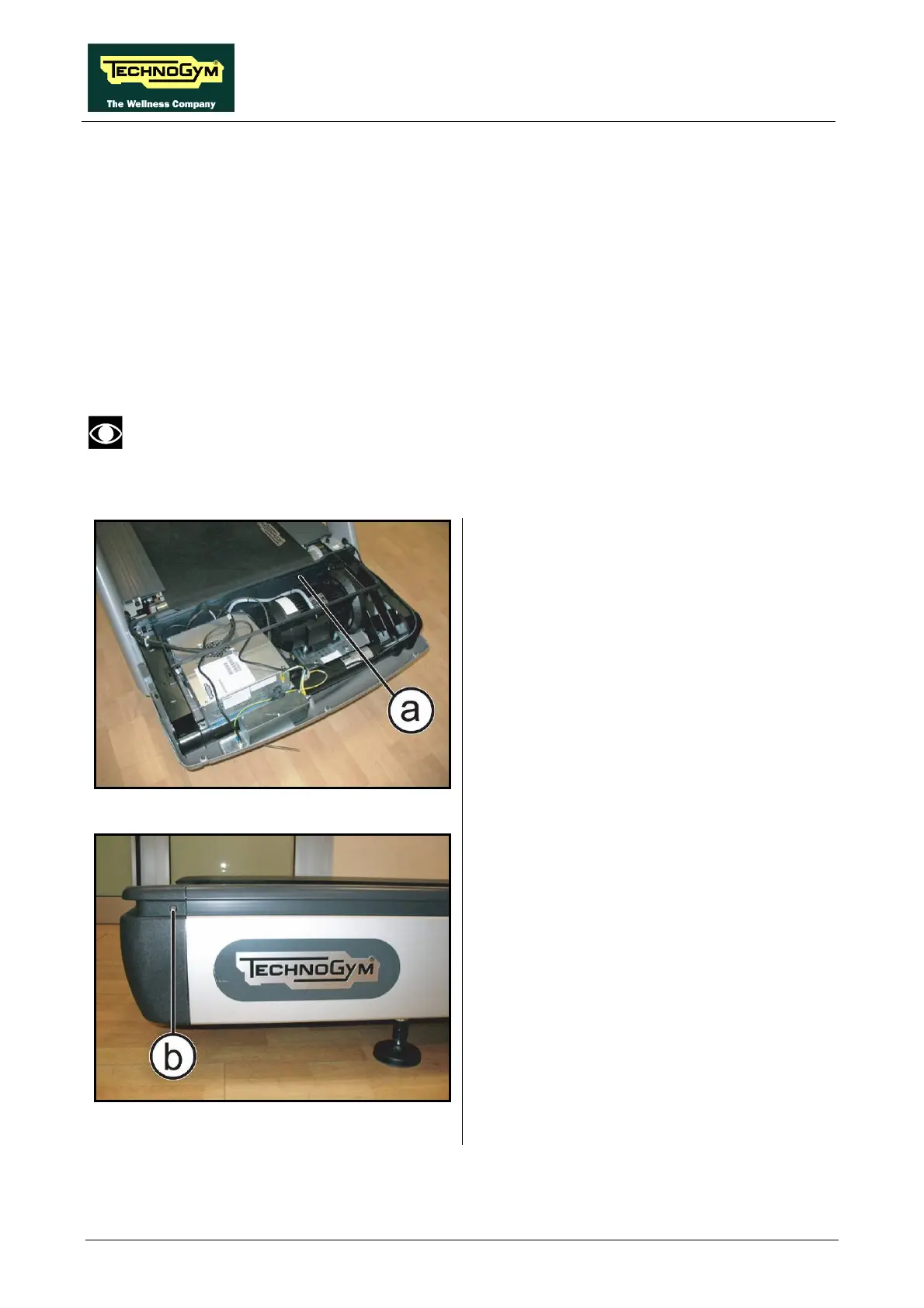

Figure7.21-1
Carry out the procedure described in
paragraph: 7.12. Motor guard disassembly”,
just to remove the upper guard.
1. Remove the dust guard (a).
Figure7.21-2
2. Loosen the 2 screws (b) (one on each side)
using a 4mm hexagonal wrench.
Continued on following page →
