RUN EXCITE-2008: Service & Maintenance Manual - rev. 1.3
Page 7.7

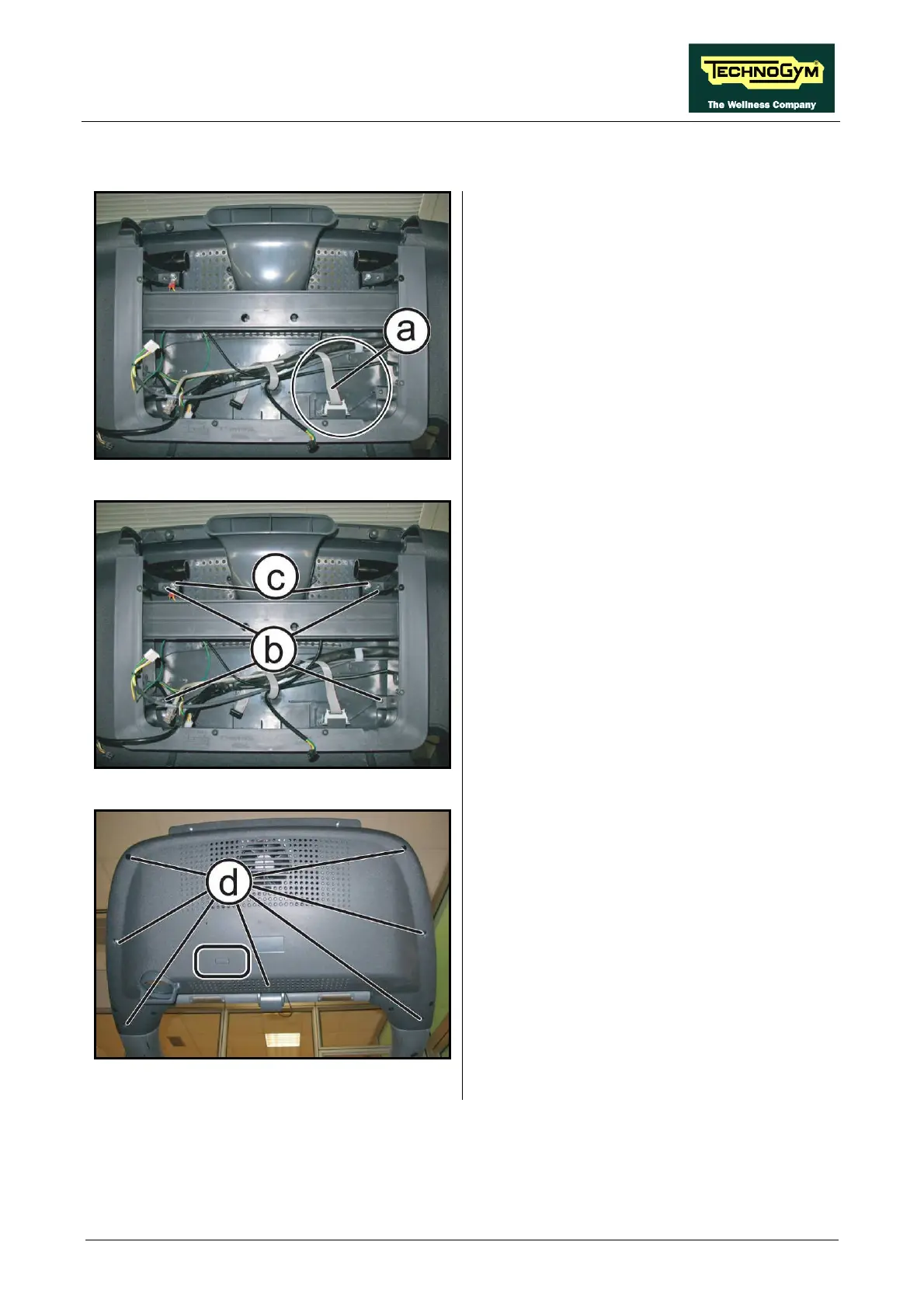

7.3. C-SAFE BOARD DISASSEMBLY
Figure7.3-1
Carry out the operations described in
paragraphs: 7.1. “Display disassembly”.
1. Disconnect the serial cable (a) from C-Safe
board highlighted in the figure.
Figure7.3-2
2. Back off the 4 screws (b) with a medium
Phillips screwdriver, witch fining the che
frontal structure.
3. back off the 2 screws (c), with a 6mm
hexagonal wrench.
Figure7.3-3
4. Back off the 7 screws (d) with a medium
Phillips screwdriver.
5. Remove the display front support.
6. Remove the C-Safe board from the display
rearsupport, highlighted in the figure on left
side.
To reassemble the C-Safe board, carry out the
above steps in reverse order.
