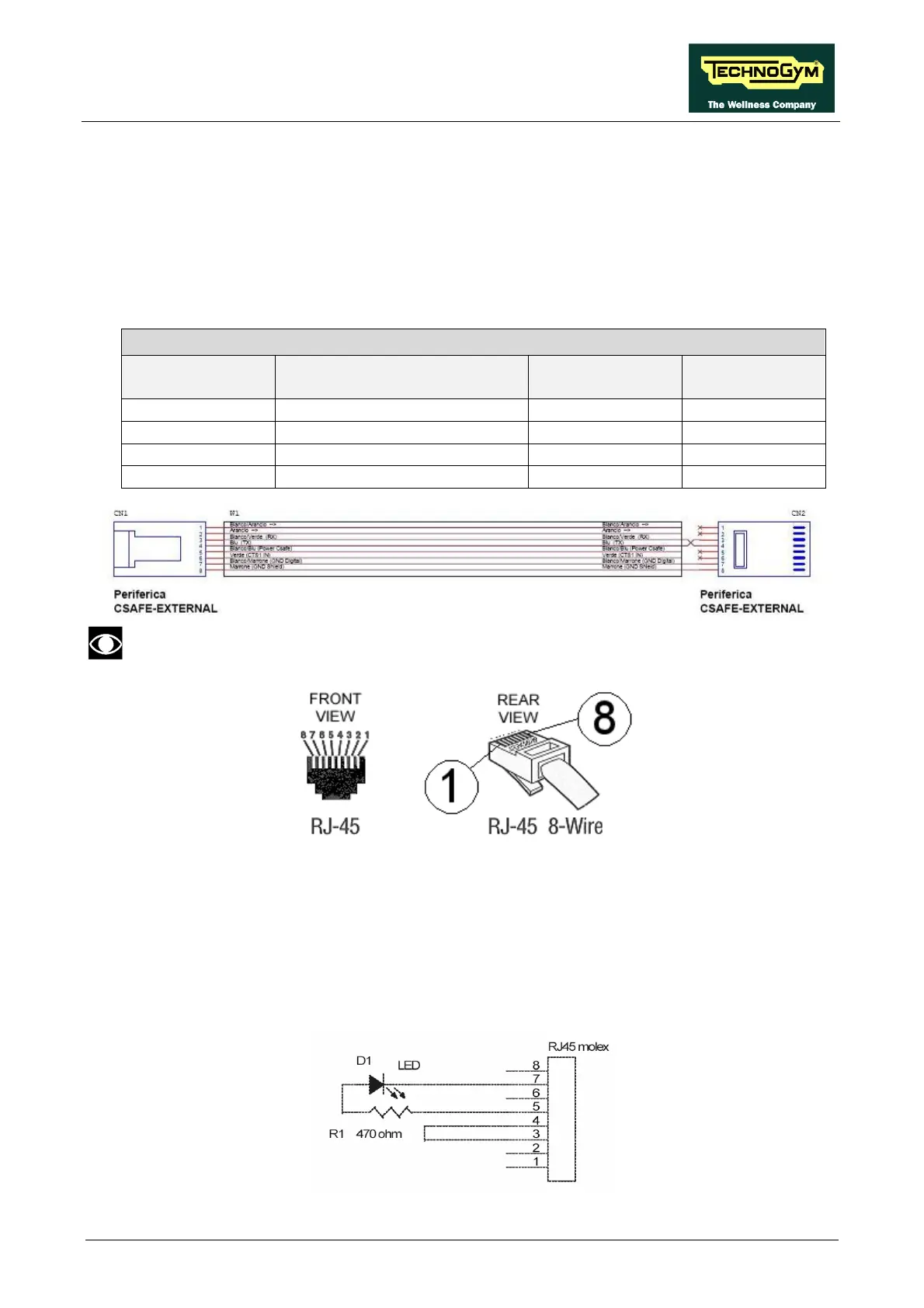

4.3. CABLE FOR EXCHANGING TV CHANNEL TUNING DATA
BETWEEN TWO MACHINES
The connection between two machines for transferring the TV channel tuning data is effected via a
special cable, connected to the RJ45 connectors of the CSafe boards.
The cable to use (code 0WC00644AA) must be wired as follows:
Cable
CSafe board
RJ45
Signal Color
CSafe board
RJ45
3 Tx White 4
4 Rx Brown 3
7 Digital Ground Green 7
8 Shield Ground Yellow 8
ATTENTION: for the numbering of the pins, on RJ45 connector, please refer to the
diagram below:
4.4. MONITOR PLUG FOR CSAFE PORT
When the plug code 0WC00639AA is fitted into any one of the CSafe ports on the machine, the
corresponding LED should illuminate to indicate the presence of the 5 Vdc supply on the port.
During the CSafe port test function, the plug connects the transmit channel directly to the receive
channel, thereby producing a positive test outcome if the port is functioning correctly.
