RUN EXCITE-2008: Service & Maintenance Manual - rev. 1.3
Page 7.35

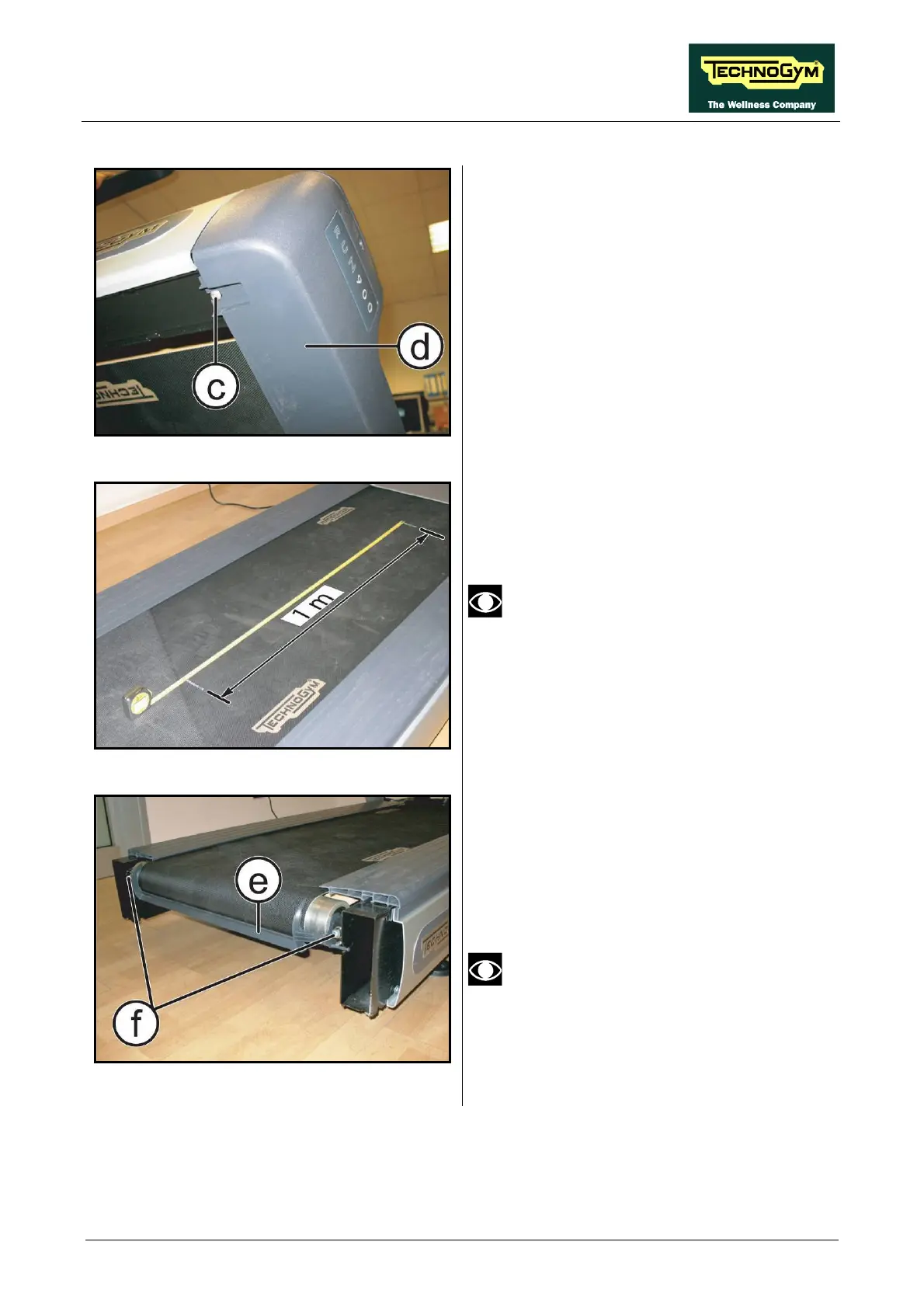

Figure7.21-3
3. back off the 2 screws (c) (one on each side)
with a 4mm hexagonal wrench.
4. Remove the rear plug (d).
Figure7.21-4
Before loosen the tension of the trade
belt, make two reference marks spaced
exactly 1 meter apart, so you can then
properly tension it again.
Figure7.21-5
5. Remove the plastic protection (e).
6. Loosen the trade belt tension, backing off the
2 bolts (f) with a 8mm hexagonal wrench.
Take care that the roller is always
approximately parallel with the one on
the front, to counteract the tension
exerted by the belt on the roller
bearings.
Continued on following page
→
