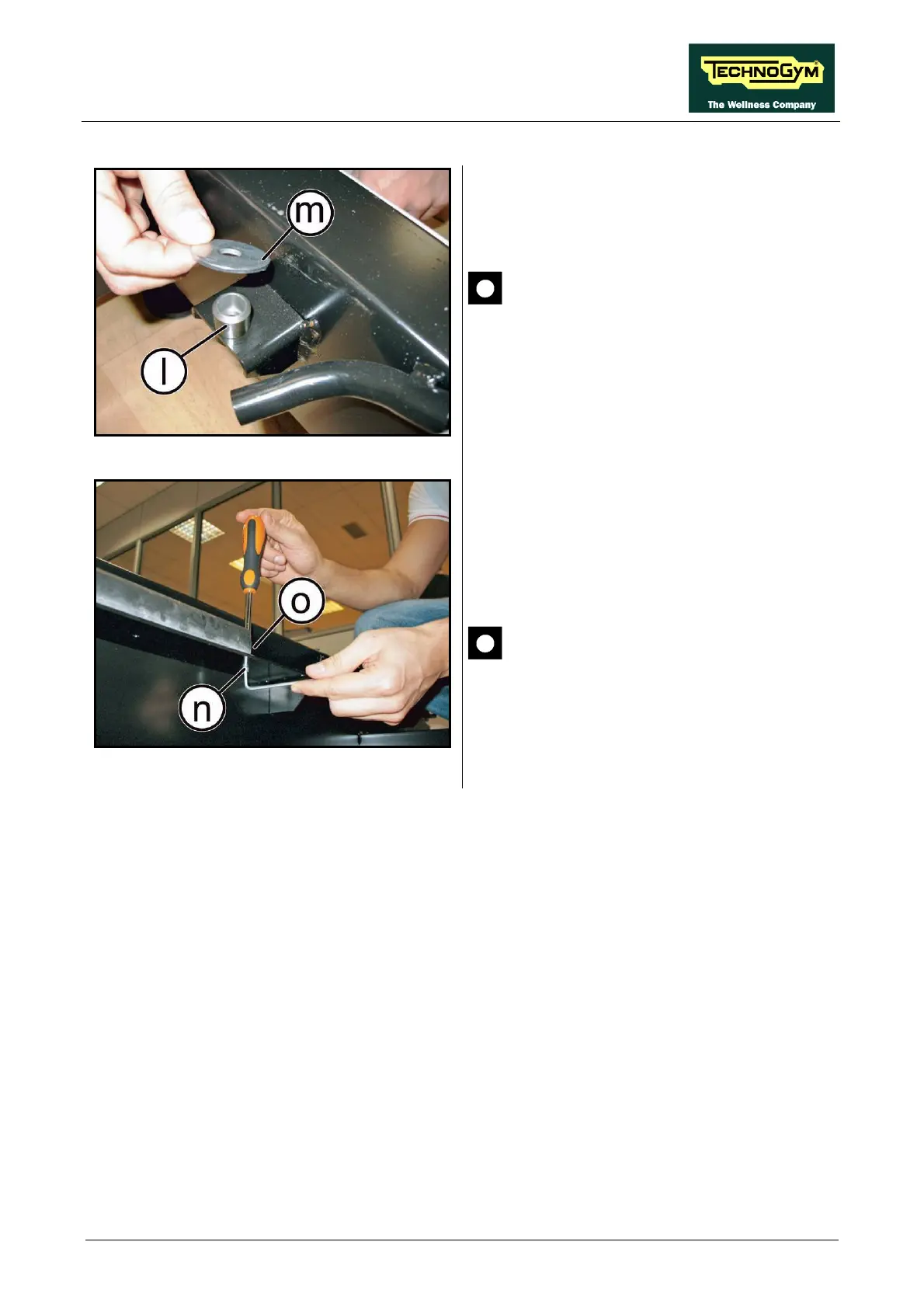

Figure 7.21-13
ATTENTION: When reassembling the
running deck, remember to insert the
bushing (l) and the washer (m) on the
rear supports, as shown in the figure.
Figure 7.21-14
18. Back off the 2 screws (n) which are fixing
the shock absorbers to the frame with a 4mm
hexagonal wrench, locking the nut (o) with a
7mm wrench, as shown in the figure.
ATTENTION: Insert again the spacers,
during the reassembly
To reassemble the various components, carry out
the above steps in reverse order.
