7. DISASSEMBLY OF COMPONENTS
7.1. DISASSEMBLING THE DISPLAY

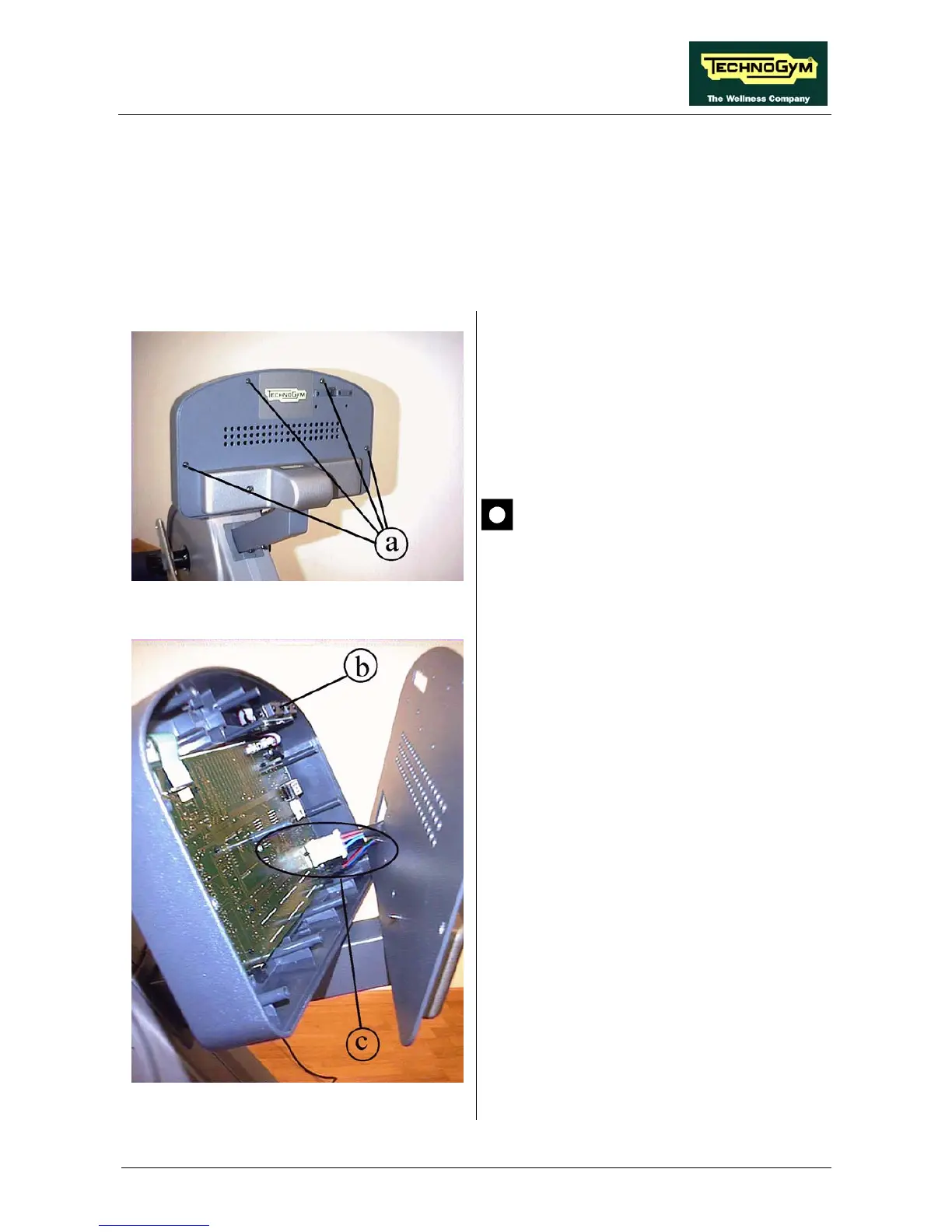

Figure 7.1-1
1. Turn off the machine and unplug the mains
lead from the wall output.
2. Remove the 4 screws a using a large Phillips
screwdriver.
Support the DISPLAY before removing
the last screw.
Figure 7.1-2
3. Open the DISPLAY taking care to the RJ45-
RS232 board b.
To remove the DISPLAY:
4. Disconnect connectors c.
5. Remove the DISPLAY.
To reassemble the DISPLAY, carry out the
above steps in reverse order.
Page 7.1
