TOP 600 XTPRO: Service & Maintenance Manual - rev. 2.0
Page 8.2
8.2. BELT TENSION

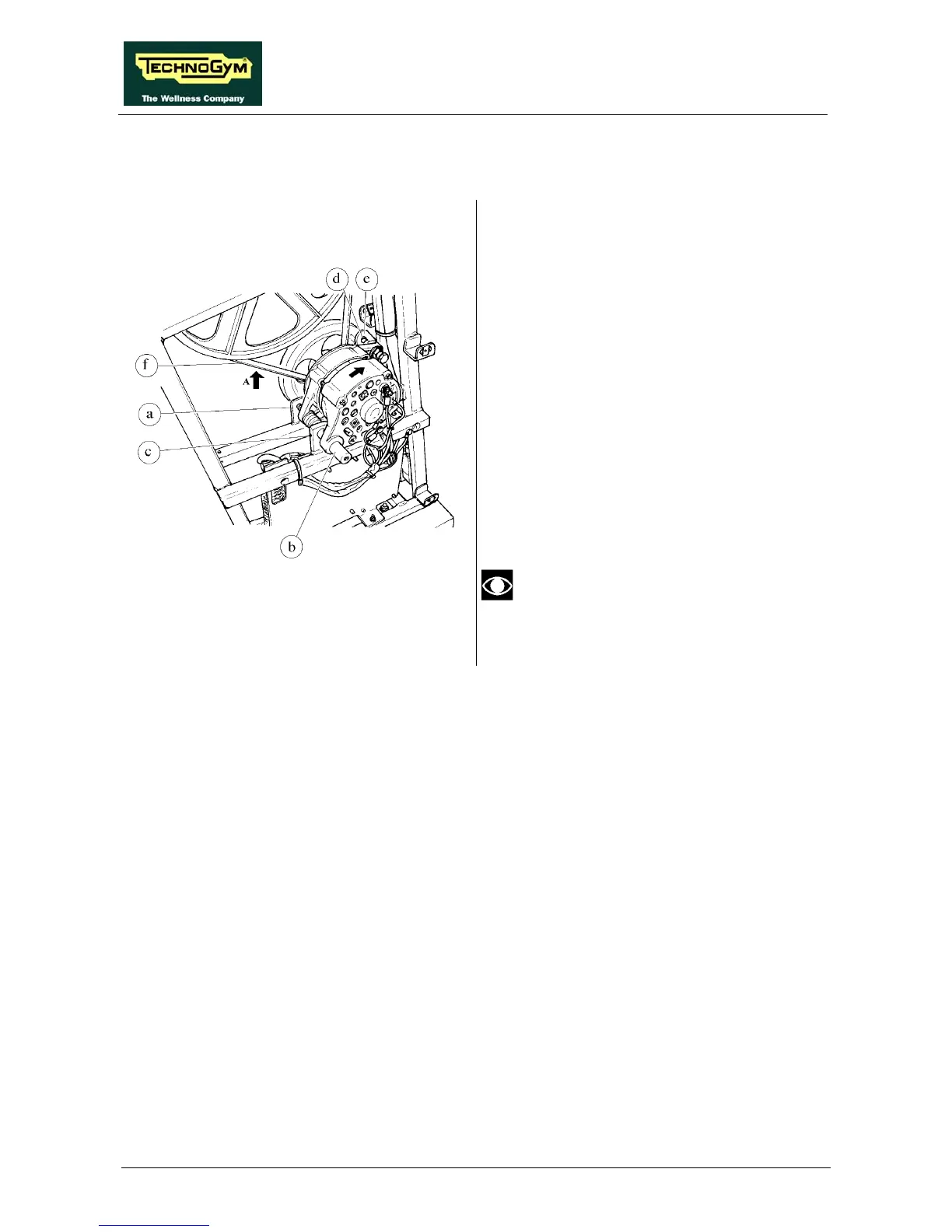

Figure 8.2-1
Carry out the procedures described in paragraph
7.6. “Disassembling the right and left side
casings”.
1. Loosen lock nut a of alternator pin b using a
19-mm wrench.
2. Back off dowel c of alternator pin b using a
4-mm hex T wrench.
3. Back off nut d of the belt tension rod e using
a 17-mm wrench.
4. Rotate the alternator on pin b in such a way
that, at point A, belt f has a vertical play of
approximately 1 cm.
5. After completing the adjustment, lock down
what previously backed off.
After completing this procedure, check
the belt alignment as described in
paragraph 8.1. .
