Technogym Top 600 XTPRO - Disassembling the Right and Left Side Casings

TOP 600 XTPRO: Service & Maintenance Manual - rev. 2.0
Page 7.6
7.6. DISASSEMBLING THE RIGHT AND LEFT SIDE CASINGS

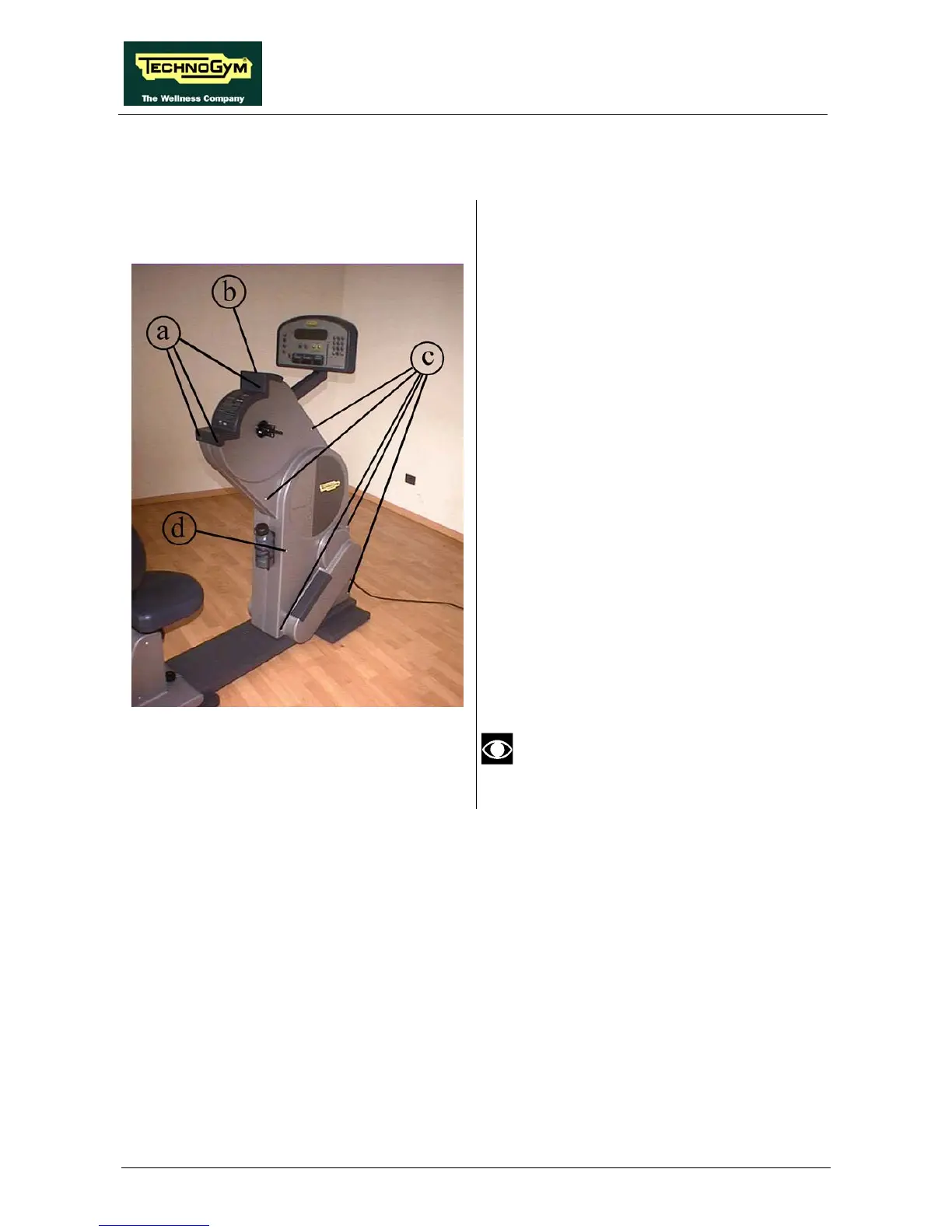

Figure 7.6-1
Carry out the procedure described in paragraph
7.5. “Disassembling the arms”.
1. Remove the 4 screws a which secure the
lexan instruction panel b, using a large
Phillips screwdriver.
2. Remove the lexan instruction panel b.
3. Remove the 5 self-tapping screws c which
fix the LEFT GUARD to the frame, using a
large Phillips screwdriver.
4. Remove screw d using a large Phillips
screwdriver, while using another large
Phillips screwdriver to hold the opposing
screw on the RIGHT GUARD in place.
5. Remove the LEFT GUARD.
6. Unscrew the 5 self-tapping screws which fix
the RIGHT GUARD to the frame, using a
large Phillips screwdriver.
7. Remove the RIGHT GUARD.
To reassemble the GUARDS, carry out the
above steps in reverse order.
It is also possible to disassemble only
one of the 2 GUARDS.
