TOP 600 XTPRO: Service & Maintenance Manual - rev. 2.0
7.5. DISASSEMBLING THE ARMS

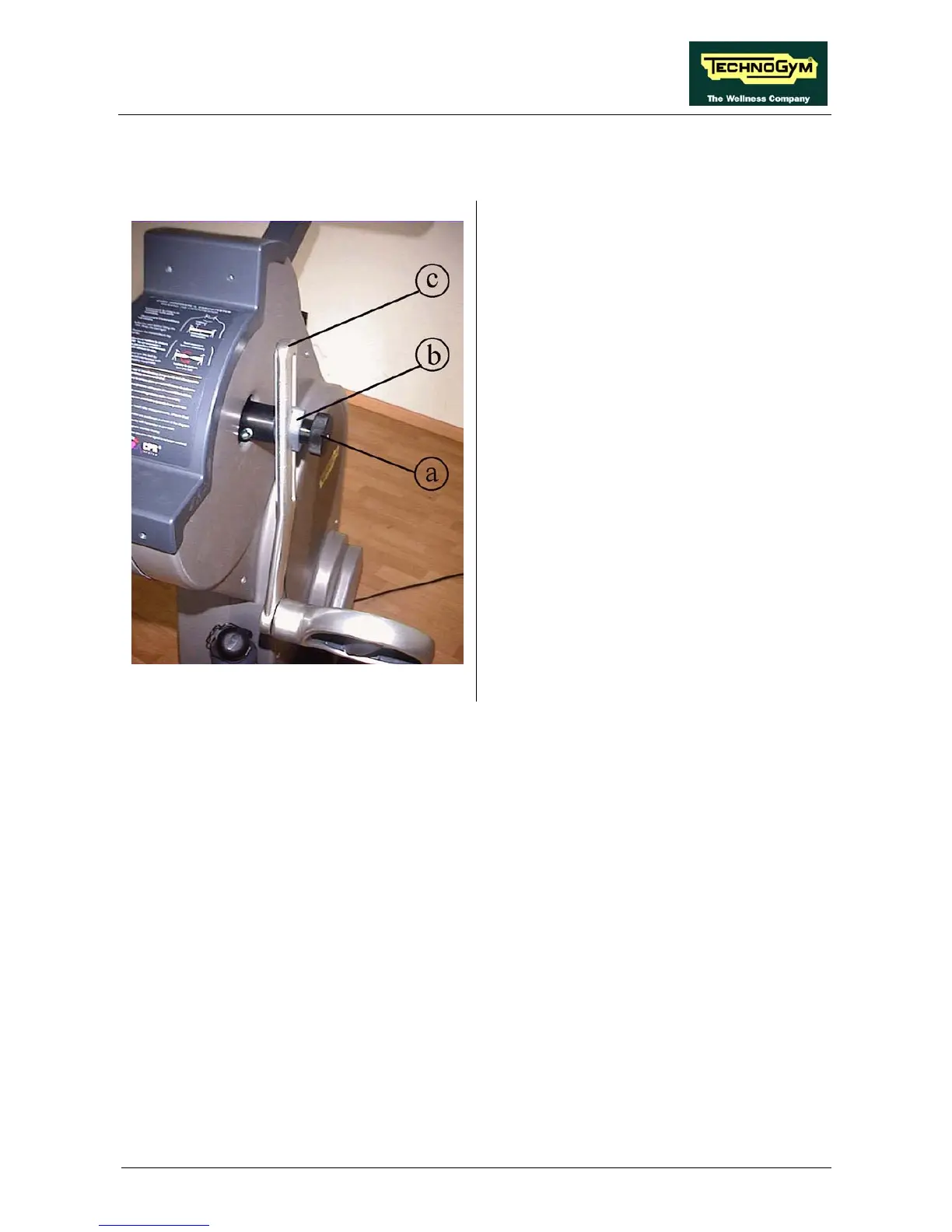

Figure 7.5-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
On both sides of the machine:
2. Unscrew knob a.
3. Unscrew the self-locking nut which is
underneath the knob a with a 17-mm wrench.
4. Remove the compensating ring.
5. Remove block b.
6. Remove lever c.
To reassemble the LEVERS, carry out the above
steps in reverse order.
Page 7.5
