7.13. DISASSEMBLING THE PRIMARY SHAFT

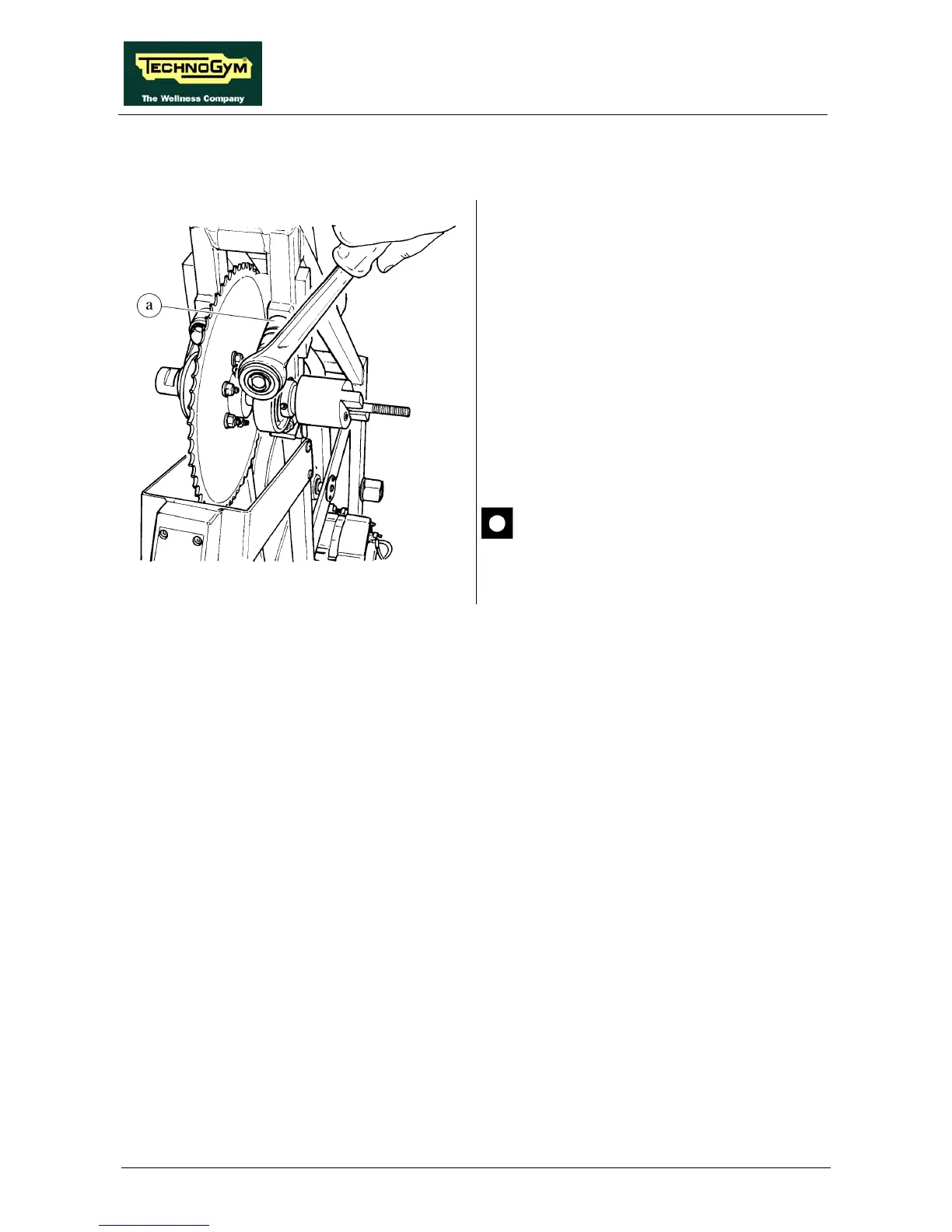

Figure 7.13-1
Carry out the procedures described in paragraph
7.6. “Disassembling the right and left side
casings”.
1. Disengage the chain from the PRIMARY
SHAFT sprocket by opening the dummy
link.
2. Unscrew the 4 screws a with a 17-mm
wrench.
3. Disassemble the PRIMARY SHAFT.
To reassemble the PRIMARY SHAFT, carry out
the above steps in reverse order.
After completing the procedure, adjust
the alignment and tension of the belt as
instructed in paragraphs 8.1. and 8.2.
