TOP 600 XTPRO: Service & Maintenance Manual - rev. 2.0
Page 12.6
12.1.4. DISASSEMBLING THE LOWER CASING

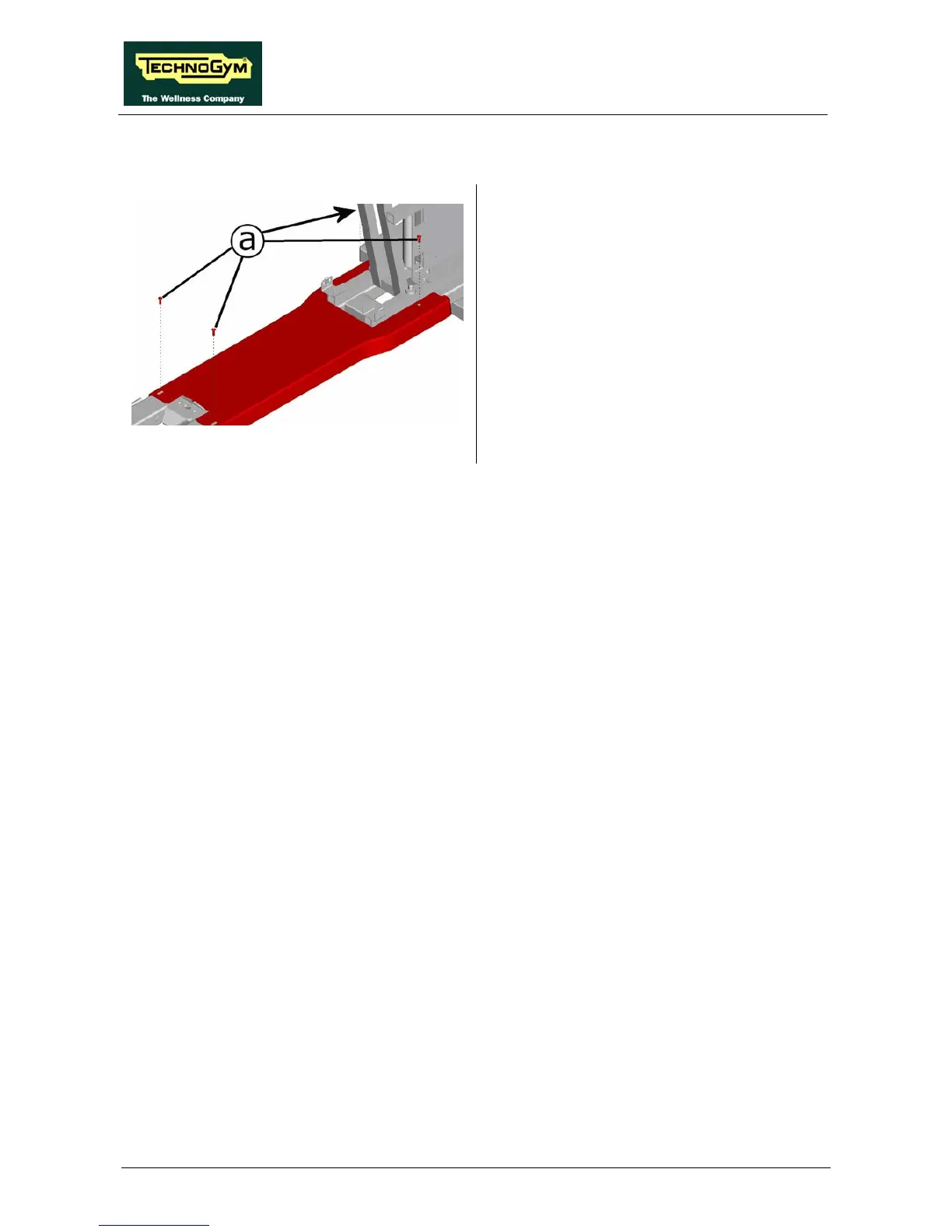

Figure 12.1.4-1
Carry out the procedure described in paragraph
7.6. “Disassembling the right and left side
casings”.
1. Separate the seat assembly from the machine.
2. Back off the 4 screws a using a large Phillips
screwdriver.
3. Remove the lower casing.
To reassemble the lower casing, carry out the
above steps in reverse order.
